Left Side Wire Harness, Rear Window Defogger Ground Wire (2-Door)




Connector and Harness Locations

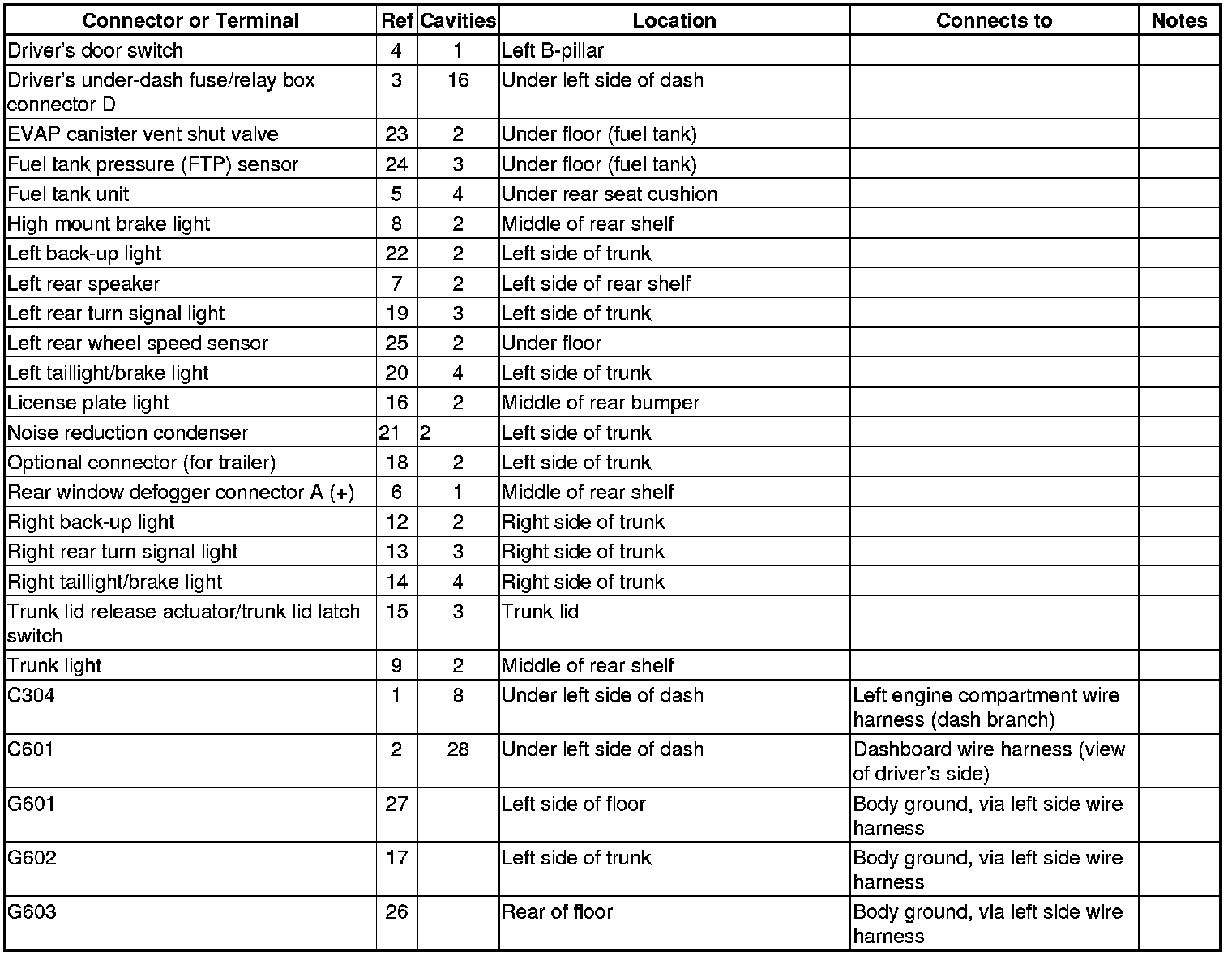

Left Side Wire Harness (2-door)

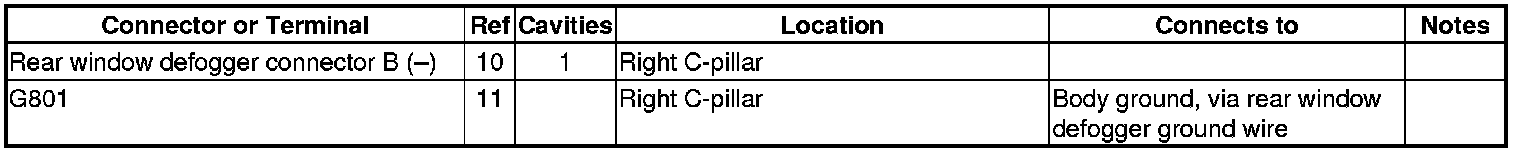

Rear Window Defogger Ground Wire (2-door)

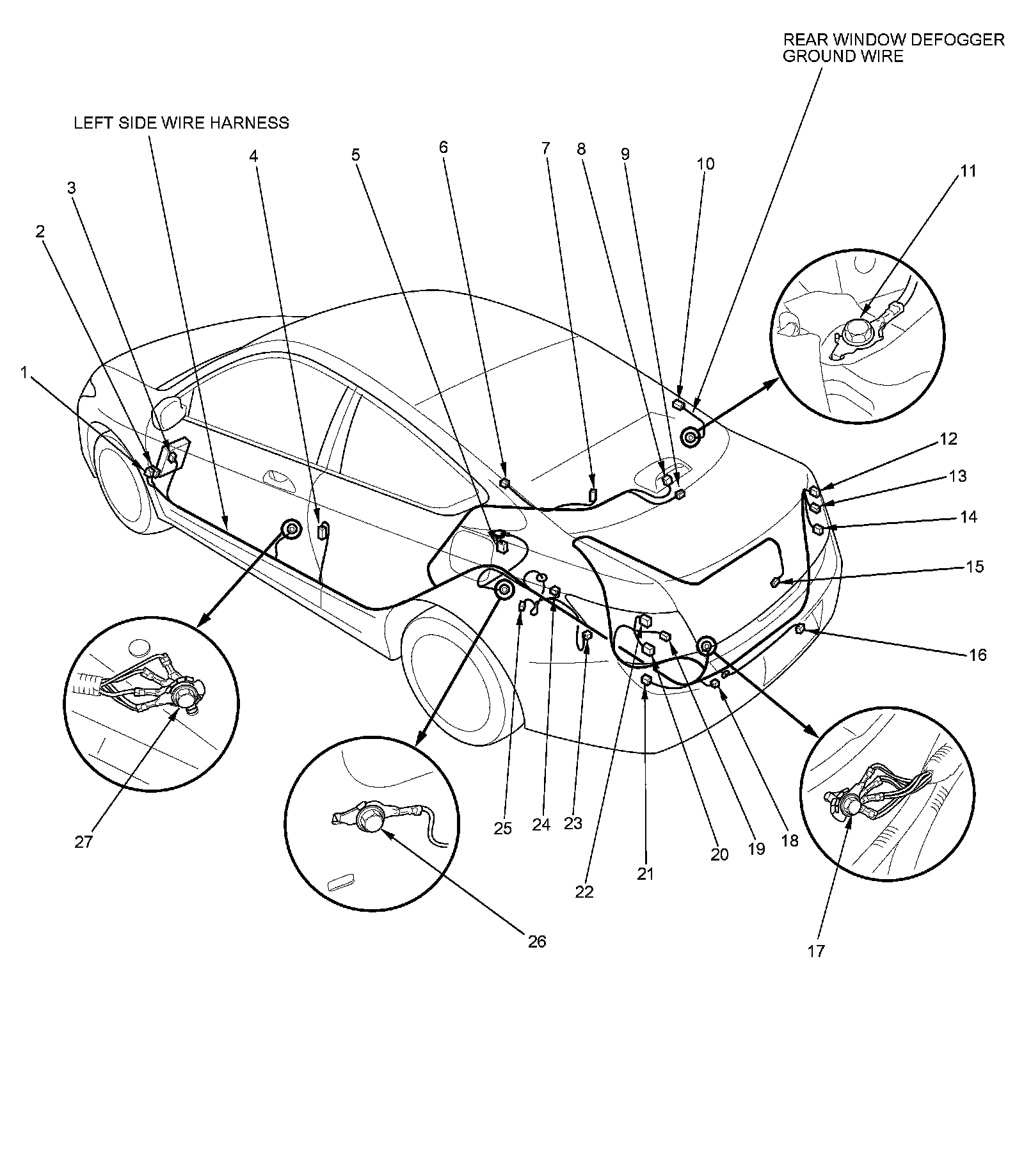

Harness View
