Right Side Wire Harness, ANC Rear Microphone Subharness (2-Door)
Connector and Harness Locations

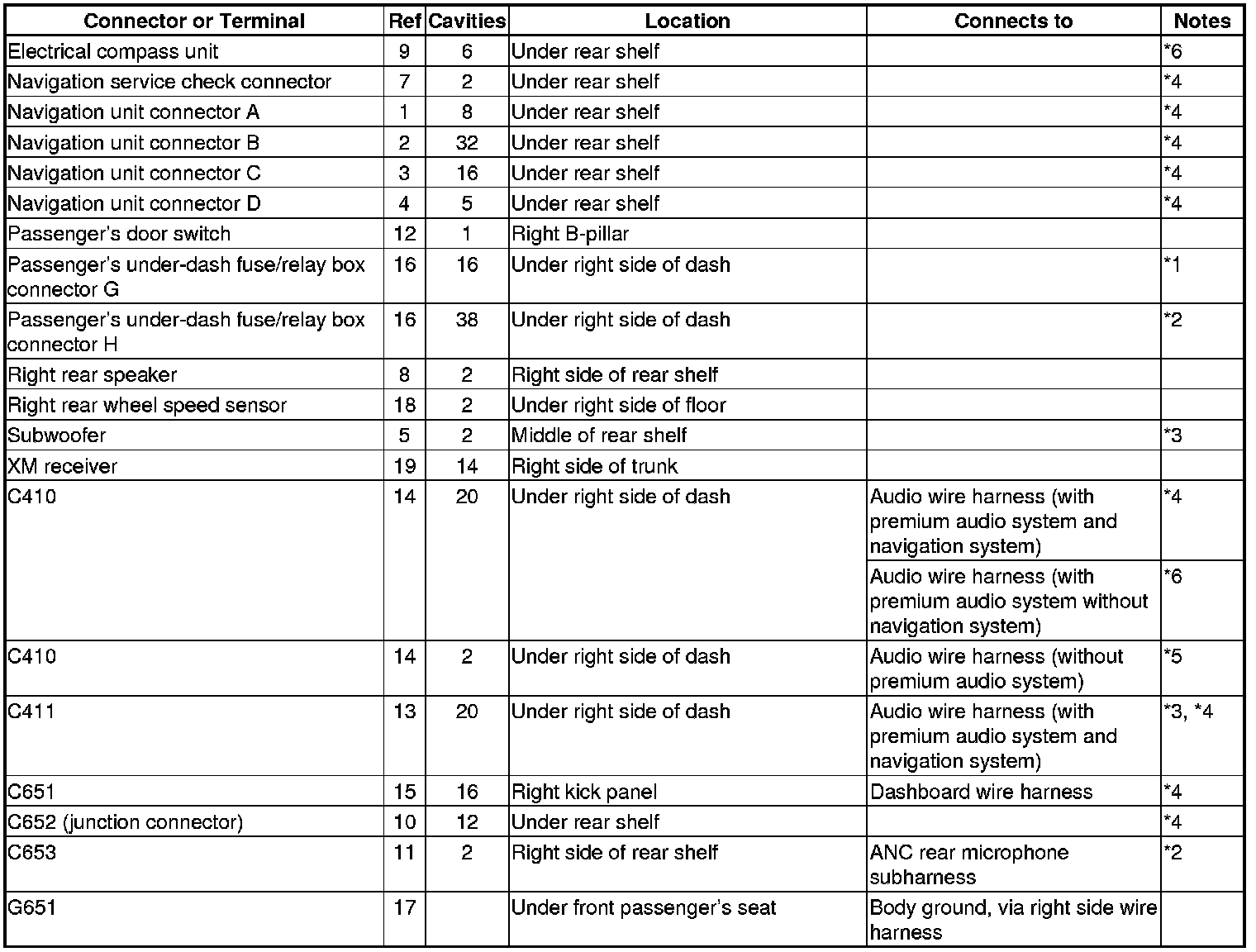

Right Side Wire Harness (2-door)

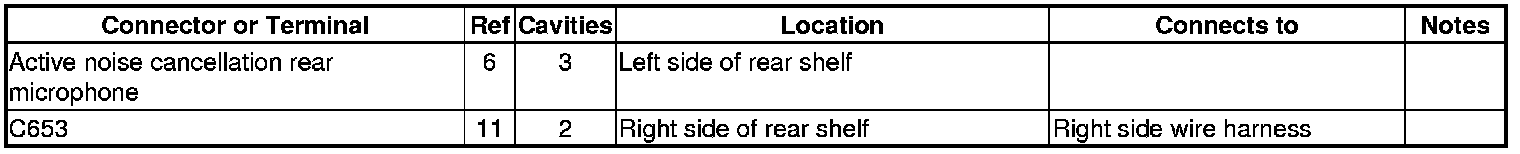

ANC Rear Microphone Subharness (2-door) (Except LX, LX PZEV)

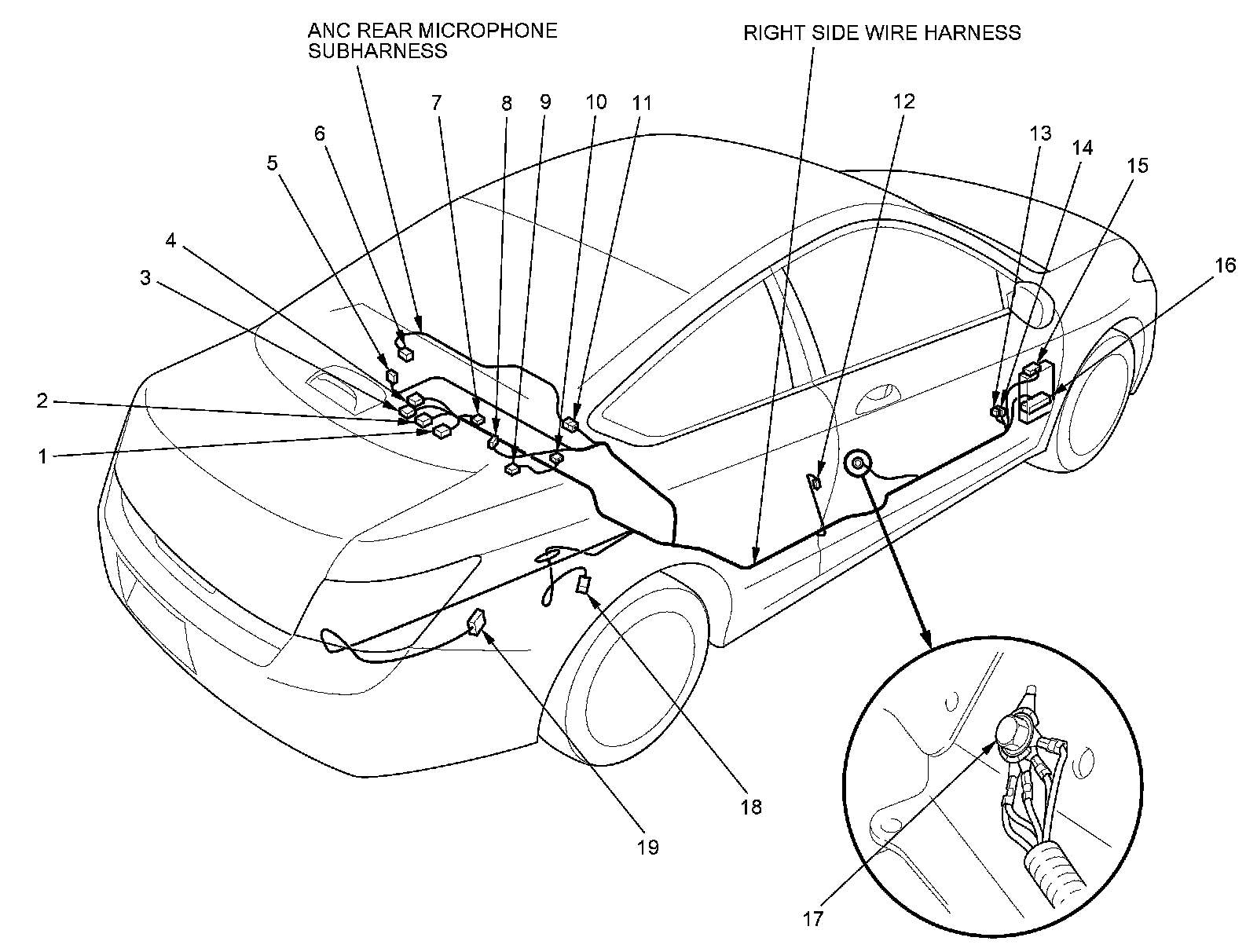

Harness View
Connector and Harness Locations
Right Side Wire Harness (2-door)
ANC Rear Microphone Subharness (2-door) (Except LX, LX PZEV)
Harness View
