Roof Wire Harness, Moonroof Subharness
Roof Wire Harness, Moonroof Subharness
Connector and Harness Locations

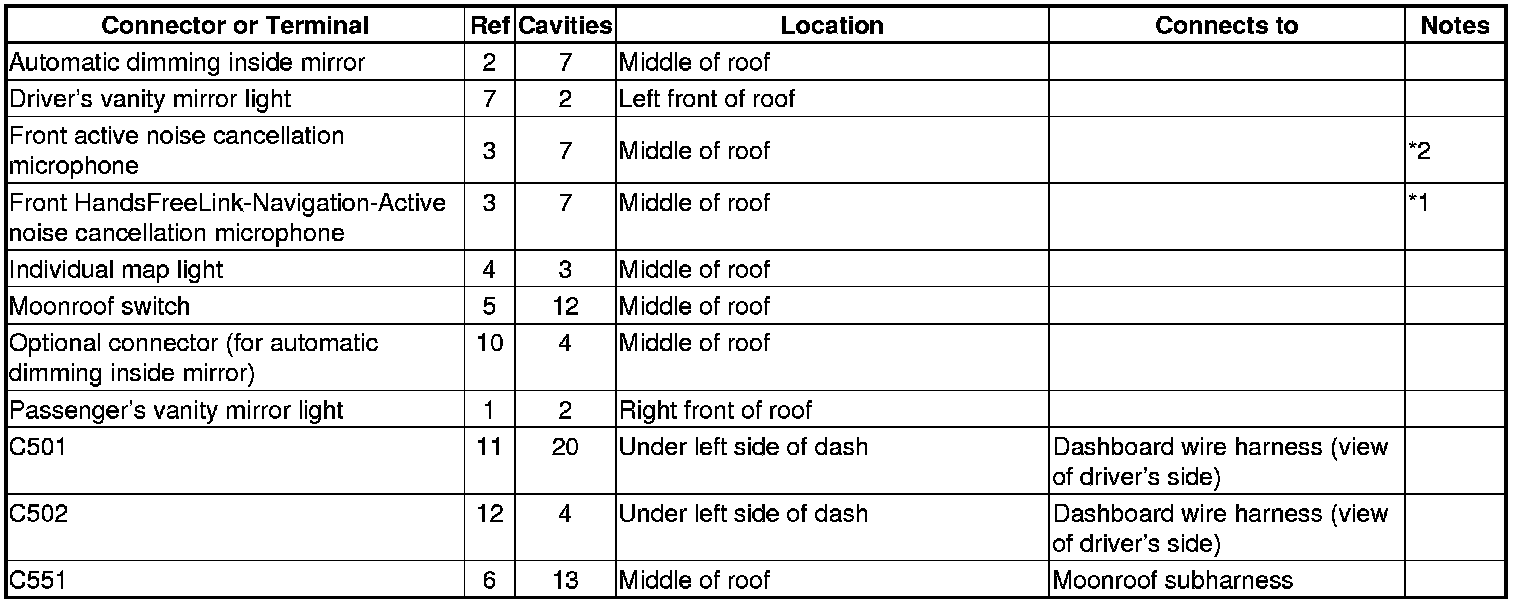

Roof Wire Harness (With moonroof)

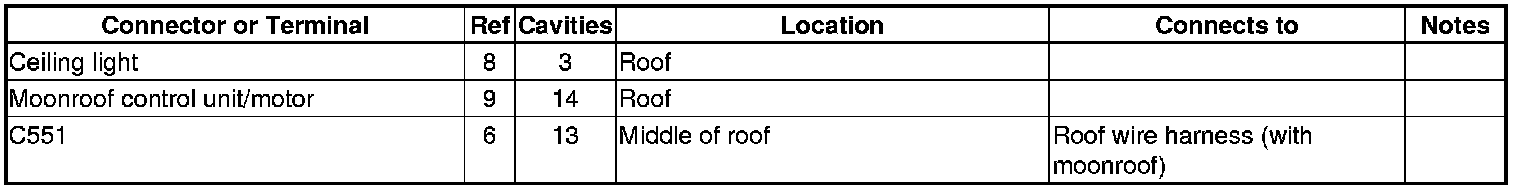

Moonroof Subharness
Harness View
