SRS Floor Wire Harness (4-Door)
SRS Floor Wire Harness (4-Door)

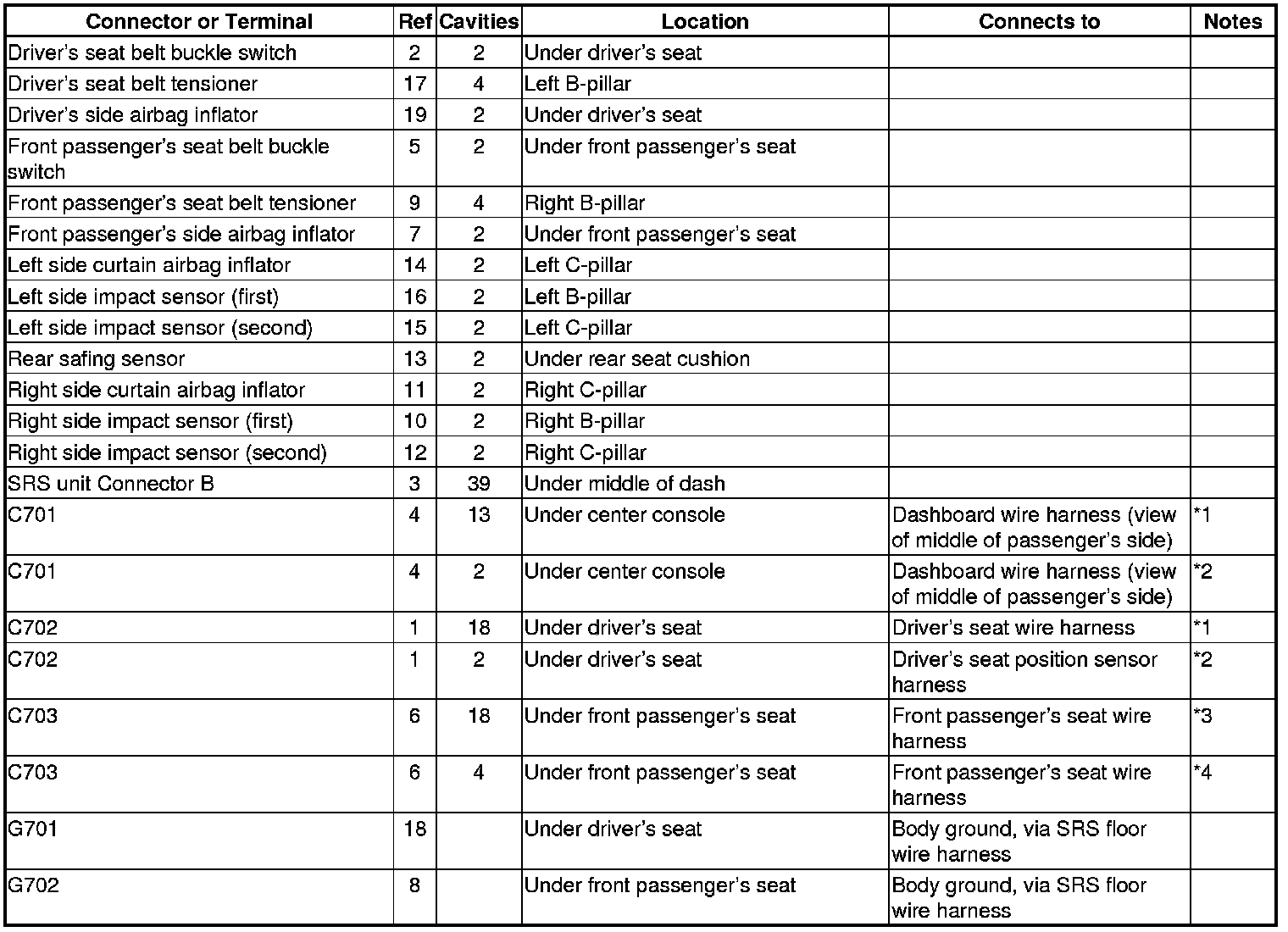

Connector and Harness Locations
SRS Floor Wire Harness (4-door)
Harness View
