Audio Wire Harness (Without Premium Audio System and Navigation System)

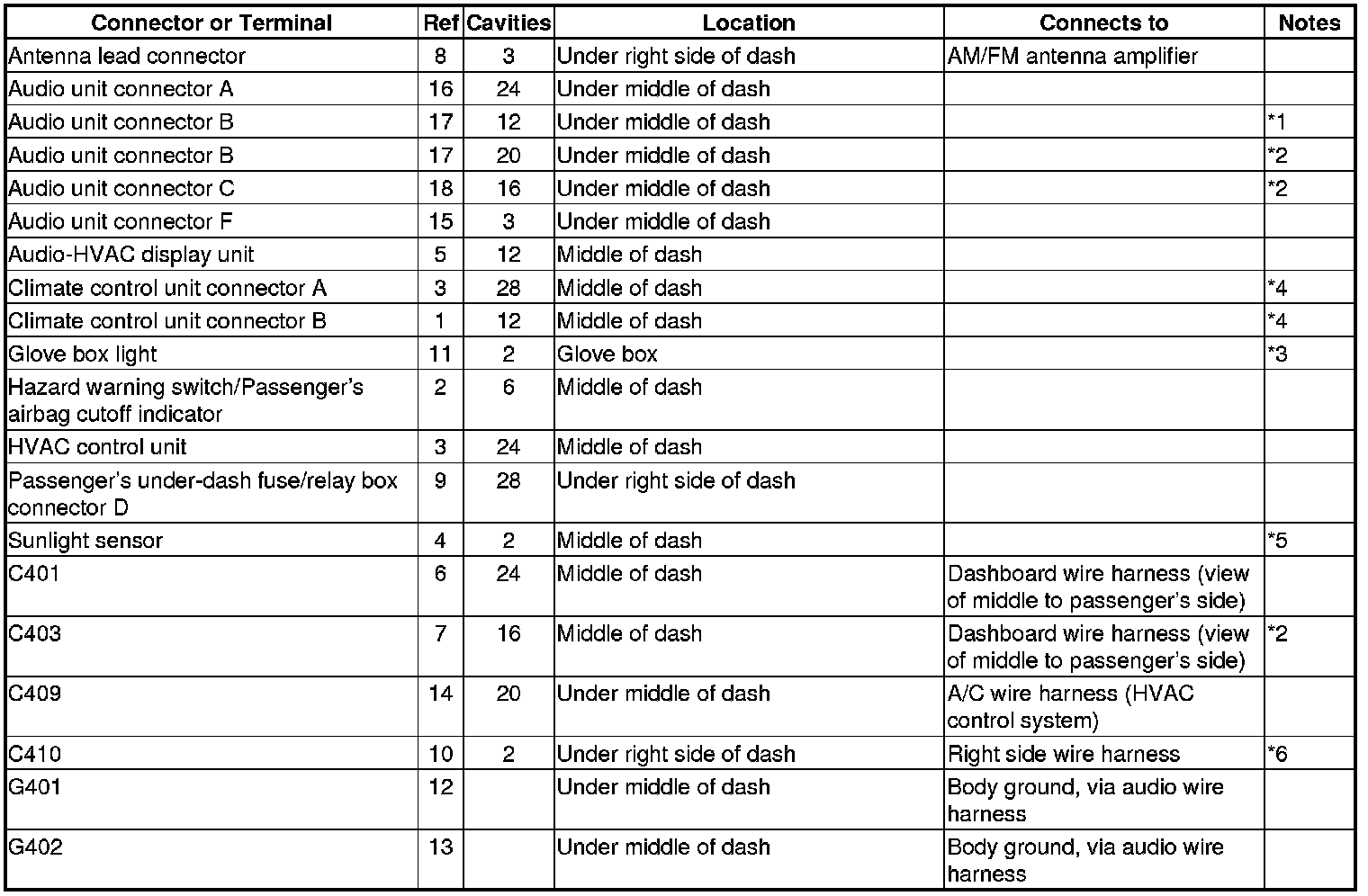

Connector and Harness Locations

Audio Wire Harness (Without Premium Audio System and Navigation System)

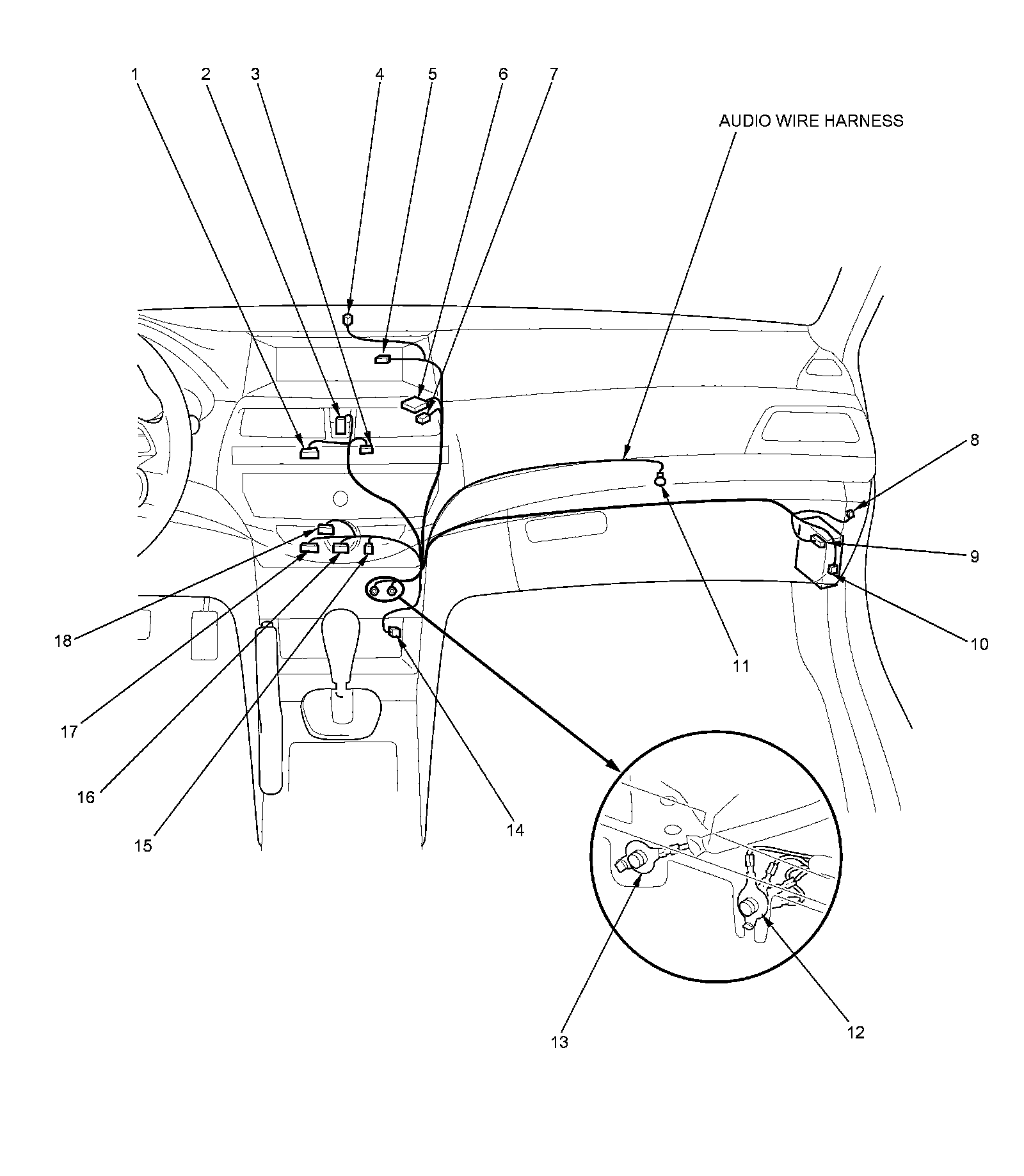

Harness View
