Relay and Control Unit Locations - Seat
Relay and Control Unit Locations - Seat
Relay and Control Unit Locations - Seat

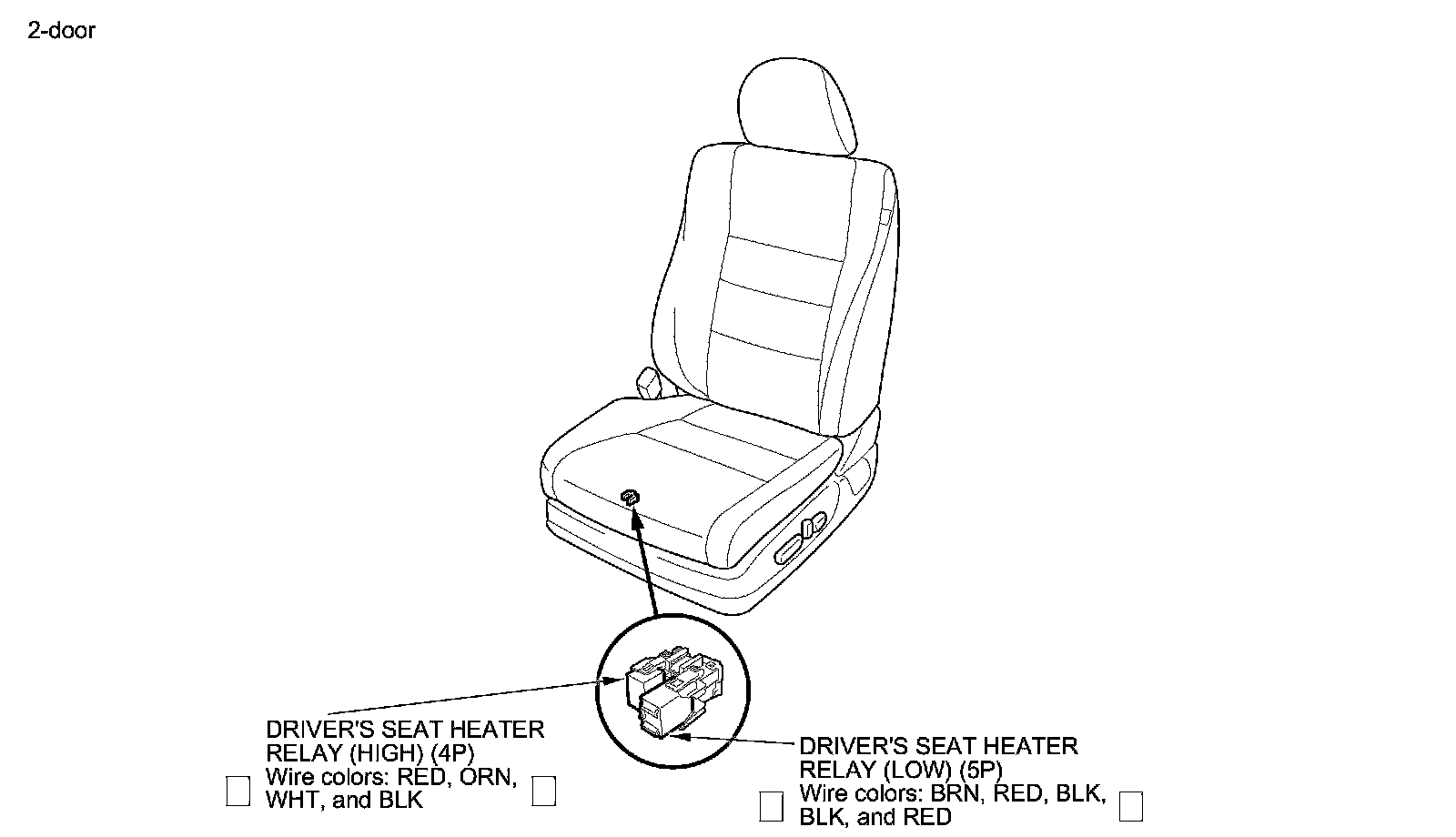

Driver's seat

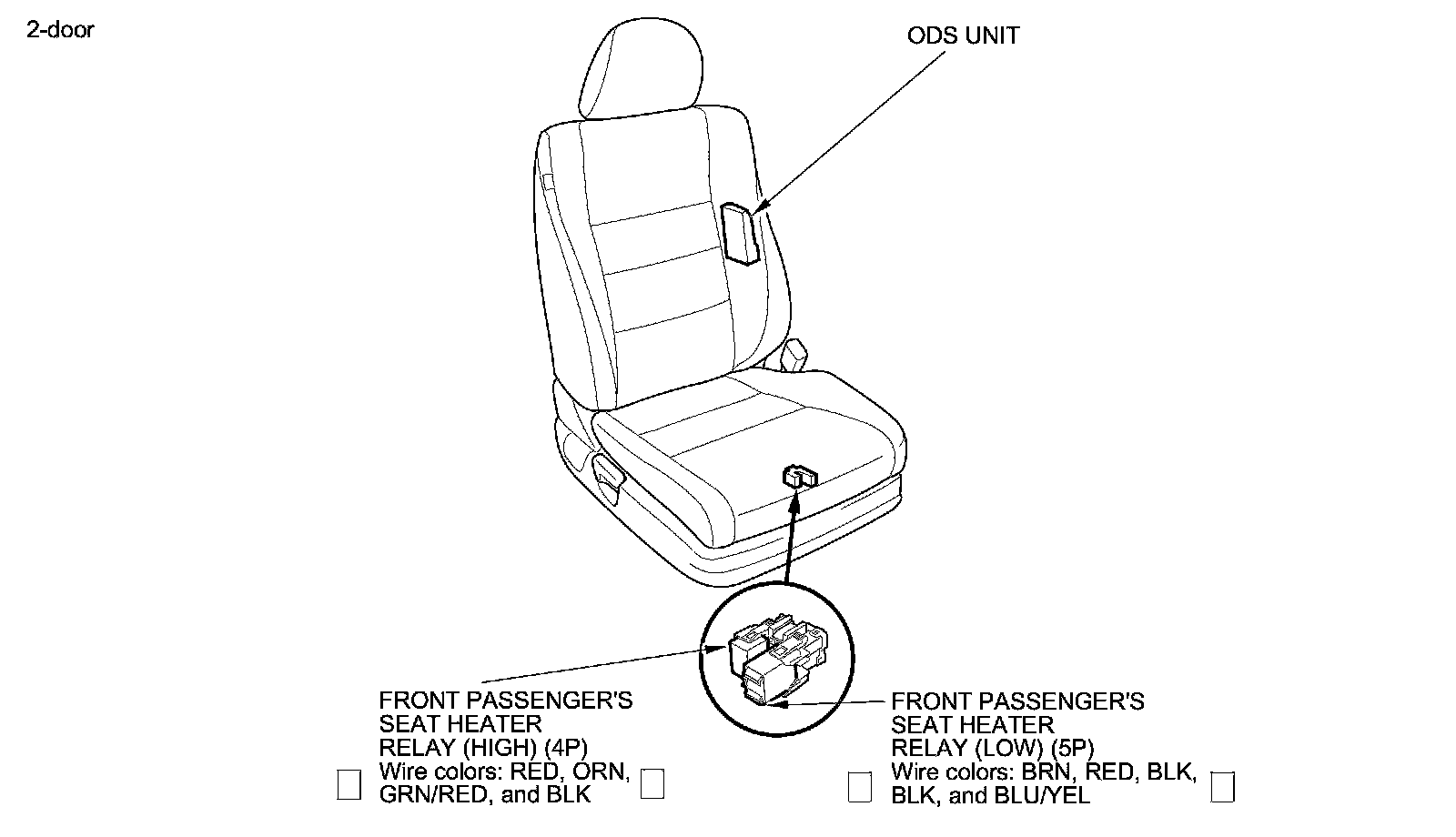

Front passenger's seat
