Engine - Unusually High Oil Consumption, Low Oil Light ON
12-087April 30, 2013
Applies To:
See VEHICLES AFFECTED
2008-11 Accord L4: Sticking Rings Resulting in Unusually High Engine Oil Consumption
(Supersedes 12-087, dated April 3, 2013, to revise the information marked by the black bars or asterisks)
*REVISION SUMMARY
Under PARTS IN FORMATION, a cylinder head gasket kit and flexible gasket were added.*
SYMPTOM
The engine oil level is low on the dipstick, and the oil warning light may come on in rare high oil consumption situations.
POSSIBLE CAUSE
Under certain specific circumstances the engine may create deposits on the oil control rings, which may lead to increased oil consumption when all of the following conditions occur simultaneously on a regular and prolonged basis:
^ The engine is cold (not warmed up to operating temperature)
^ Hard acceleration while the engine is cold
^ The fuel used has an unusually high concentration of particles - Honda recommends using Top Tier gas that contains detergents to prevent deposits. For more information about Top Tier gas, go to www.toptiergas.com.
All these conditions happening at the same time are rare, but if they do occur, deposits may form over years of driving under these conditions. If the oil control rings begin to stick because of the deposits, the customer may subsequently complain about excessive oil consumption.
CORRECTIVE ACTION
Do the oil consumption test and, if necessary, replace all the engine pistons and the piston rings.
Service Advisor:
Talk to the customer about the many factors contributing to oil consumption. Remind customers that with less frequent service intervals for modern engines, it is not uncommon for a client to add oil between services. Therefore, it is a good idea for customers to check their engine oil regularly (as recommended in the Owner's Manual) and add oil as necessary.
VEHICLES AFFECTED
2008-09 Accord L4 - ALL
2010 Accord 2-Door L4 M/T
From VIN 1HGCS1...M002051 thru
1HGCS1...M018407
2011 Accord 2-Door L4 A/T
From VIN 1HGCS1...BA000007 thru
1HGCS1...BA012195
2010 Accord 4-Door L4 M/T
From VIN 1HGCP2...M012263 thru
1HGCP2...M168741
2011 Accord 4-Door L4 A/T
From VIN 1HGCP2...BA000010 thru
1HGCP2...BA097742
From VIN JHMCP2...BC000018 thru
JHMCP2...BC000037
PARTS INFORMATION
Chain Case Gasket Kit: P/N 06114-R44-A00
Connecting Rod Bolt (eight may be needed):
P/N 13204-RBB-004
*Cylinder Head Gasket Kit: P/N 06110-R44-A00*
Cylinder Head Gasket Kit: P/N 06110-R45-L00
*NOTE:
Be sure that these gasket kits are ordered from the parts catalog for the vehicle being worked on.
Flexible Gasket: P/N 18229-SEA-013*
Head Bolt-Washer (ten may be needed):
P/N 90005-RNA-A01
Intake Manifold Gasket (four required):
P/N 17115-R40-A01
O-ring: P/N 91301-R40-A01
Primary Converter Gasket: P/N 18115-R40-A01
Self-locking Nut (four required): P/N 90212-RCA-01
2008-10 Accord
NOTE:
Make sure you order the correct piston ring set and piston sets for the applicable year vehicle you are working on.
Piston Ring Set (4 required): P/N 13011-R44-A01
Piston Set A: P/N 13010-R40-A00

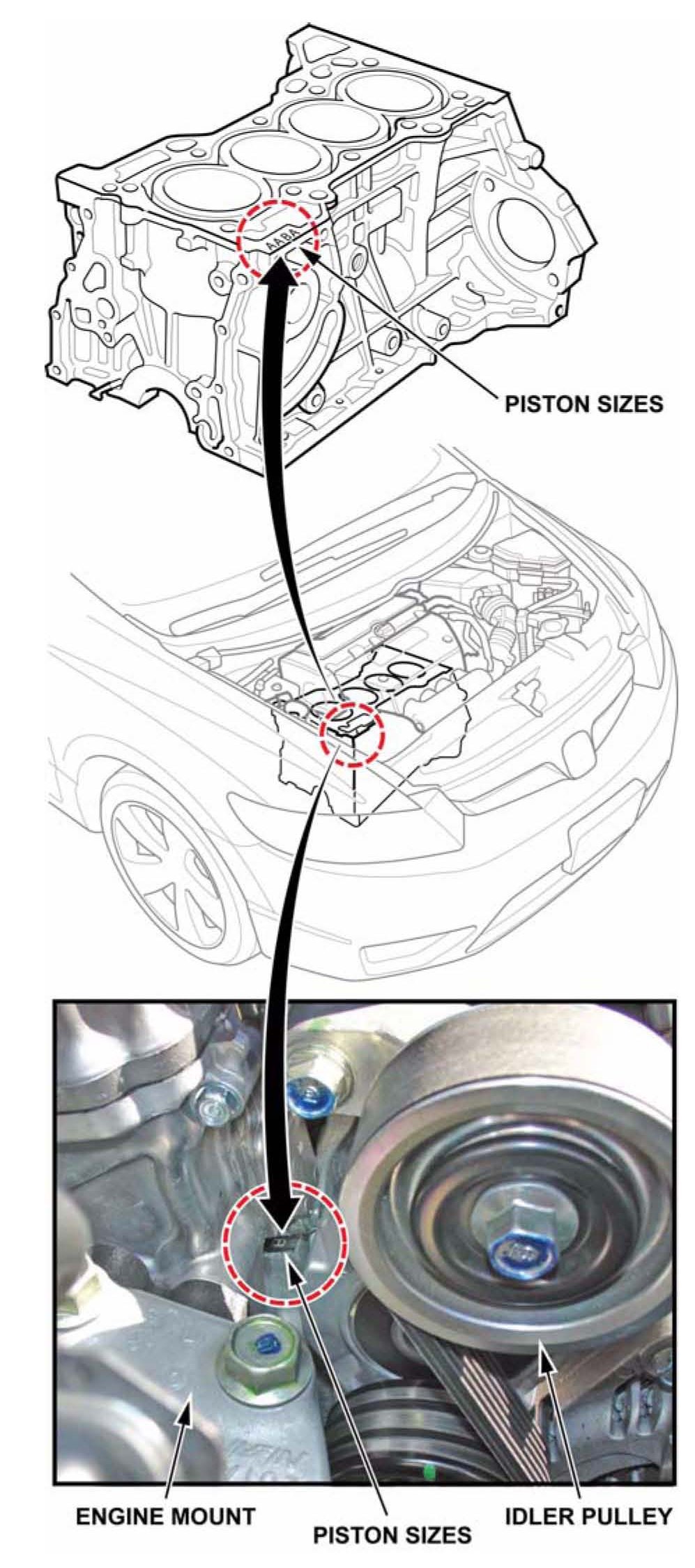

(Go to ORDERING PISTONS for more information about which piston set you need.)
Piston Set B: P/N 13020-R40-A00
(Go to ORDERING PISTONS for more information about which piston set you need.)
NOTE:
You need a total of four piston sets, but you will probably need a mix of both A and B piston sets.
2011 Accord
NOTE:
Make sure you order the correct piston ring set and piston sets for the applicable year vehicle you are working on.
Piston Ring Set (4 required): P/N 13011-R40-A11
Piston Set A: P/N 13010-R40-A10
(Go to ORDERING PISTONS for more information about which piston set you need.)
Piston Set B: P/N 13020-R40-A10
(Go to ORDERING PISTONS for more information about which piston set you need.)
NOTE:
You need a total of four piston sets, but you will probably need a mix of both A and B piston sets.
TOOL INFORMATION
^ Camshaft Lock Pin Set: T/N 07AAB-RWCA120
^ Gasket Remover/Pan Separator: T/N LIL50190
^ Piston Ring Expander (Snap-On T/N PRS8 or equivalent)
^ Piston Ring Compressor (5CP1287 or equivalent)
^ 1/2 in. Drive Torque Angle Gauge (commercially-available)
^ Engine Hanger: P/N AAR-T1256
REQUIRED MATERIALS
^ Hondabond HT Silicone
^ Genuine Honda Motor Oil (0W-20): P/N 08798-9036
^ Honda Long-Life Antifreeze/Coolant Type 2:
P/N 0L999-9011
^ Honda Genuine Power Steering Fluid:
P/N 08206-9002

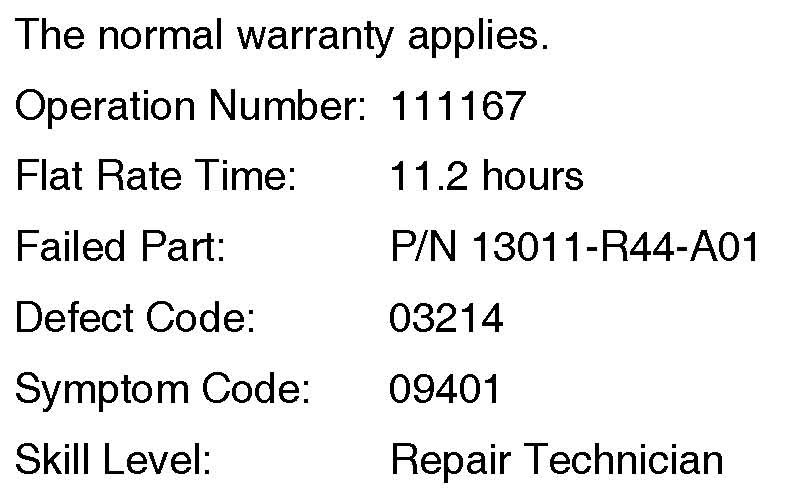

WARRANTY CLAIM INFORMATION
DIAGNOSIS
1. Do an engine oil consumption test. Refer to the Job Aid Engine Oil Consumption Test
2. Review the results of the engine oil consumption test.
^ Based on the test results, if the engine is consuming an unusually high amount of oil, contact your DPSM for approval, then go to REPAIR PROCEDURE.
^ Based on the test results, if the engine is consuming a normal amount of engine oil, the vehicle is OK. Explain to the customer that the vehicle is OK, and that the consumption of oil is within a normal range.
NOTE:
Remind the customer to regularly check the engine oil level every time they fill the fuel tank. Modern engines require less frequent oil changes, which may impact the amount of oil used between oil changes.
REPAIR PROCEDURE
The following service manual procedures have been used in full or in part within this service bulletin. For more detail on these procedures and torque specifications for some components, refer to the appropriate service manual, or view them online.
^ Fuel Pressure Relieving
^ Battery Terminal Disconnection and Reconnection
^ Engine Oil Replacement
^ Coolant Replacement
^ Drive Belt Removal/Installation
^ Intake Manifold Removal and Installation
^ Warm Up TWC Removal/Installation
^ Fuel Line/Quick-Connect Fitting Removal
^ Cam Chain Removal
^ Rocker Arm Assembly Removal
^ Cylinder Head Removal
^ Valve Adjustment
^ Oil Pan Installation
^ PCM Idle Learn Procedure
NOTE:

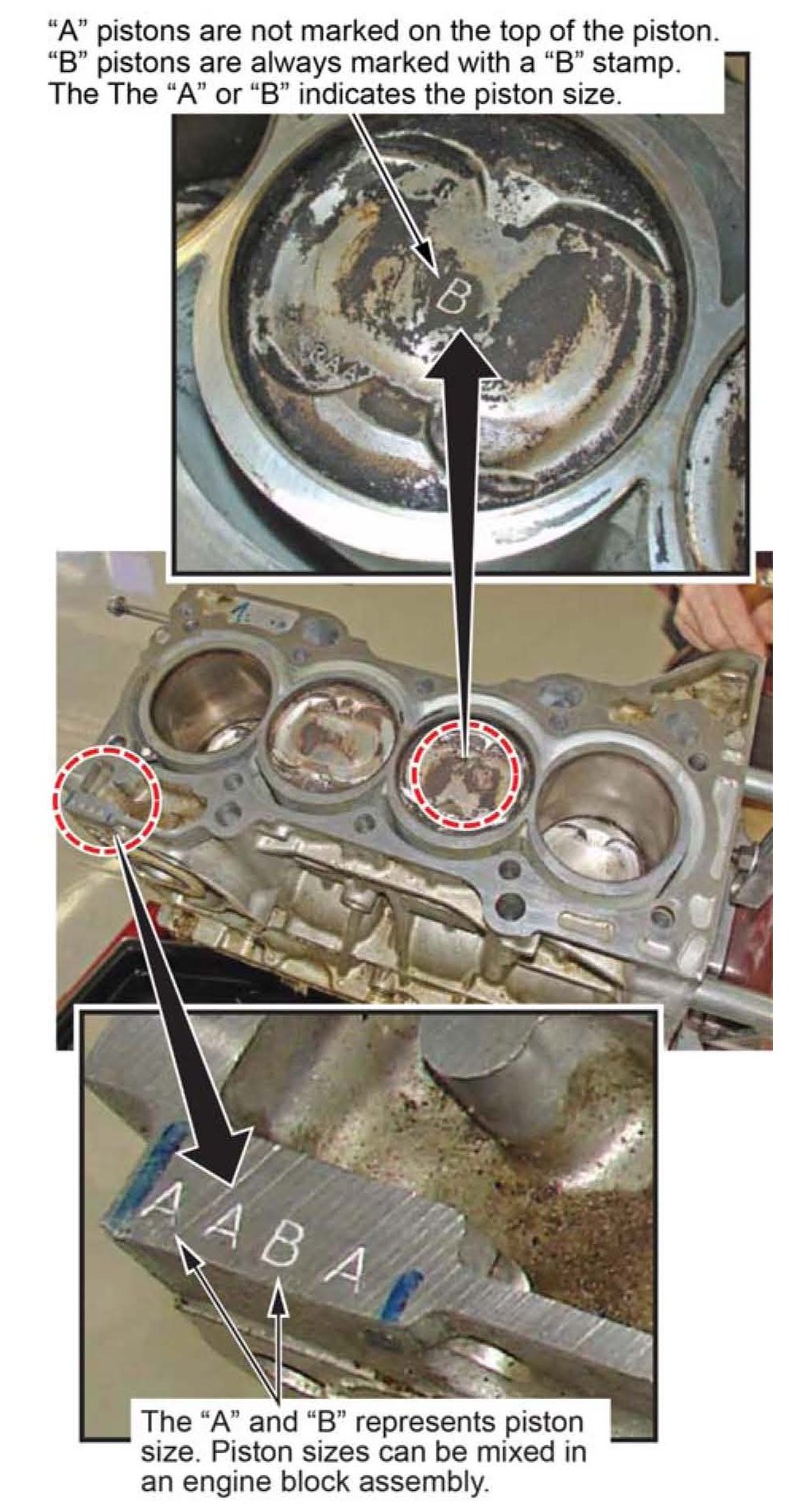

^ Before starting work, make sure to order the correct number of "A" and "B" pistons. Refer to ORDERING PISTONS of this bulletin.
^ Use fender covers to avoid damaging painted surfaces.
^ To avoid damaging the wires and terminals, unplug the wiring connectors carefully while holding the connector portion.
^ To avoid damaging the cylinder head, wait until the engine coolant temperature drops below 100°F (38°C) before loosening the cylinder head bolts. If needed, connect the HDS to the DLC, and monitor ECT SENSOR 1.
^ Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact any other wiring or hoses, or interfere with any other parts.
1. Make sure that Service Bulletin 11-049, Product Update: Software Update to Improve Fuel Injector and VTC Timing is complete by checking the iN VIN status.
2. Put the vehicle on a lift.
3. Relieve the fuel pressure.
4. Do the battery terminal disconnection procedure.
5. Drain the engine oil.
6. Remove the strut brace (if equipped).
7. Drain the engine coolant.
8. Remove the drive belt.
9. Remove the intake manifold.
10. Remove the warm up three way catalytic converter (TWC).

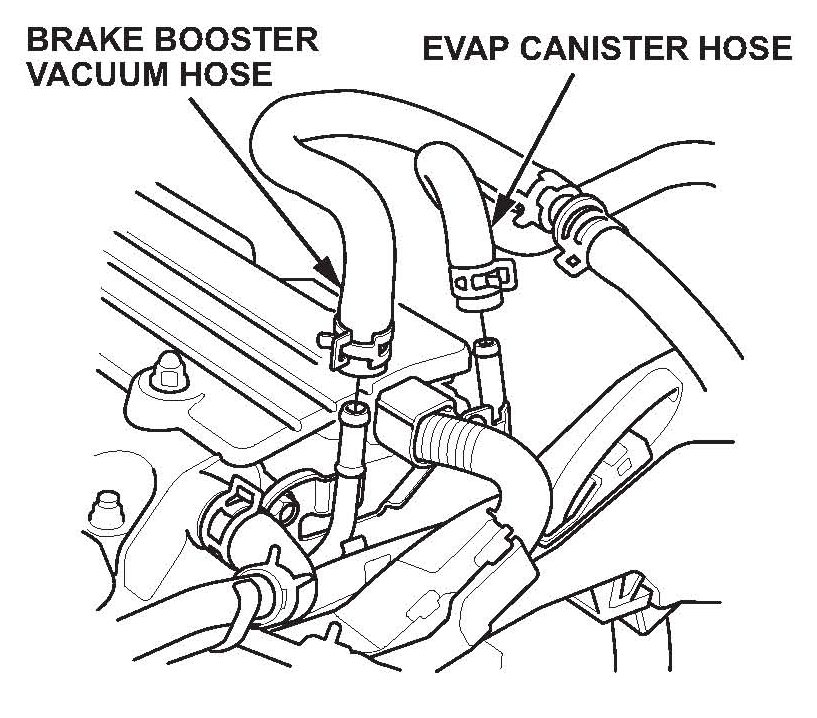

11. Disconnect the brake booster vacuum and EVAP canister hoses.

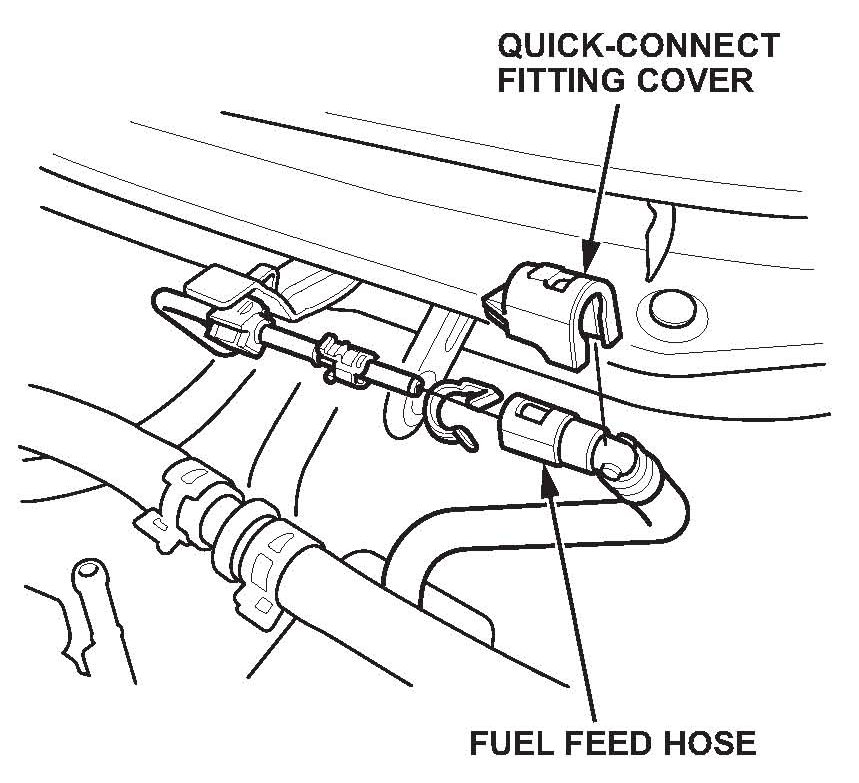

12. Remove the quick-connect fitting cover, then disconnect the fuel feed hose.

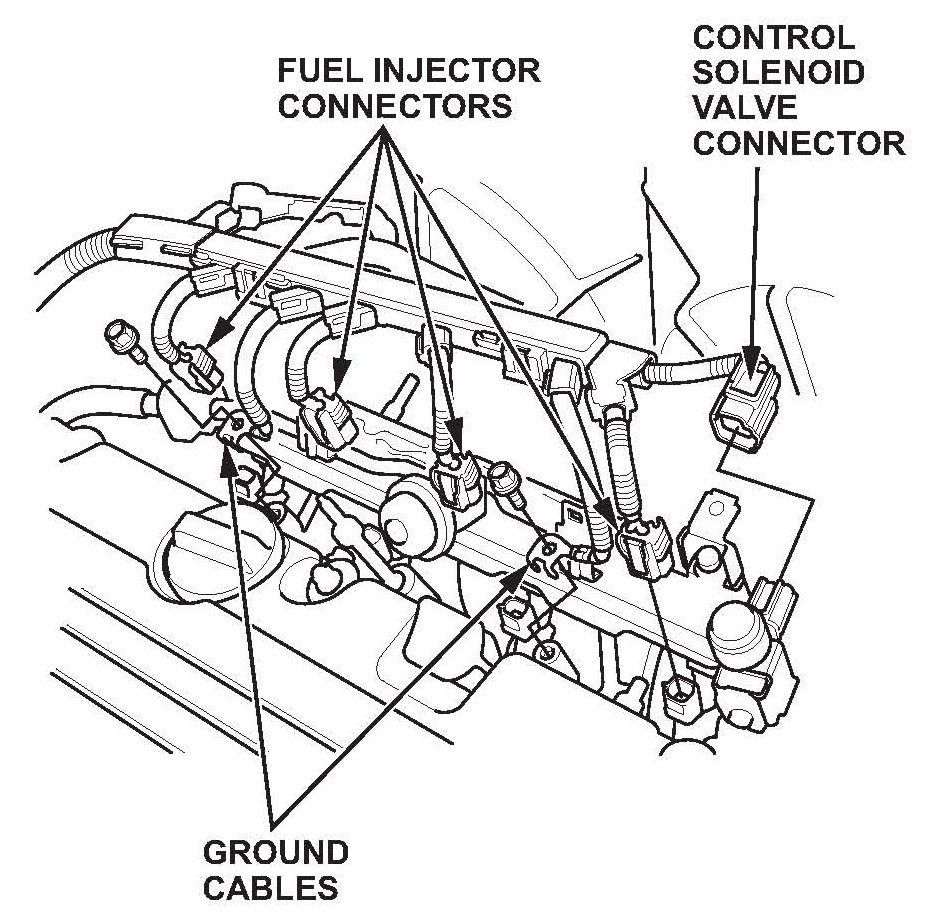

13. Disconnect the four fuel injector connectors and the engine mount control solenoid valve connectors, and disconnect the ground cables.

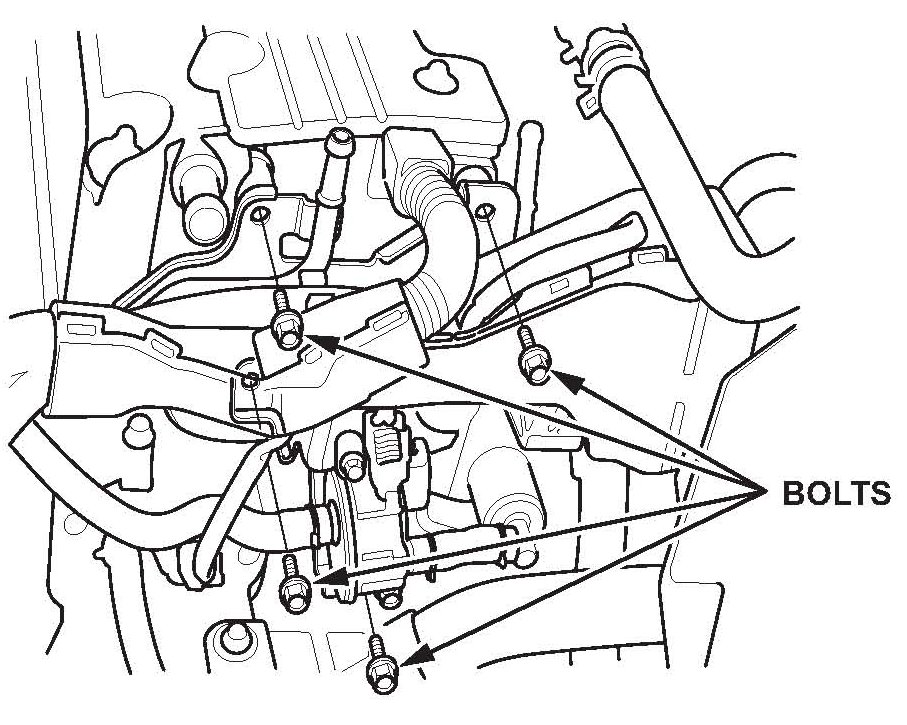

14. Remove the four bolts securing the EVAP canister purge valve bracket.

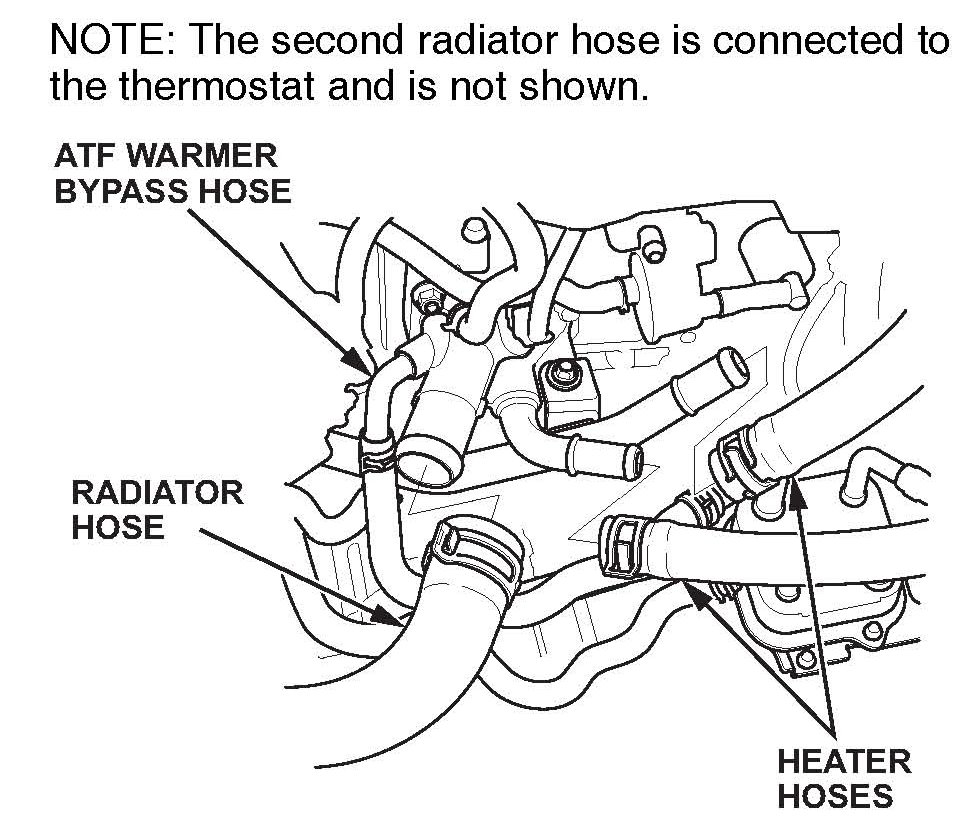

15. Disconnect the radiator hoses and the heater hoses. Disconnect the ATF warmer bypass hose (if equipped).

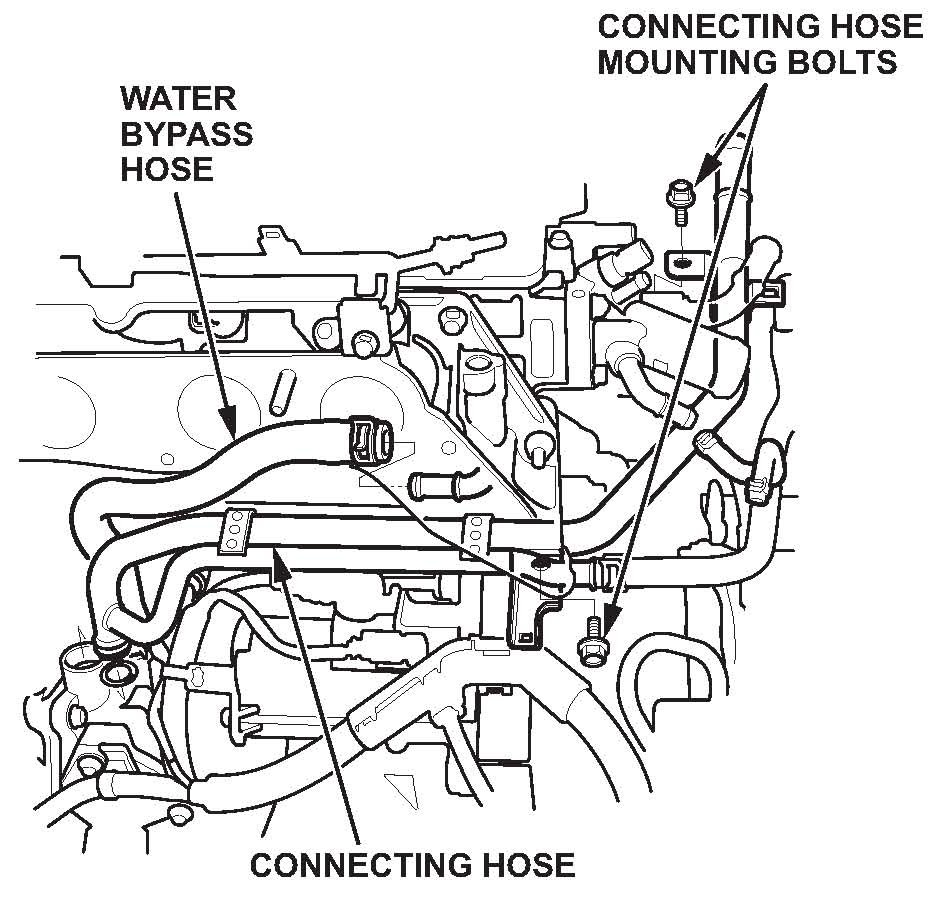

16. Remove the two bolts securing the connecting hose. Disconnect the water bypass hose.
17. Remove the cam chain case and the cam chain.
18. Remove the rocker arm assembly and both cam shafts.

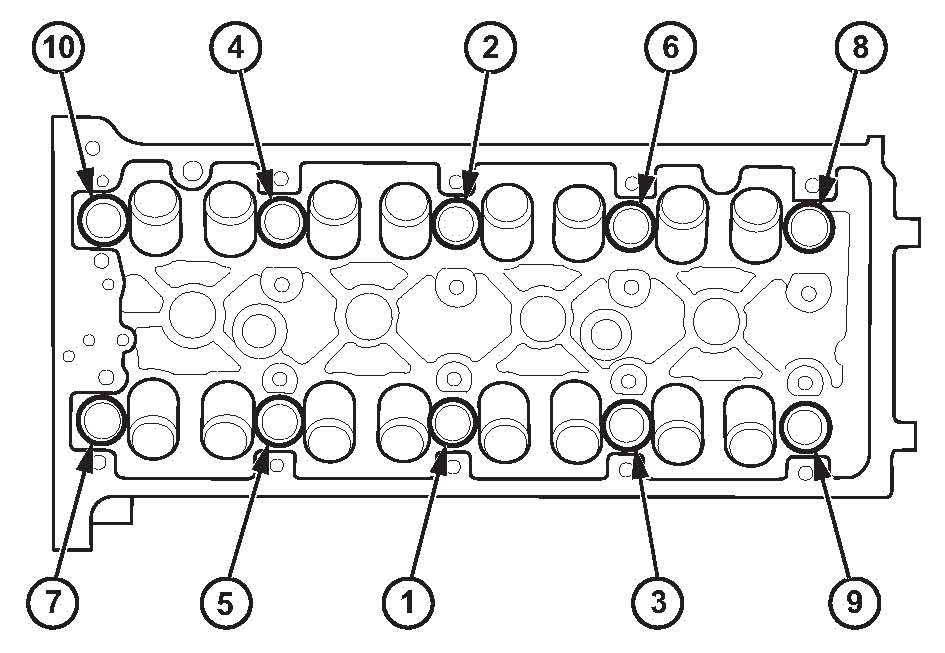

19. Remove the cylinder head bolts. To prevent warpage, loosen the bolts in sequence 1/3 turn at a time; repeat the sequence until all the bolts are loosened.
20. Remove the cylinder head.
21. Raise the vehicle on the lift.

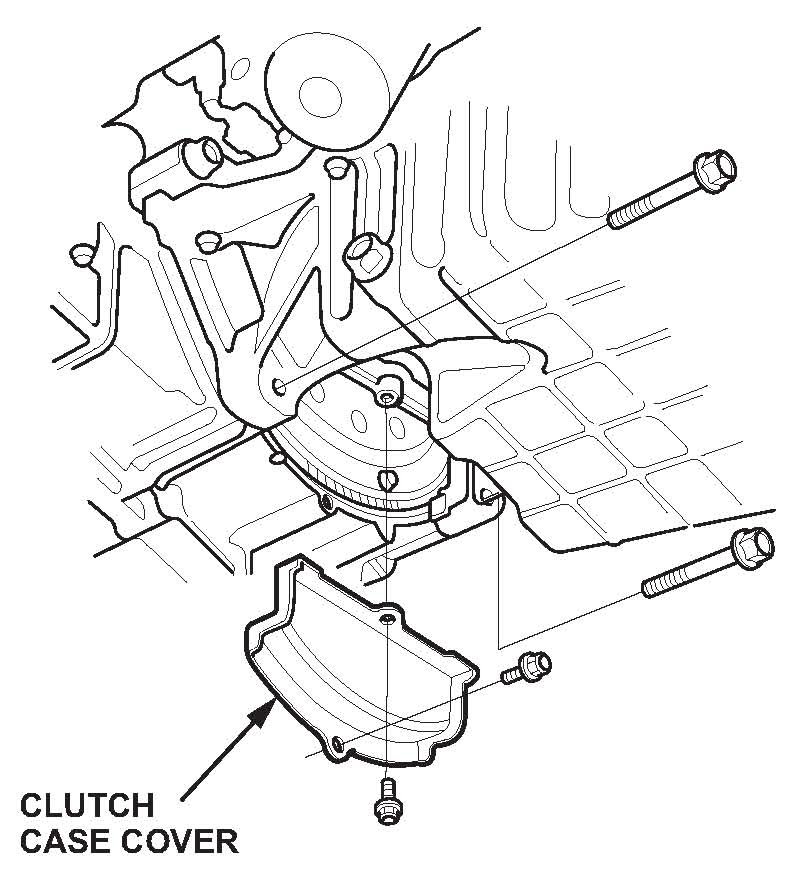

22. Remove the clutch case cover (A/T) or the torque converter cover (M/T), and remove the two bolts securing the oil pan to the transmission.

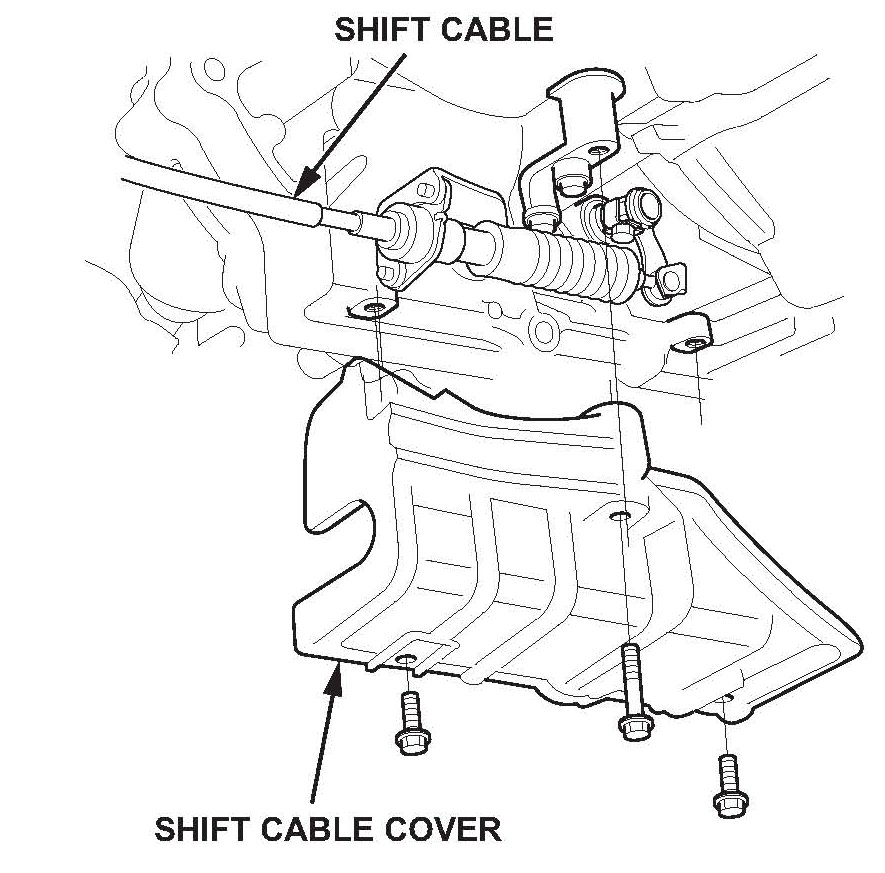

23. With A/T: Remove the shift cable cover.
24. Remove the bolts securing the oil pan.

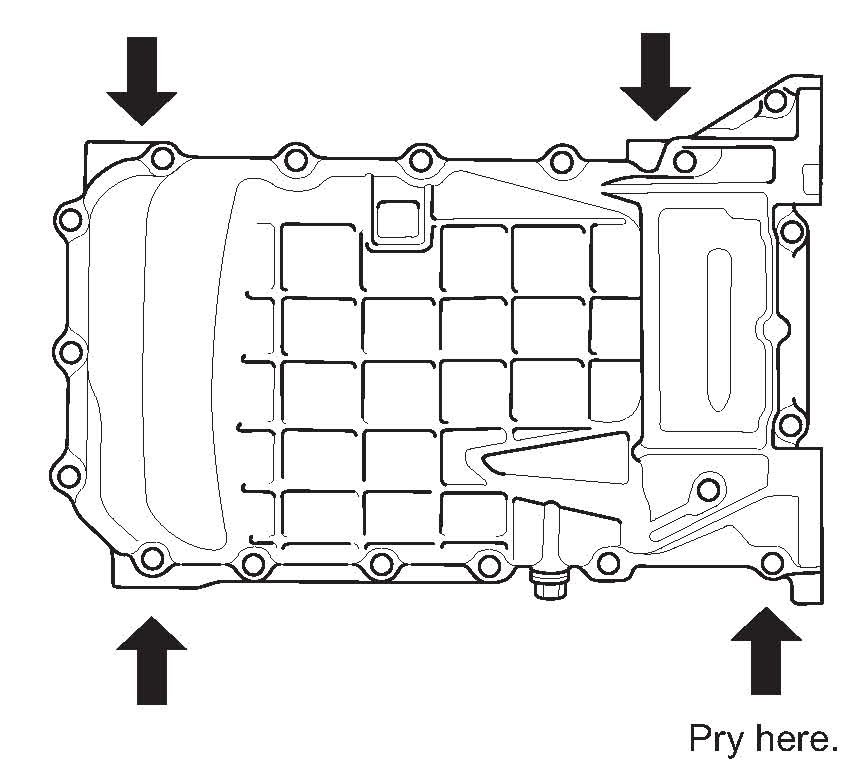

25. Using the pan separator, separate the oil pan from the engine block in the indicated areas, and remove the oil pan.

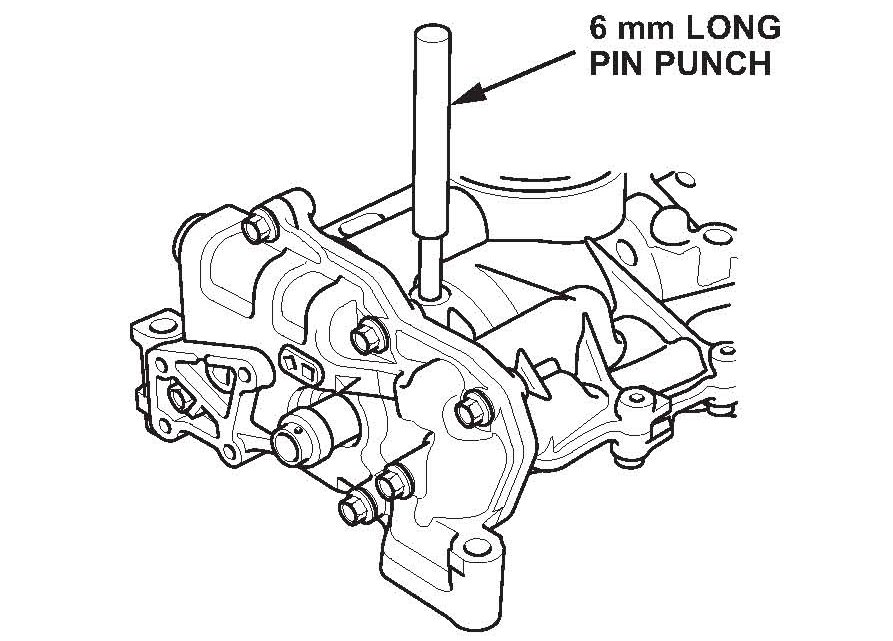

26. To hold the balancer shaft, insert a 6 mm (1/4 in.) diameter long pin punch into the maintenance hole in the balancer shaft holder and through the rear balancer shaft.
27. Loosen the oil pump sprocket mounting bolt.

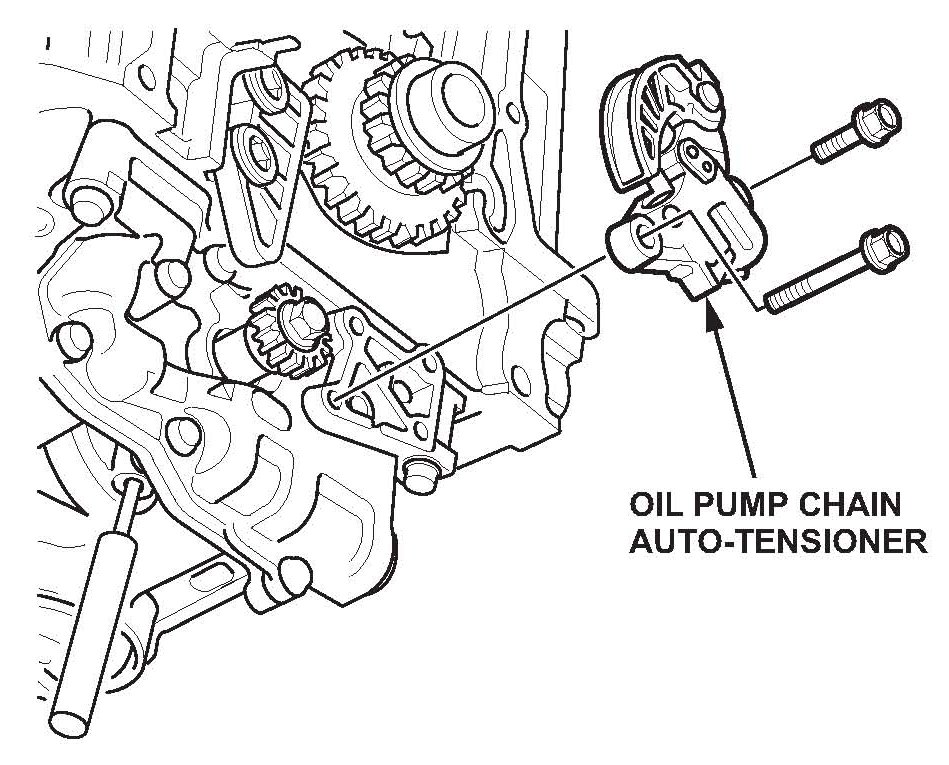

28. Remove the cam chain and the oil pump chain auto-tensioner.
29. Remove the oil pump sprocket and the oil pump.
30. Remove the baffle plate.
31. Lower the vehicle to a comfortable working height, and place a clean shop towel around the cylinder wall to prevent debris from entering the coolant passage.

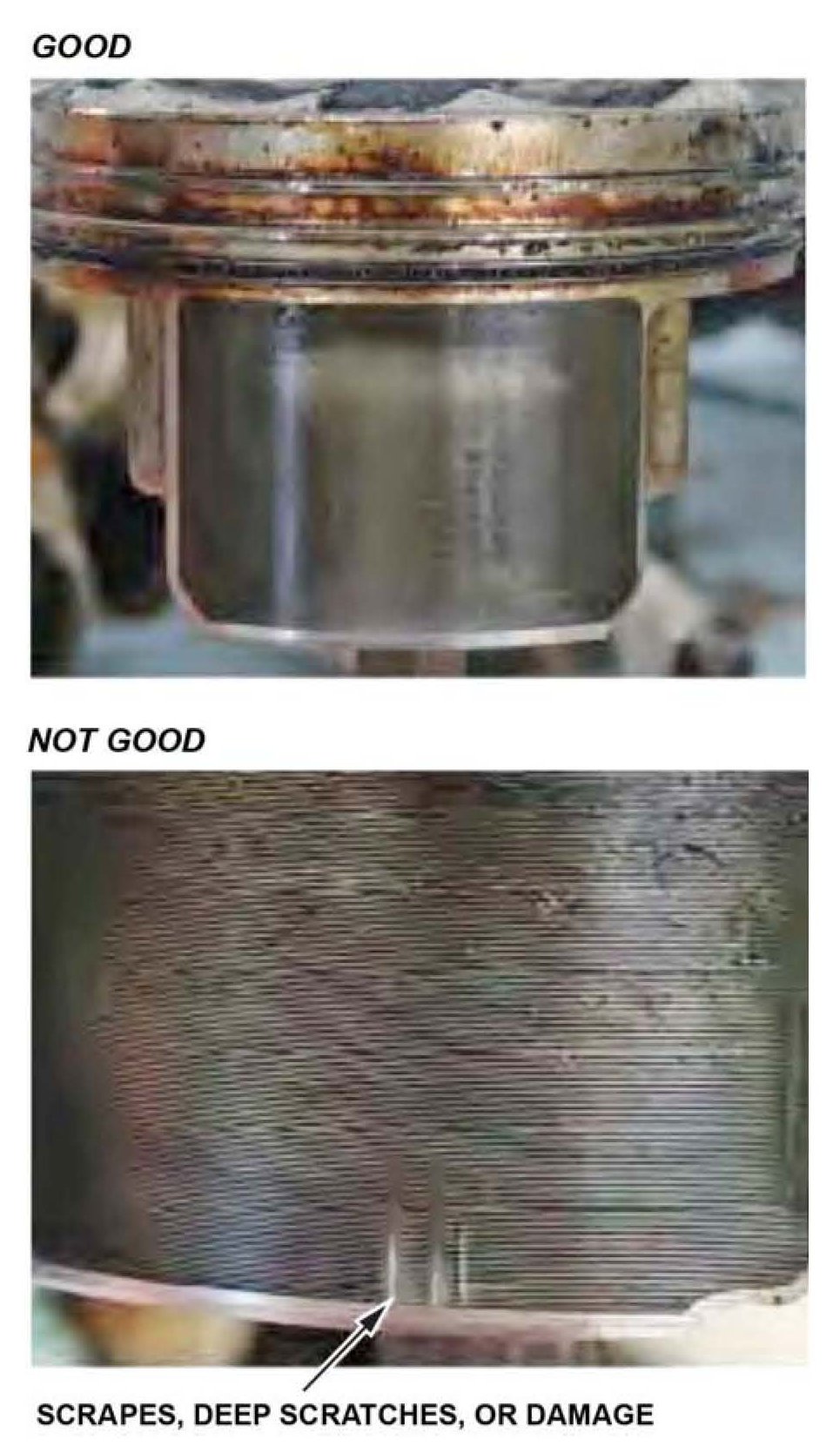

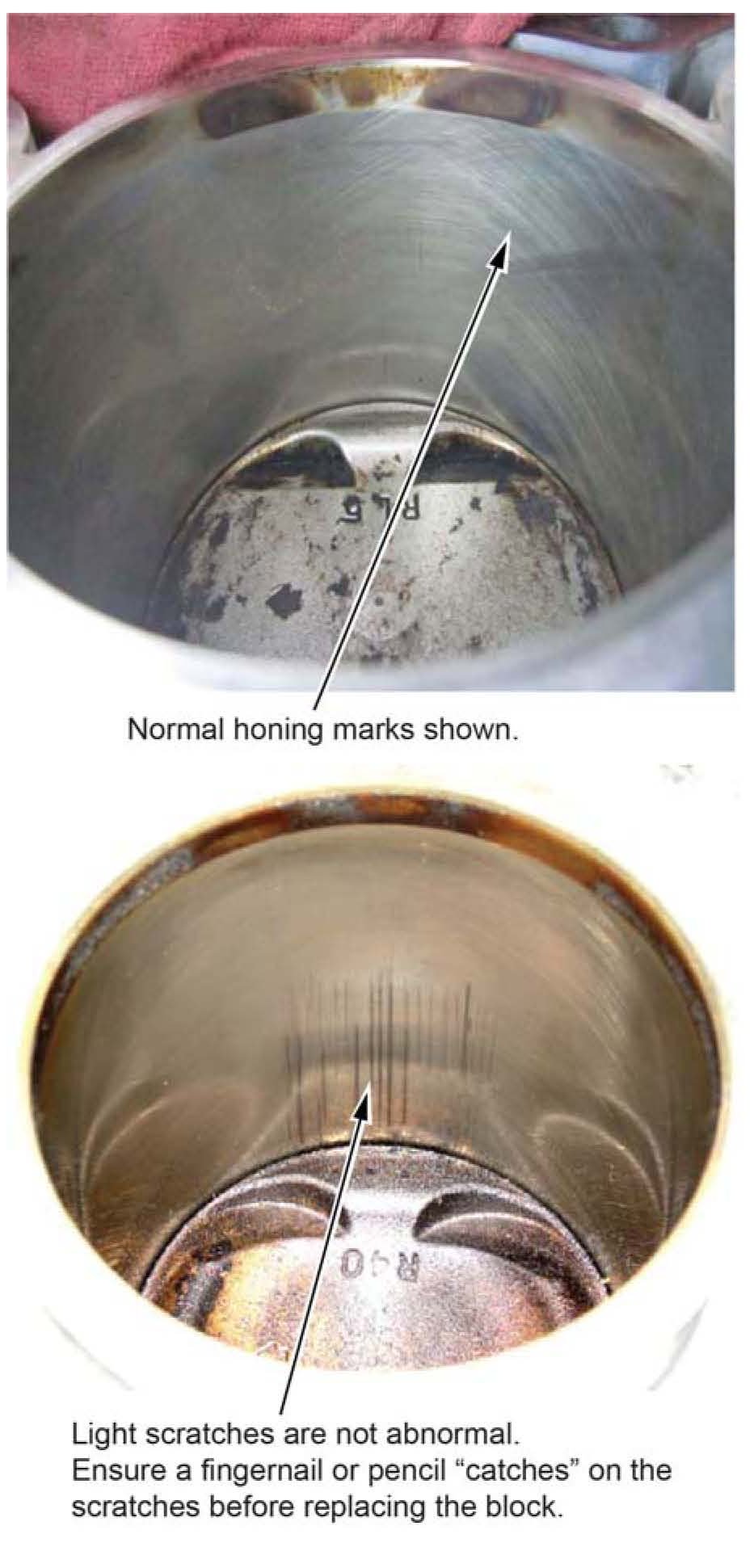

32. Check the cylinder walls by rubbing your fingernail or a pencil with light pressure perpendicular to any vertical scratches that are in the cylinder bore.
^ If your fingernail or pencil does not catch on the scratches, the cylinder block is OK. Go to step 34.
^ If your finger nail or pencil catches on the scratches, go to step 33 to continue checking the cylinder block.
33. Remove the piston from the scratched cylinder bore. Inspect the piston skirt for any scratches or damage that corresponds with the scratched cylinder bore.
^ If the piston skirt has deep scratches, or is damaged, and corresponds to the position of the bore scratches, replace the engine block. This bulletin no longer applies. You must obtain DPSM approval and refer online to Engine Removal and Installation to reinstall the engine.
^ If the piston skirt has no damage, the cylinder block is OK; go to step 34.
34. Remove the rod caps and the bearings.
35. Use a wooden hammer handle to drive out each of the piston and connecting rod assemblies.
NOTE:
Be careful not to damage the cylinder walls or the crankshaft when pushing out the pistons and the connecting rod assemblies.

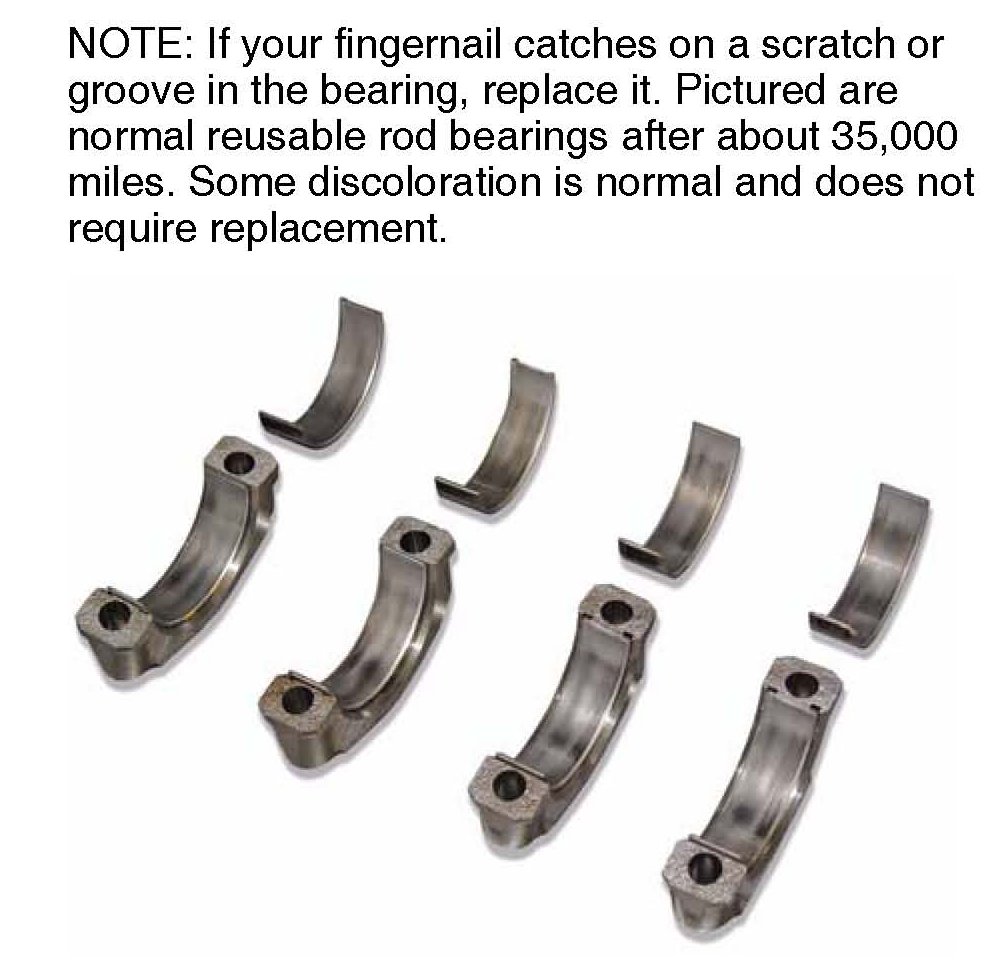

36. Visually inspect all the connecting rod bearings for signs of damage.

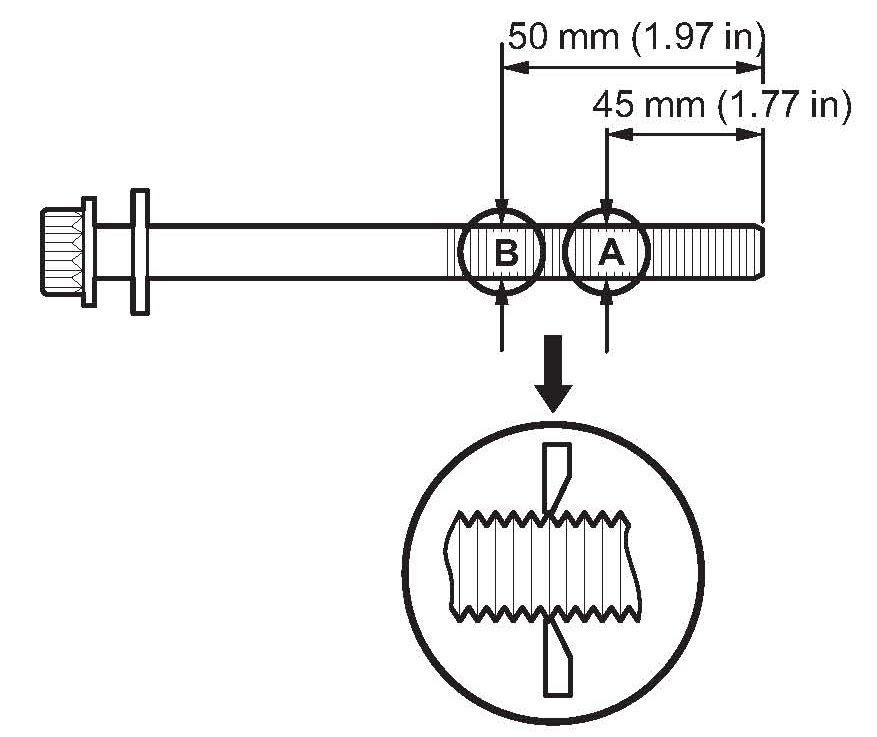

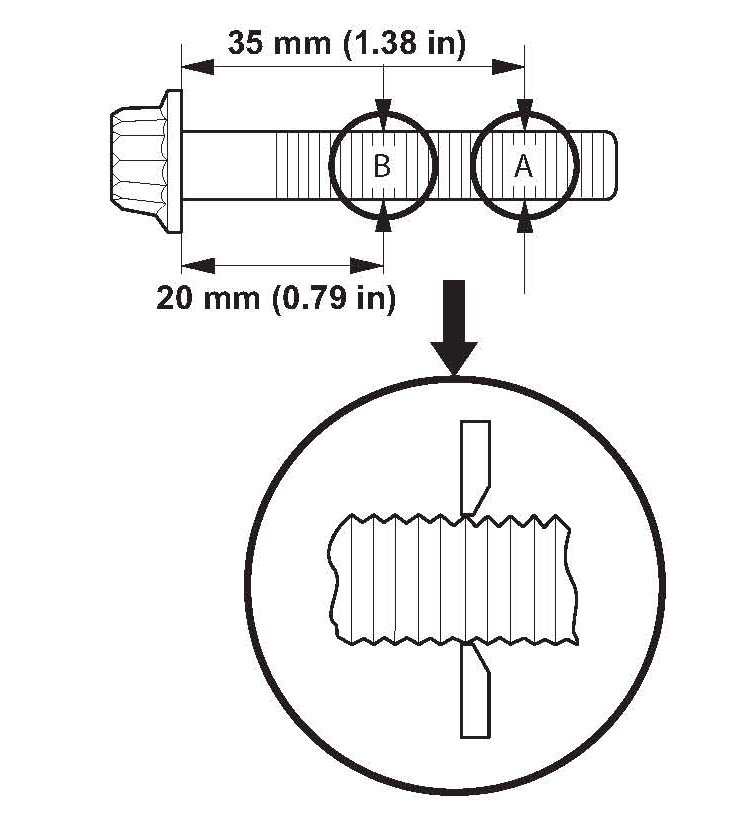

37. Measure the diameter of each connecting rod bolt at points A and B.
38. Calculate the difference in diameter between points A and B:
^ Point A - Point B = Difference in Diameter
^ Difference in Diameter Specification:
0 - 0.1 mm (0.004 in.)
^ If the difference in diameter is out of specification, replace the connecting rod bolt.

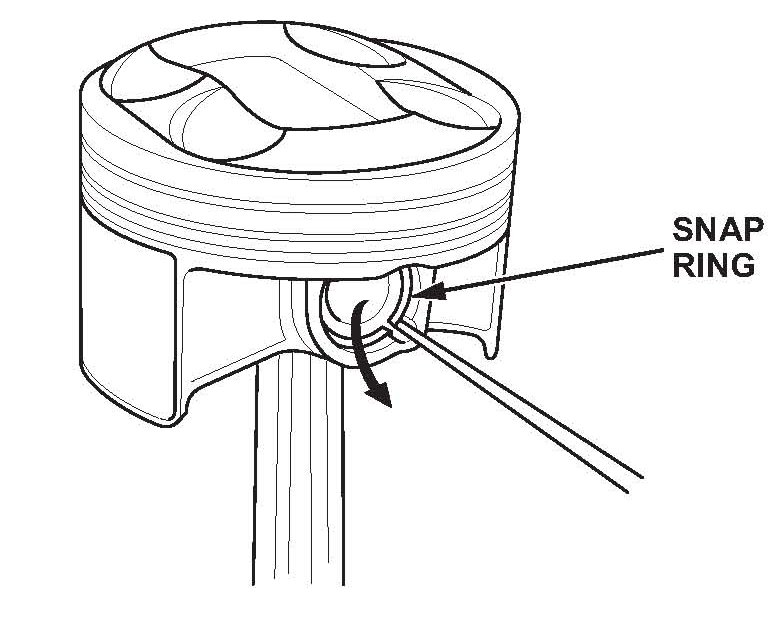

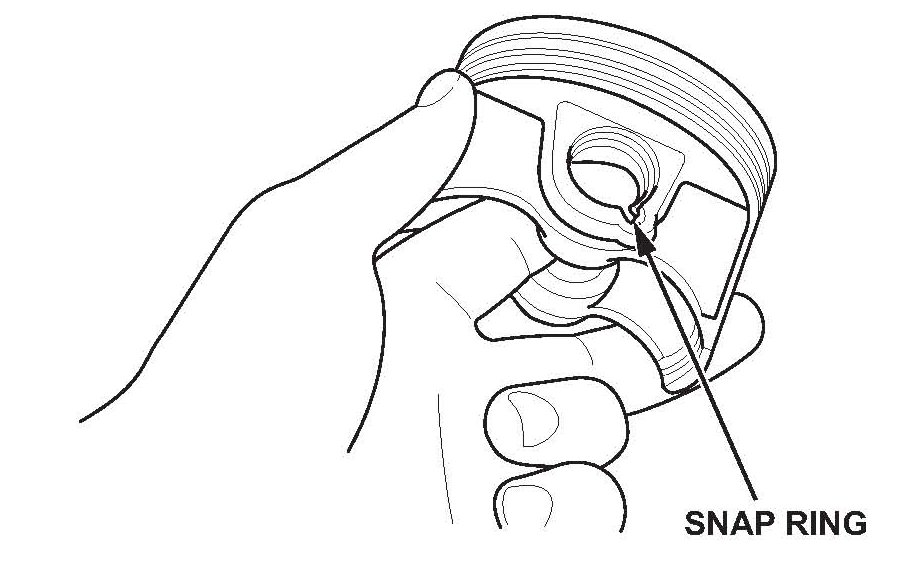

39. Put on eye protection, then remove the snap rings from both sides of each piston. Start at the cutout in the piston pin bore. Remove the snap rings carefully so they do not go flying or get lost.

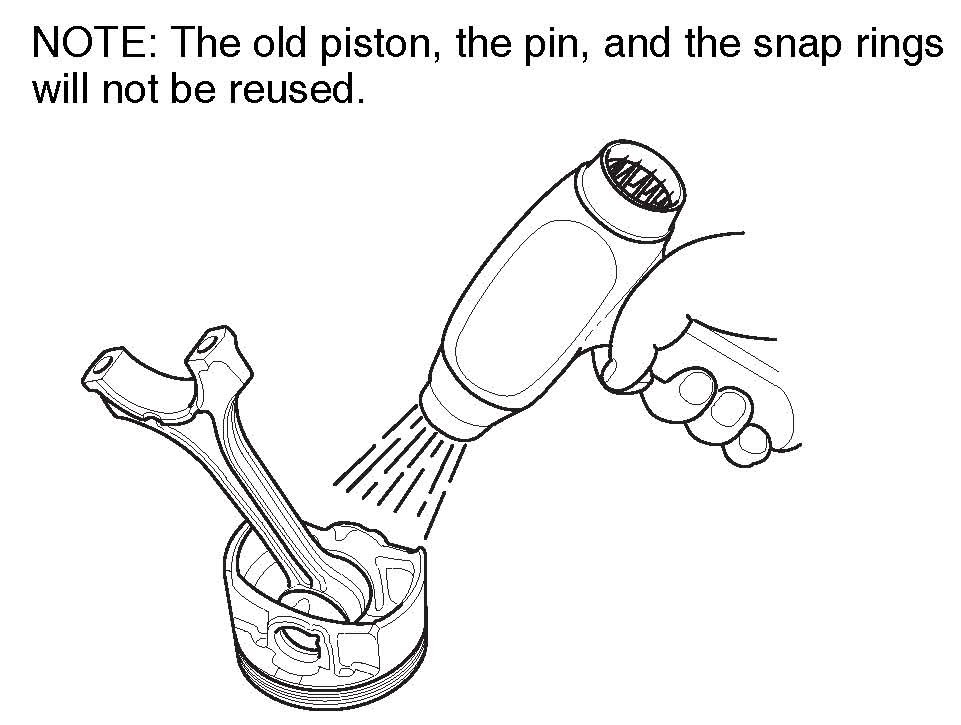

40. Put on gloves, heat the piston and the ends connecting rod to about 158°F (70°C), then remove the piston pin.
41. Install a new piston pin snap ring on one side of a new piston.
42. Coat the piston pin bore in the piston, the bore in the connecting rod, and the piston pin with new engine oil.
43. Heat the piston to about 158°F (70°C).

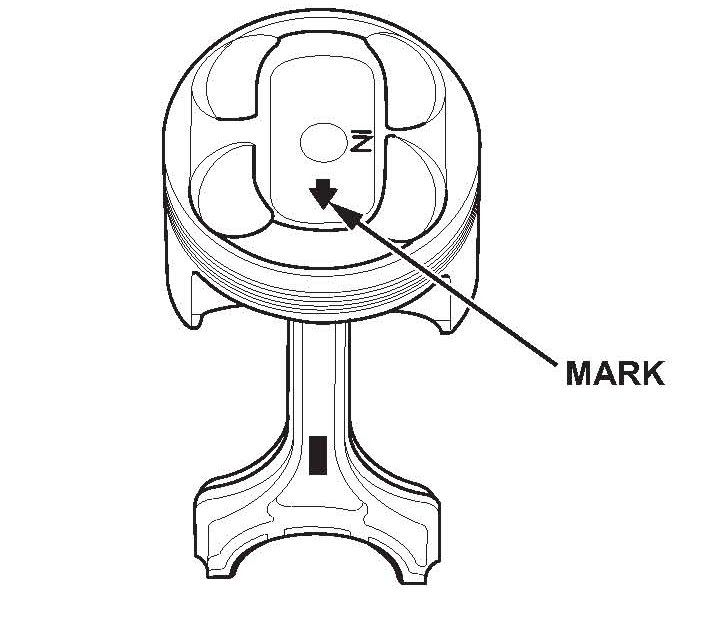

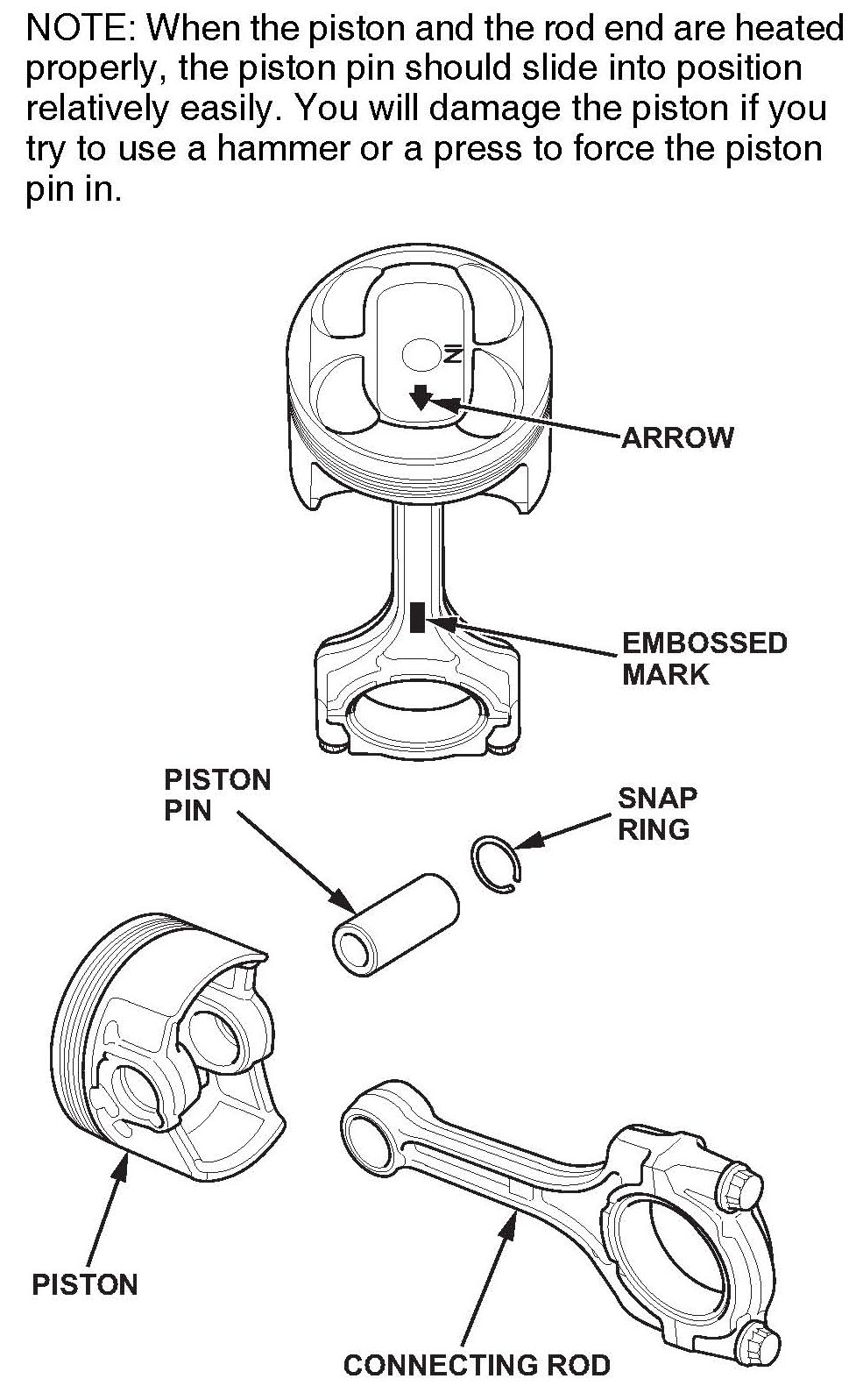

44. Assemble the piston and the connecting rod with the arrow and the embossed mark on the same side. Install the piston pin.
45. Install the remaining snap ring.
46. Turn the snap ring in the ring grooves until the end gaps are positioned at the bottom of the piston.
47. Repeat steps 39 through 46 for the remaining pistons.

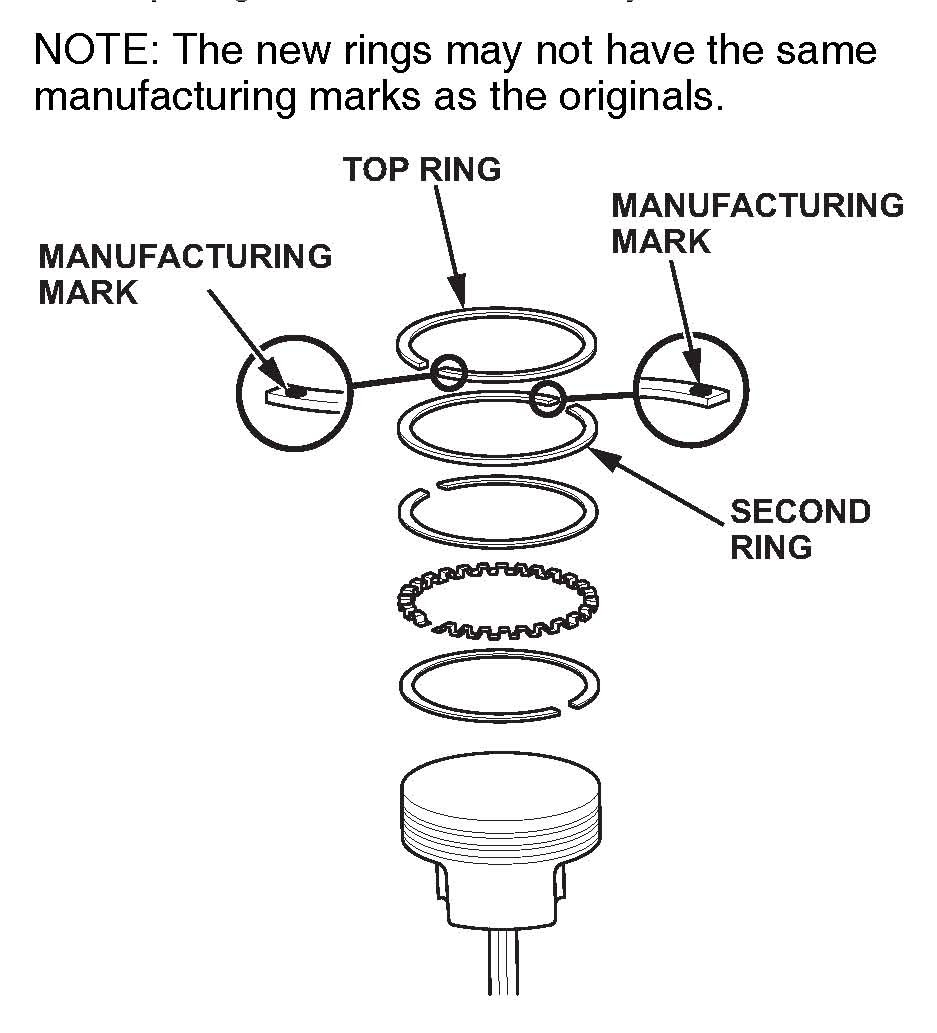

48. Using a piston ring expander, install the spacer and two oil rings. Install the second ring and top ring with the manufacturing marks facing up. The second ring has a "2" followed by a letter or letters. The top ring has a "1" followed by a letter or letters.
49. Rotate the rings in their grooves to make sure they do not bind.
50. Position the ring end gaps as shown.
51. Rotate the crankshaft so that cylinders 1 and 4 are at bottom dead center (BDC).
52. Remove the connecting rod cap to piston 1, and check that the bearing is securely in place.
53. Apply new engine oil to the entire piston, the inside of the ring compressor, the cylinder bore, and the rod bearings.
54. Position the mark to face the cam chain end of the engine block.

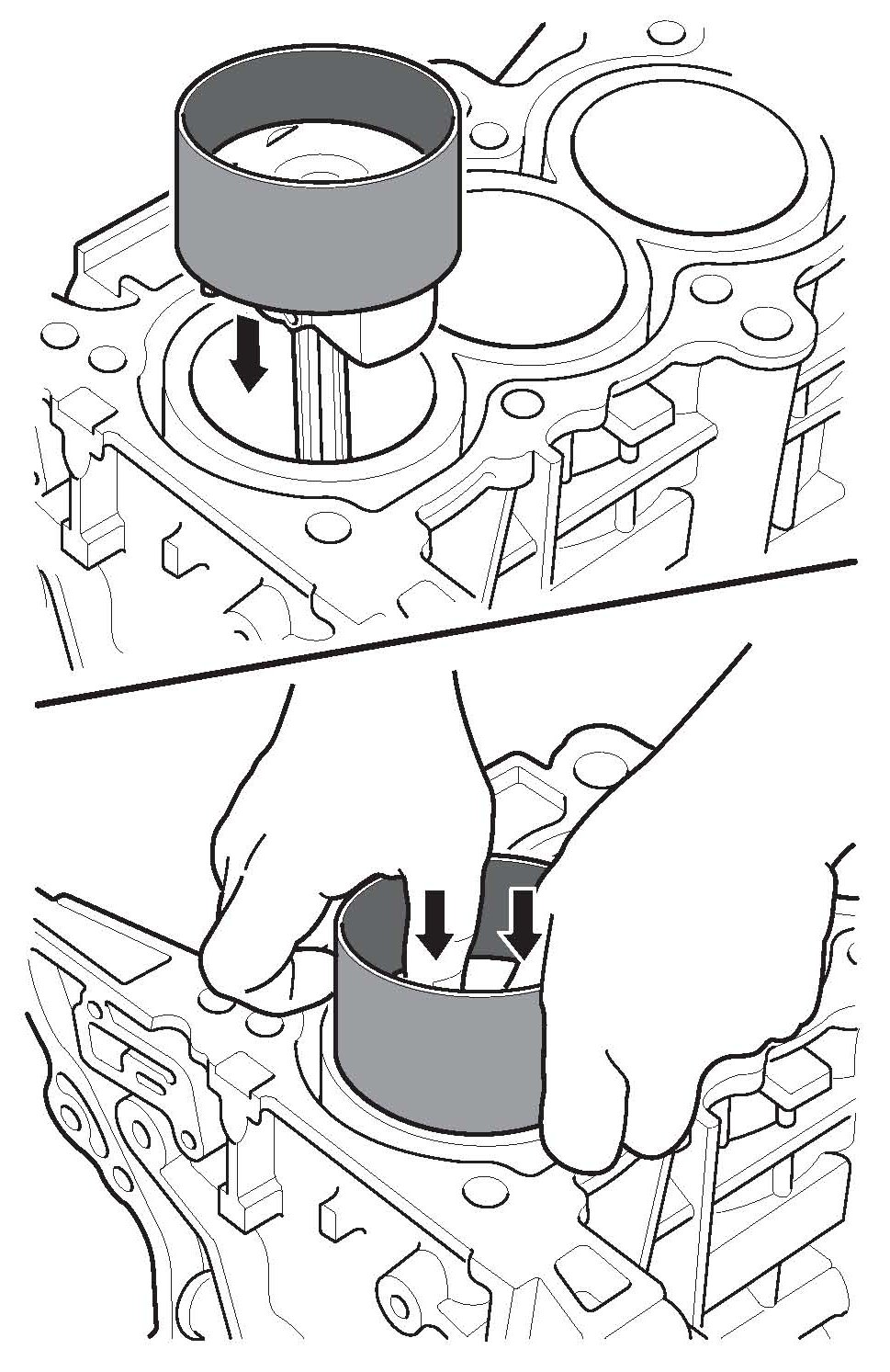

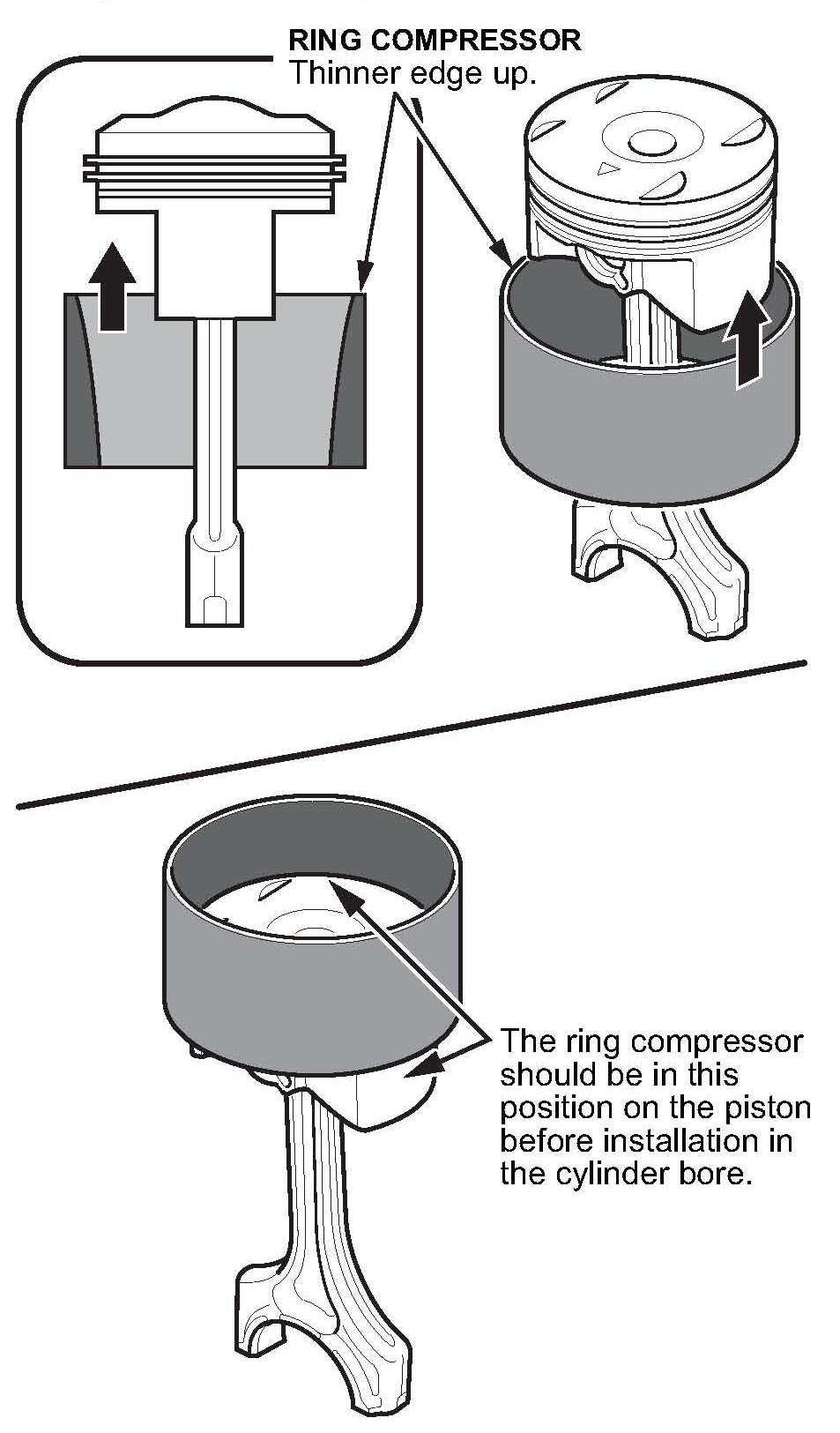

55. Set the piston in the ring compressor, and position the piston in the cylinder noting the rod/cap marks that you made in step 34.
56. Set the ring compressor on the piston bore, then push the piston in with your hands.
57. Stop after the ring compressor pops free, and check the connecting rod-to-rod journal alignment before pushing the piston into place.
58. Apply new engine oil to the bolt threads, then install the connecting rod cap with the bearing. Torque the bolts to 41 N.m (30 lb-ft).

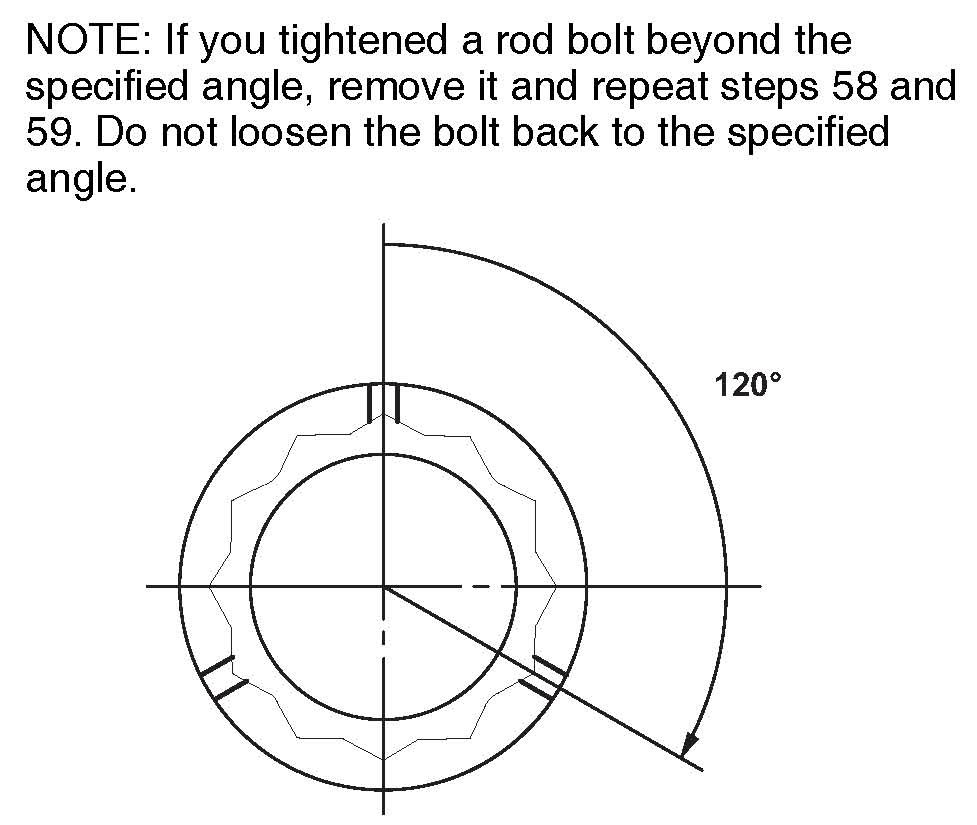

59. Tighten the connecting rod bolts an additional 120°.
60. Repeat steps 48 through 59 for piston number 4.
61. Rotate the crankshaft so that cylinders 2 and 3 are at bottom dead center (BDC).
62. Repeat steps 48 through 59 for piston number 2 and 3.
63. Rotate the crankshaft several times after all connecting rods have been installed to ensure that nothing is binding.

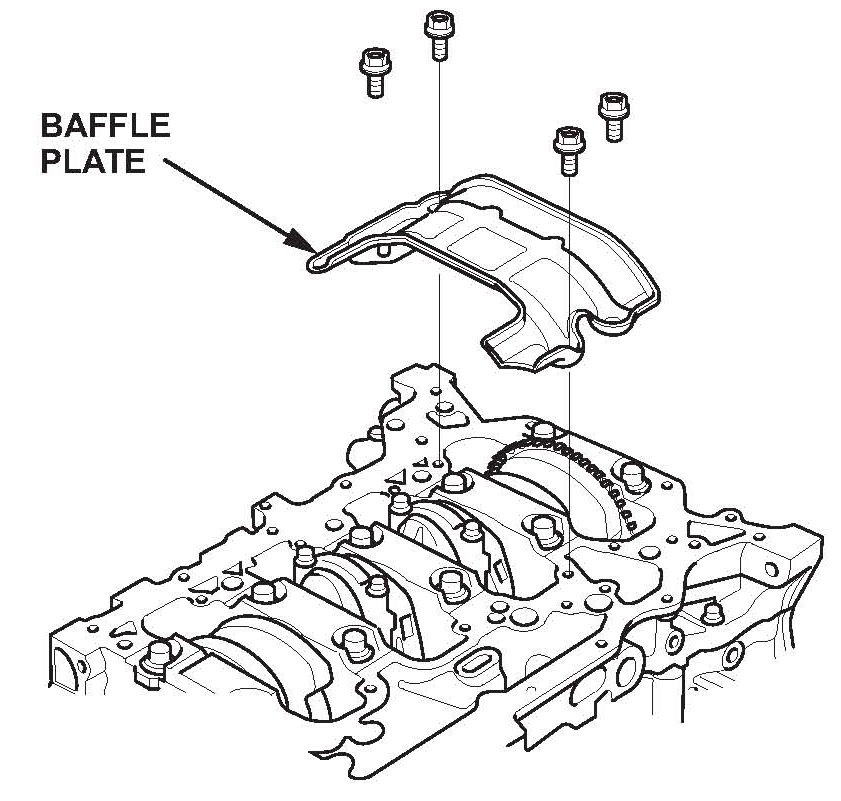

64. Install the baffle plate, and torque the bolts to
12 N.m (8.7 lb-ft).
65. Place the No. 1 piston at top dead center (TDC). Make sure the mark lines up with the pointer.

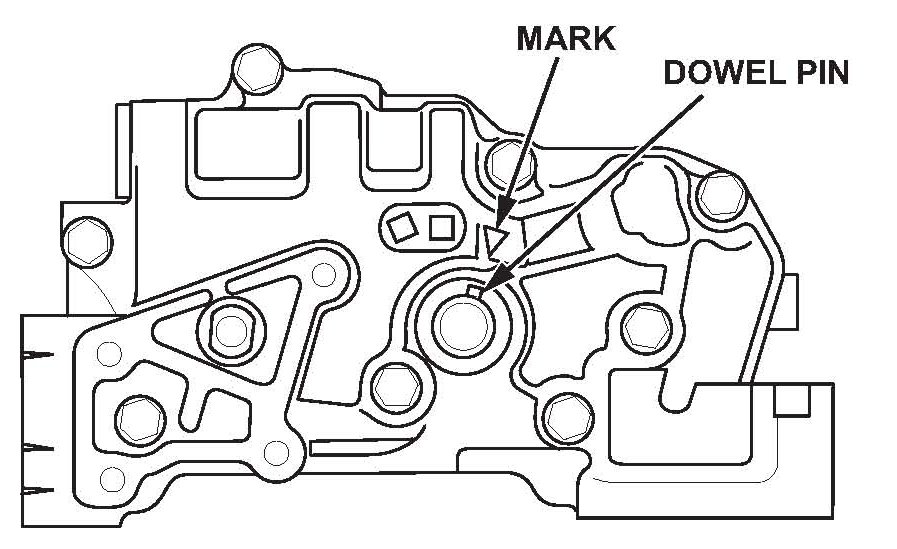

66. Align the dowel pin on the rear balancer shaft with the mark on the oil pump.
67. To hold the rear balancer shaft, insert the 6 mm (1/4 in.) diameter long pin punch into the maintenance hole in the balancer shaft holder and through the rear balancer shaft.
68. Turn the oil pump auto-tensioner plate counterclockwise to release the lock, then push the auto-tensioner arm, and set the first cam to the first edge of the rack. Insert a 3.0 mm (7/64 in.) diameter pin into the hole.

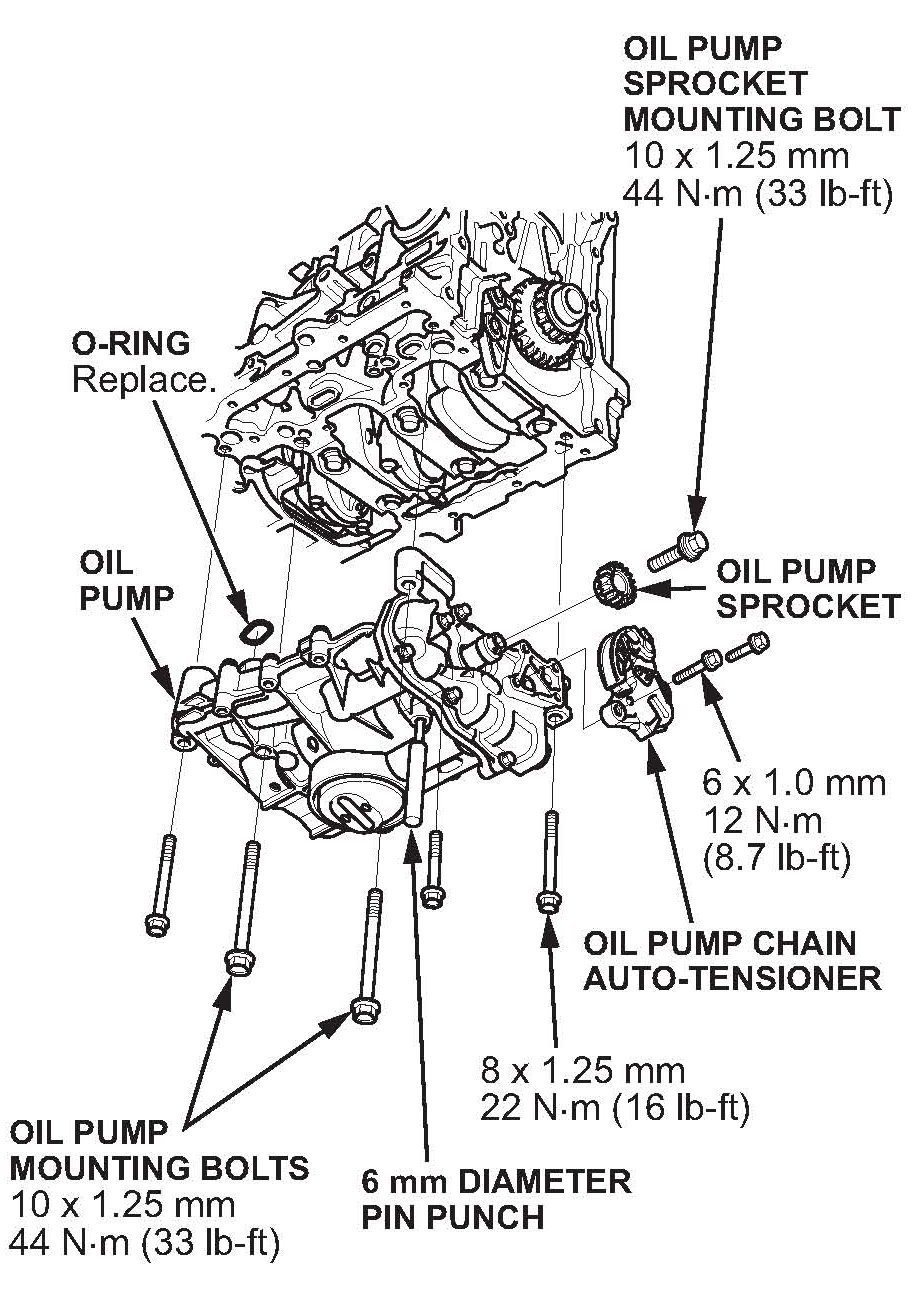

69. Apply new engine oil to the threads of the oil pump mounting bolts and the oil pump sprocket mounting bolt, then loosely install the oil pump with a new O-ring.
70. Torque the oil pump mounting bolts to
44 N.m (33 lb-ft).
71. Install the engine oil pump chain.

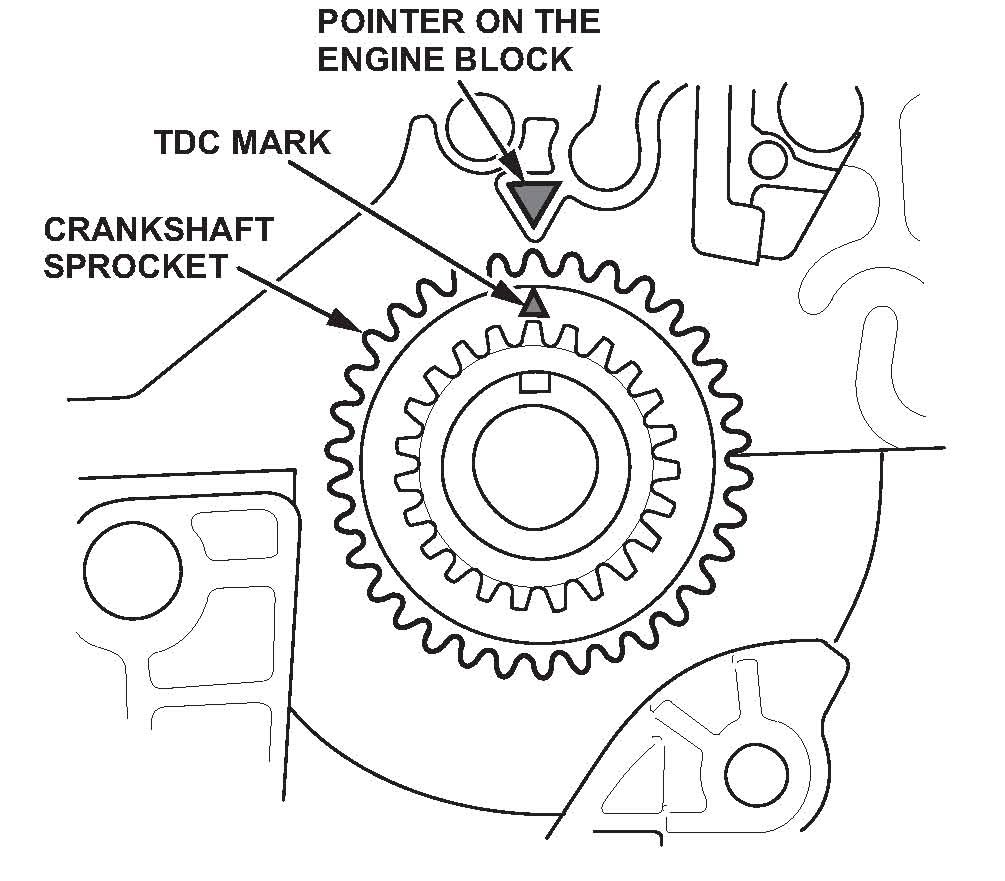

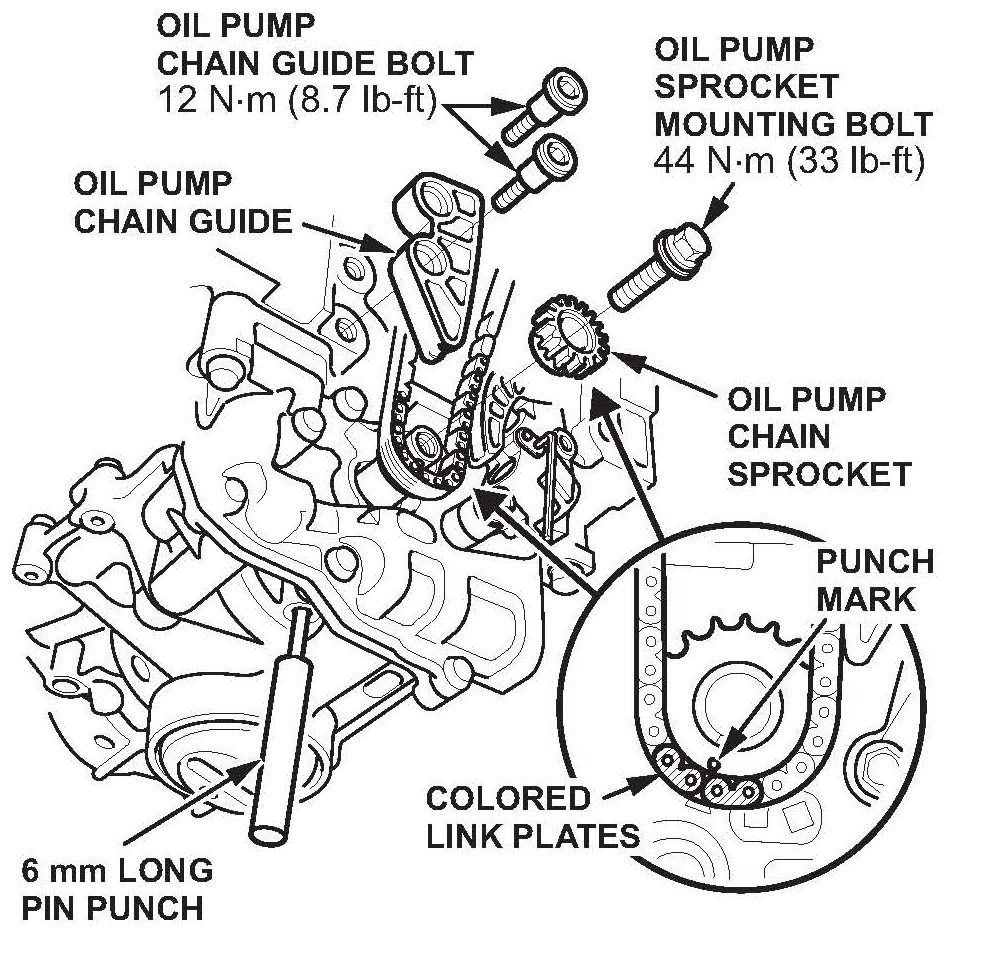

^ Set the crankshaft to top dead center (TDC). Align the TDC mark on the crankshaft sprocket with the pointer on the engine block.

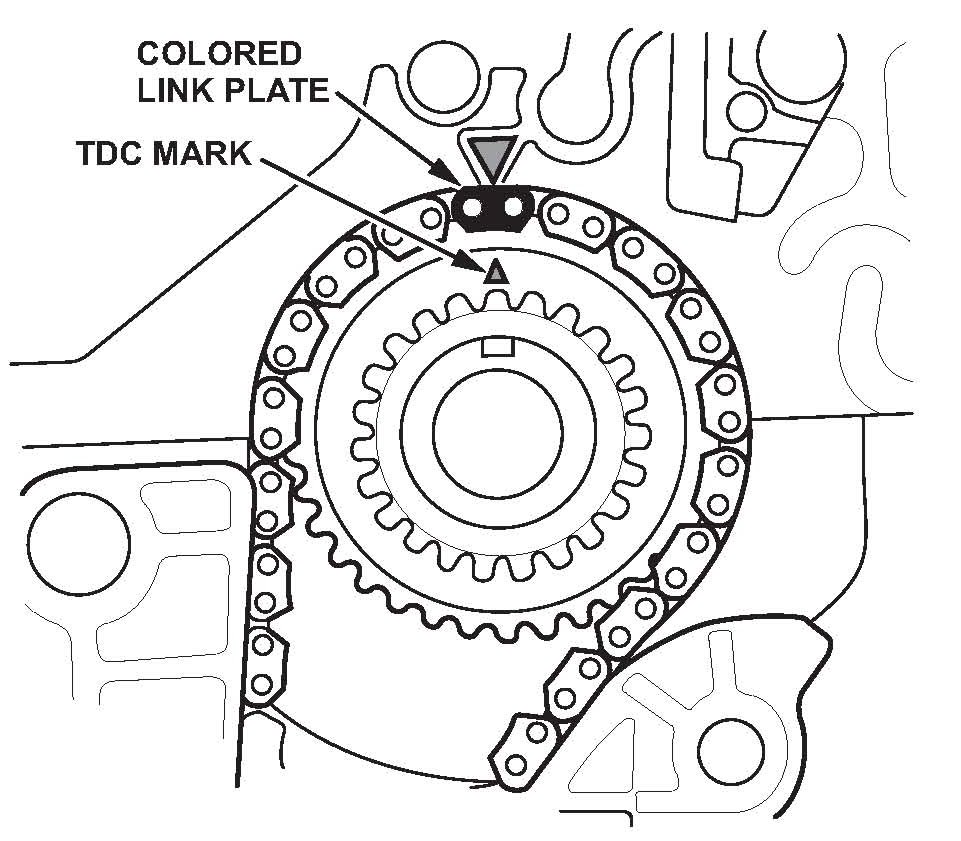

^ Install the oil pump chain on the crankshaft sprocket with the colored link plate aligned with the TDC mark on the crankshaft sprocket.
^ Set the oil pump chain on the oil pump chain sprocket with the punch mark aligned with the center of the colored link plates, then install the oil pump chain sprocket to the oil pump.
^ Apply new engine oil to the threads of the oil pump sprocket mounting bolt, then install it and torque it to 44 N.m (33 lb-ft).
72. Install the oil pump chain auto-tensioner, and torque the bolts to 12 N.m (8.7 lb-ft).
73. Remove the 6 mm (1/4 in.) diameter long pin punch.

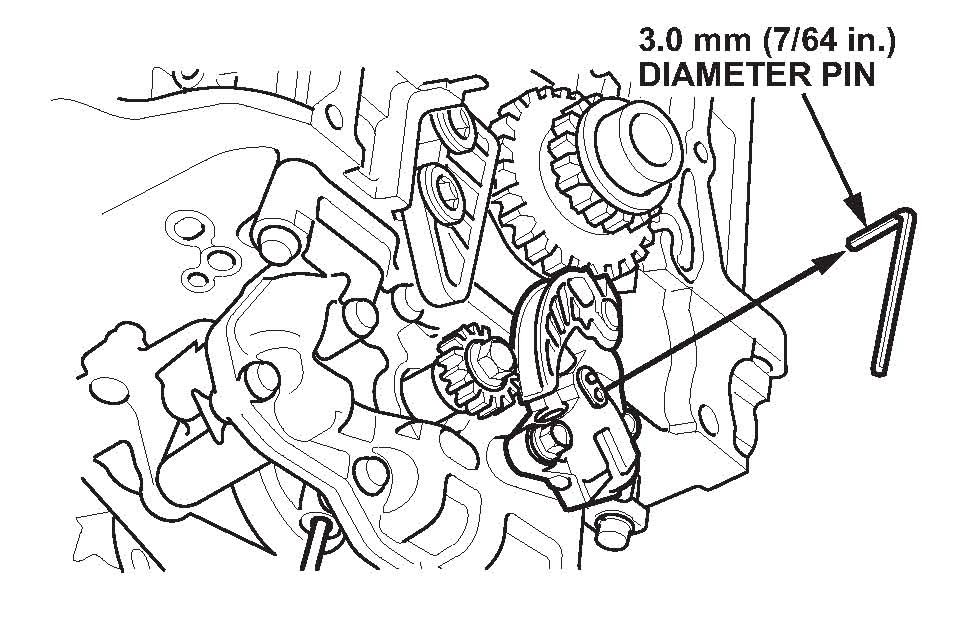

74. Remove the 3.0 mm pin from the oil pump chain auto-tensioner.
75. Remove all of the old liquid gasket from the oil pan mating surfaces, the bolts, and the bolt holes.
76. Clean and dry the oil pan mating surfaces.

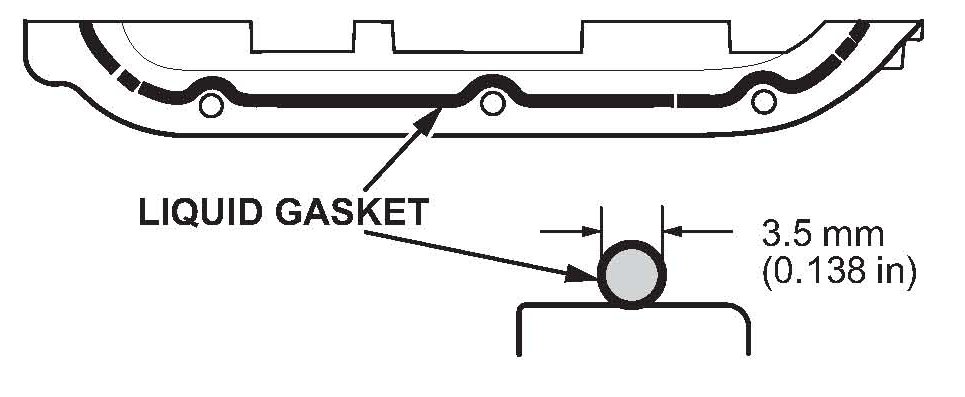

77. Apply liquid gasket, P/N 08717-0004, 08718-0003, or 08718-0009, to the engine block mating surface of the oil pan and to the inside edge of the threaded bolt holes. Install the component within 5 minutes of applying the liquid gasket.
78. Install the oil pan to the engine block.

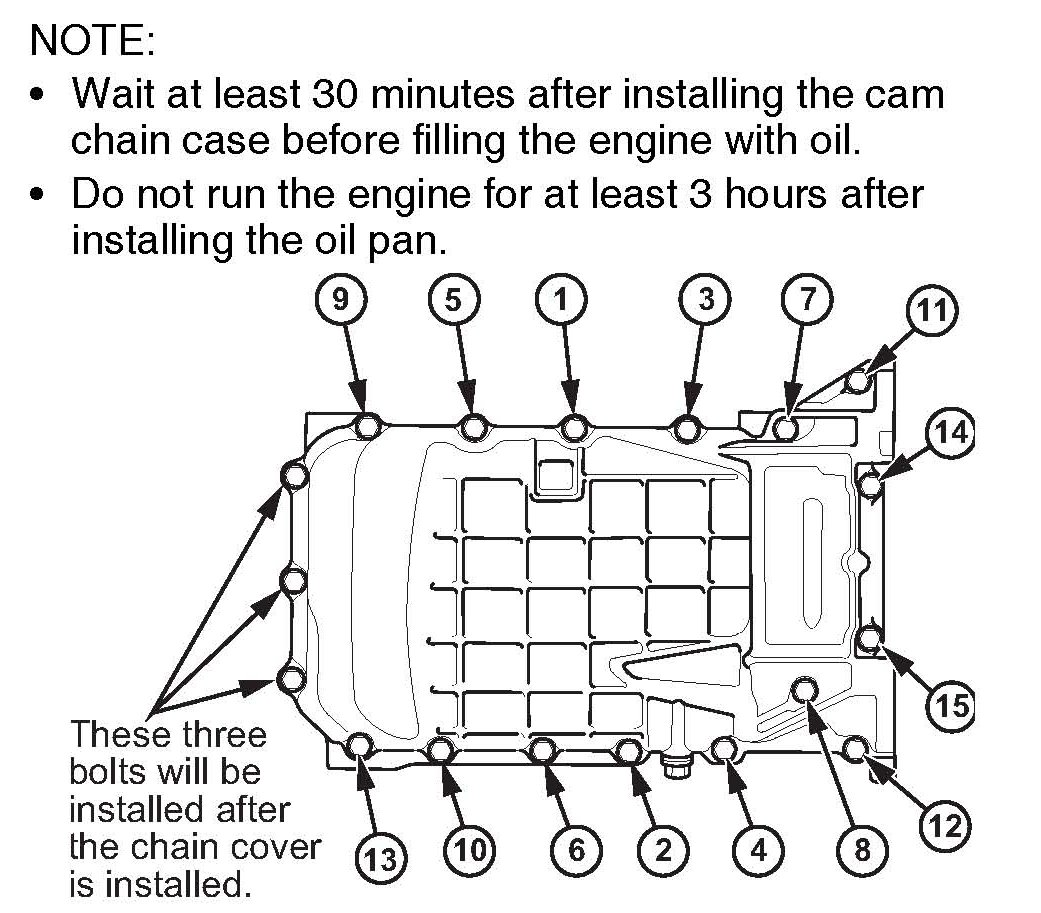

79. Tighten the bolts in three steps. In the final step, torque all bolts, in sequence, to 12 N.m (9 lb-ft).
80. Install a new oil filter.
81. Reinstall the torque converter or clutch case cover and torque the bolts to 12 N.m (8.7 lb-ft). Reinstall the two bolts securing the oil pan to the transmission and torque them to 64 N.m (47 lb-ft).
82. With A/T: Reinstall the shift cable cover, and torque the bolts to 12 N.m (9 lb-ft).
83. Reinstall the cylinder head with a new gasket.
^ Measure the diameter of each cylinder head bolt at point A and point B.
^ If either diameter is less than 10.8 mm (0.417 in), replace the cylinder head bolt.
^ Apply new engine oil to the threads and under the bolt heads of all cylinder head bolts.

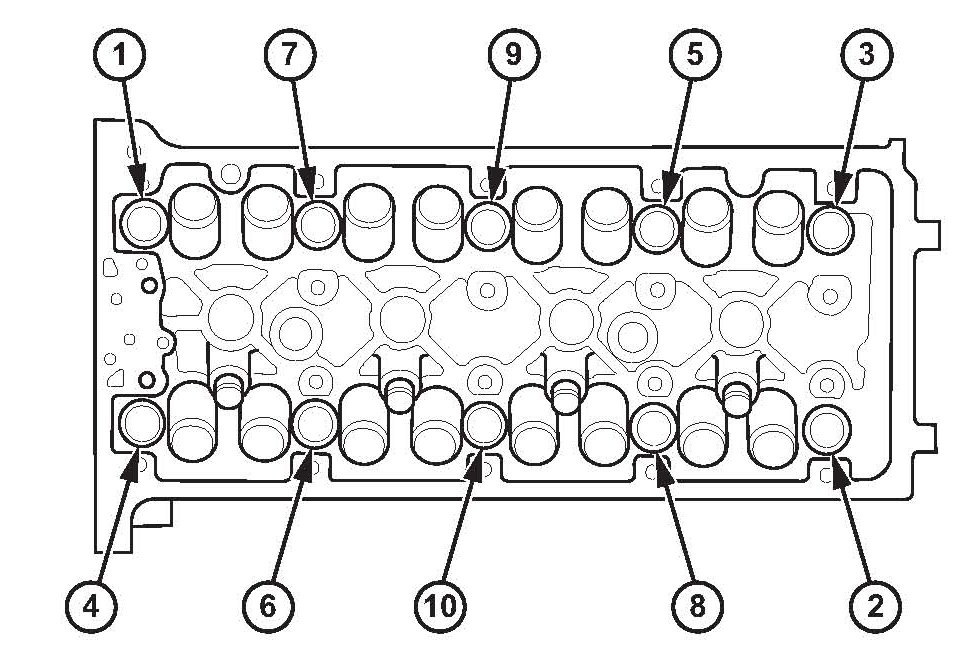

^ Torque the cylinder head bolts in sequence to 39 N.m (20 lb-ft). When using a preset click-type torque wrench, be sure to tighten slowly and do not overtighten. If a bolt makes any noise while you are torquing it, loosen the bolt and retighten it from the first step.

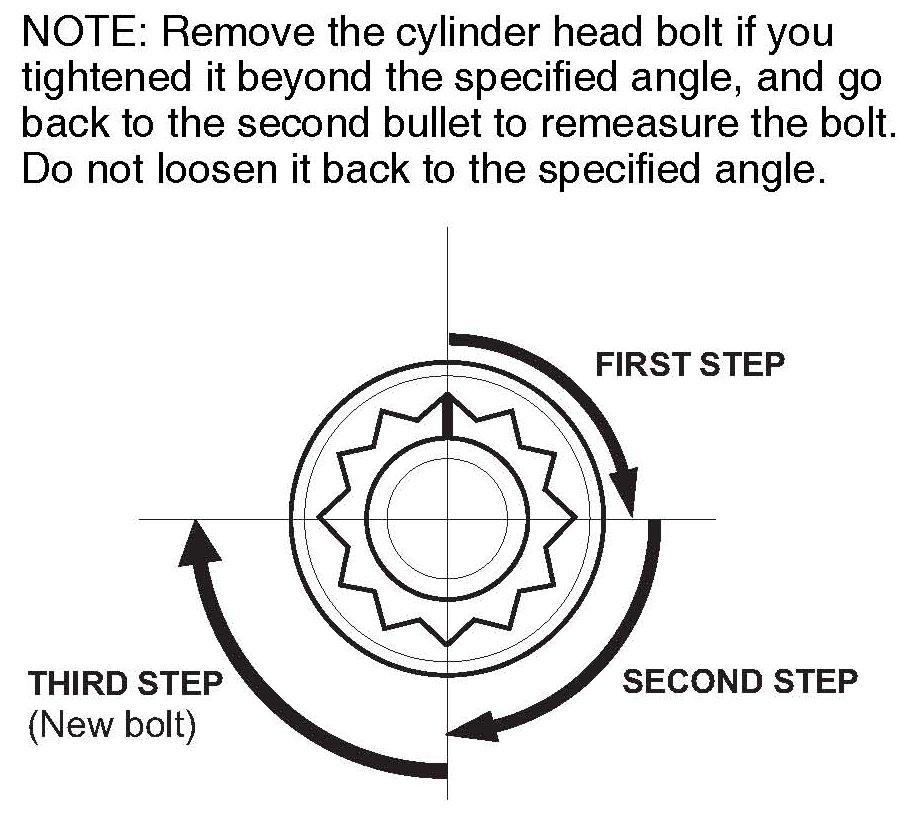

^ After torquing, tighten all cylinder head bolts in two steps (900 per step) using the sequence shown above. If you are using a new cylinder head bolt, tighten the bolt an extra 90°.
84. Reinstall the rocker arm assembly and the cam shafts.
85. Reinstall the cam chain.

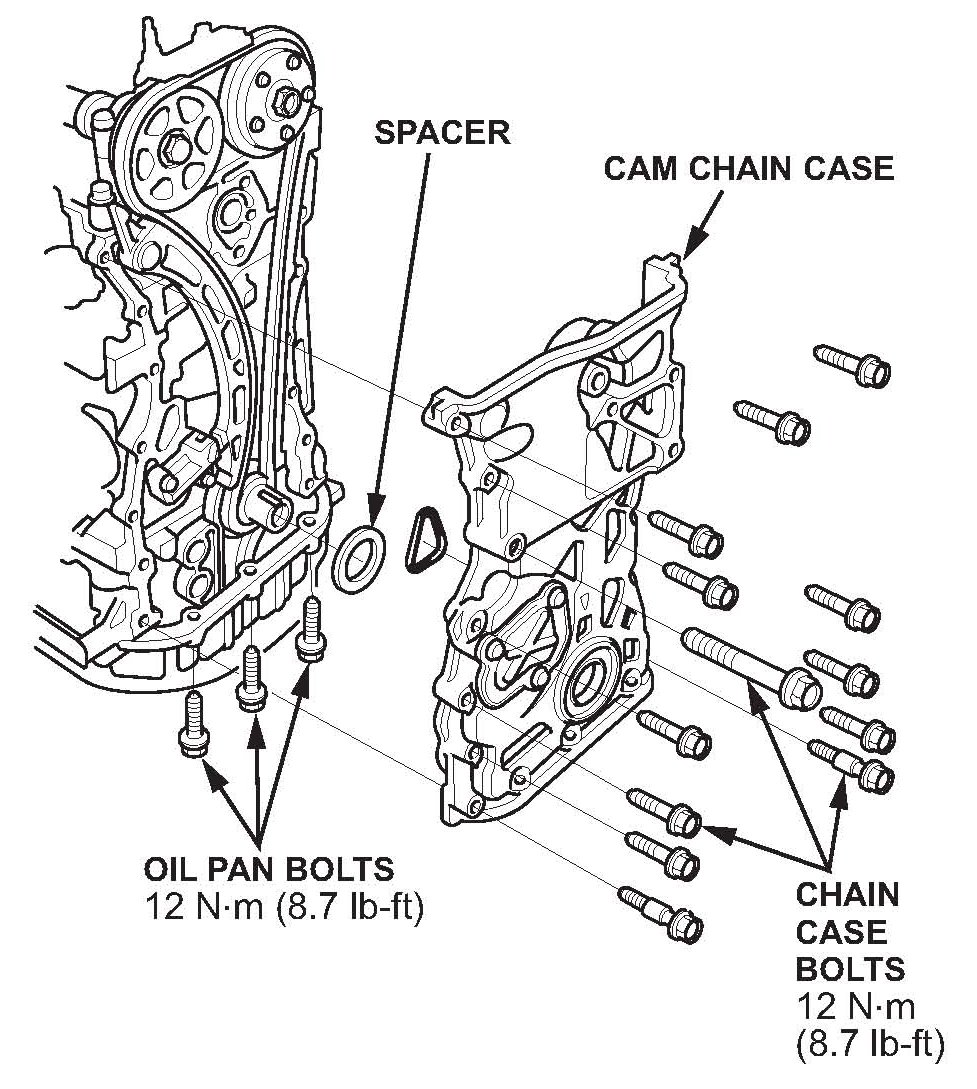

86. Apply liquid gasket to the oil pan where it meets the cam chain case and to the inside edge of the threaded bolt holes. Install the cam chain case within 5 minutes of applying the liquid gasket.

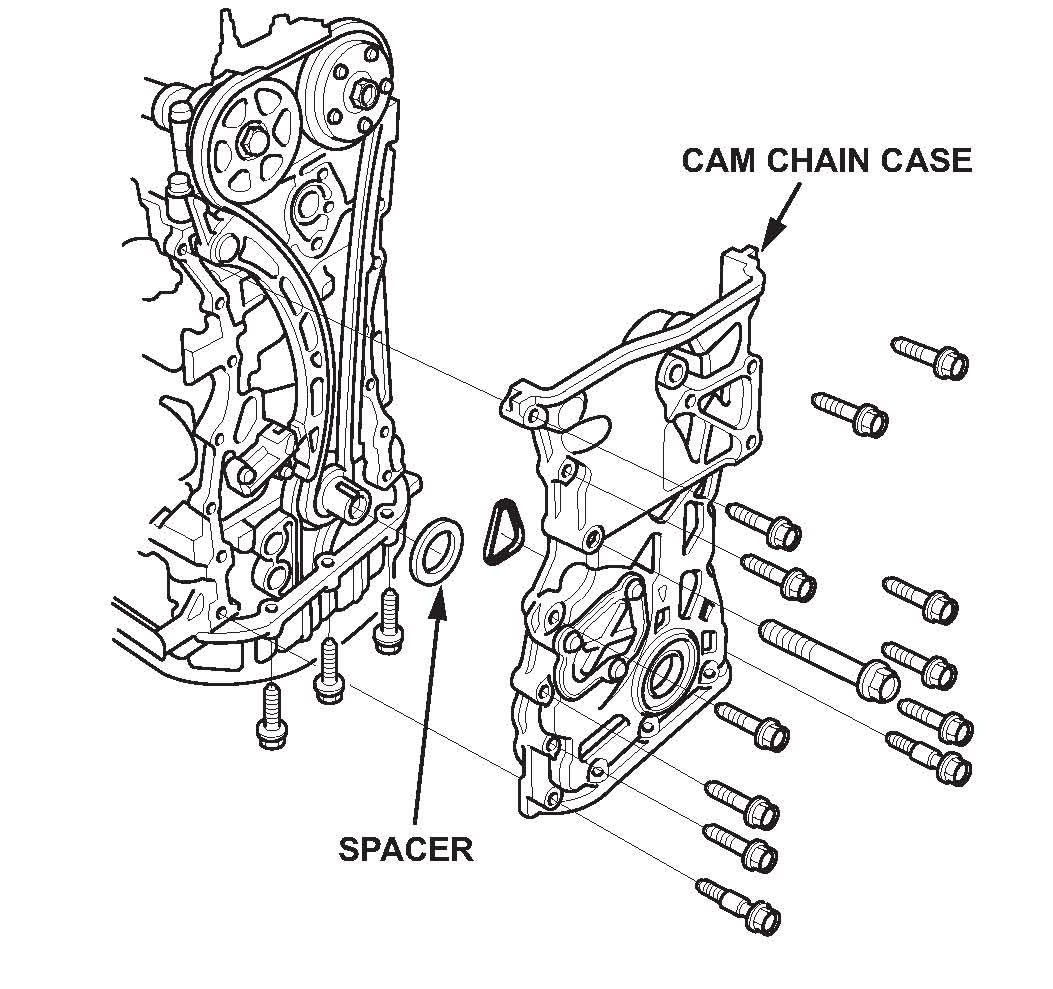

87. Install the cam chain case.
88. Adjust the valves.
89. Reinstall the cylinder head cover.
90. Reinstall the connecting pipe.
91. Reinstall the radiator hoses, the heater hoses, and the water bypass hose.
92. Reinstall the EVAP canister purge valve bracket.
93. Connect the four fuel injectors, the engine mount control solenoid connector, and the ground cables.
94. Reconnect the fuel feed hose and the quick-connect fitting cover.
95. Reconnect the EVAP canister hose.
96. Reinstall the warm up TWC with new gaskets and nuts.
97. Install the intake manifold using new gaskets.
98. Reinstall the drive belt.
99. Fill the engine with coolant.
100. Reinstall the strut brace (if equipped), and torque the bolts to 22 N.m (16 lb-ft).
101. Fill the engine with oil.
102. Do the battery terminal reconnection procedure.
103. Crank the engine for about 5 seconds to prime the engine with oil pressure before plugging in the ignition coils.
104. Reconnect the four ignition coils.
105. Do the idle learn procedure.
ORDERING PISTONS
Every engine has some combination of A- and B-sized pistons. You can determine the sizes and their locations in the block by inspecting the markings on the timing chain end of the engine block or by looking at the pistons. Use the block as your guide to order pistons before you start work on the vehicle.
If you look at the piston, the pistons have identifiers; "A" pistons may or may not be marked; "B" pistons are marked with a "B". Pistons can be ordered prior to engine disassembly.
Disclaimer
