Engine Wire Harness (A/T), Knock Sensor Subharness
Engine Wire Harness (A/T), Knock Sensor Subharness
Connector and Harness Locations

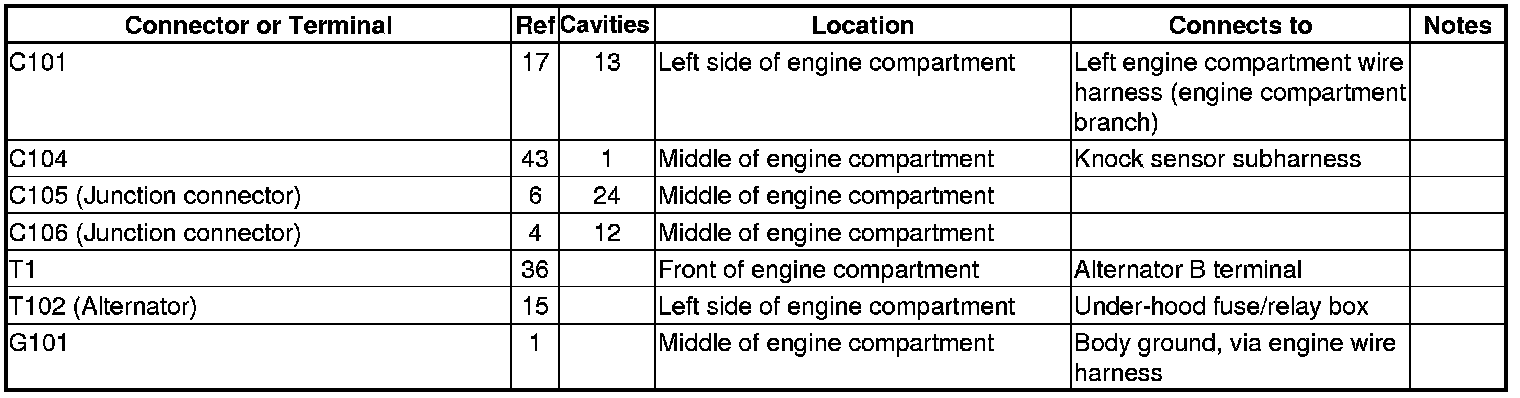

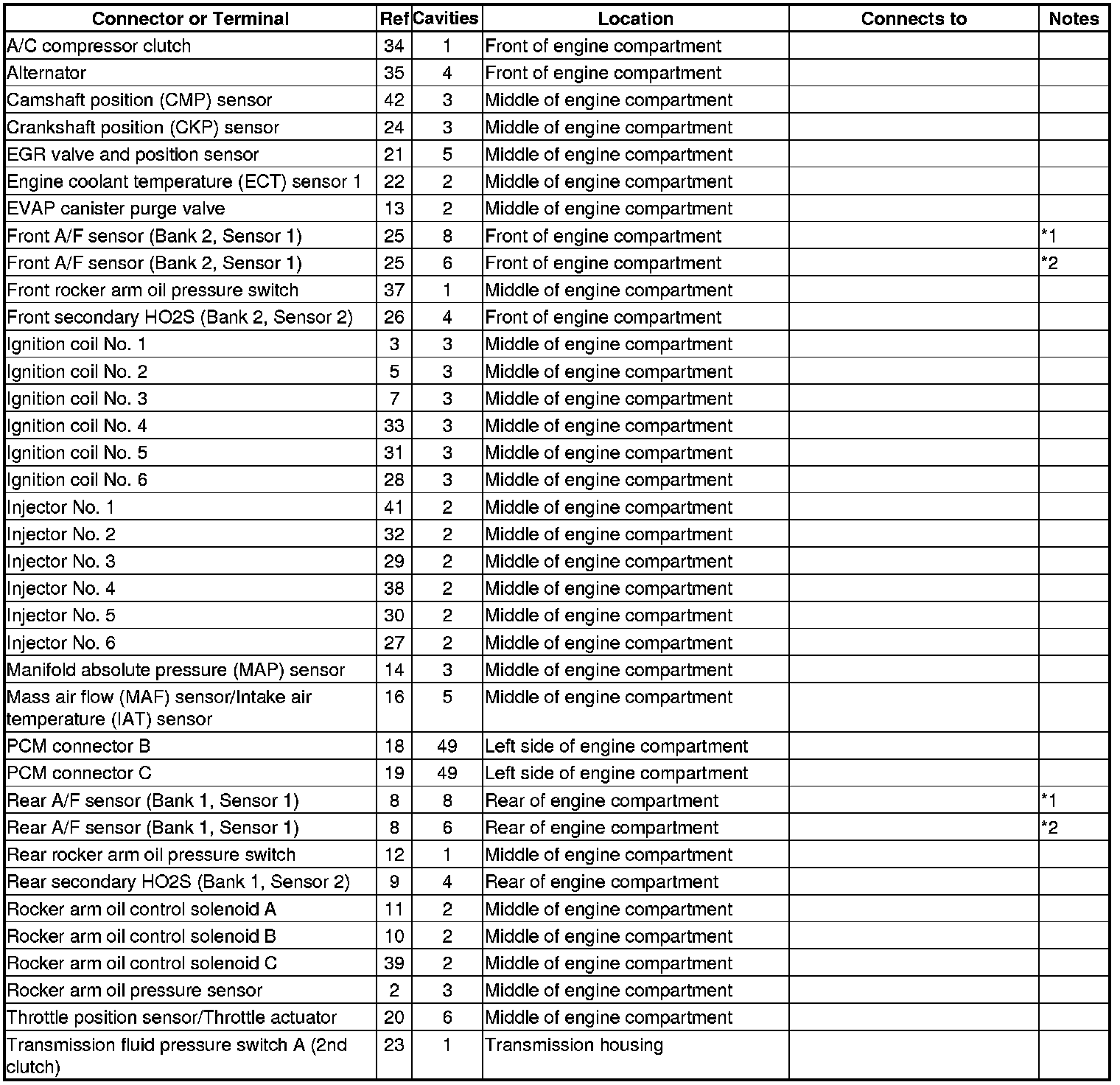

Engine Wire Harness (A/T)

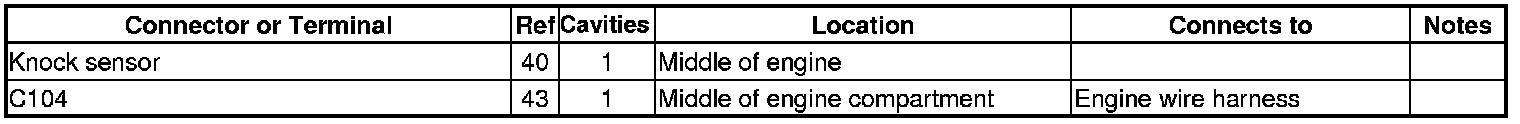

Knock Sensor Subharness
Harness View
