Engine Wire Harness (M/T), Knock Sensor Subharness
Engine Wire Harness (M/T), Knock Sensor Subharness
Connector and Harness Locations

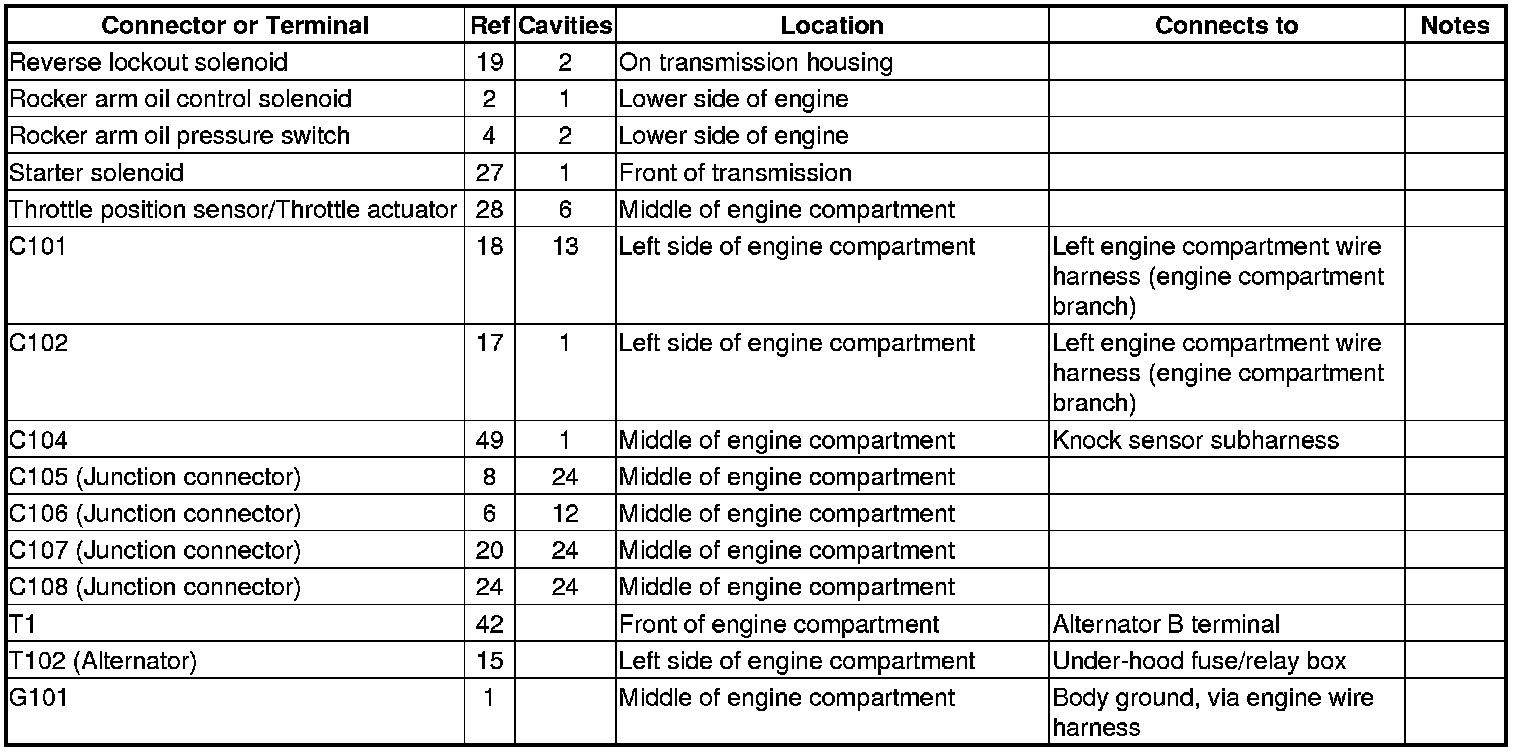

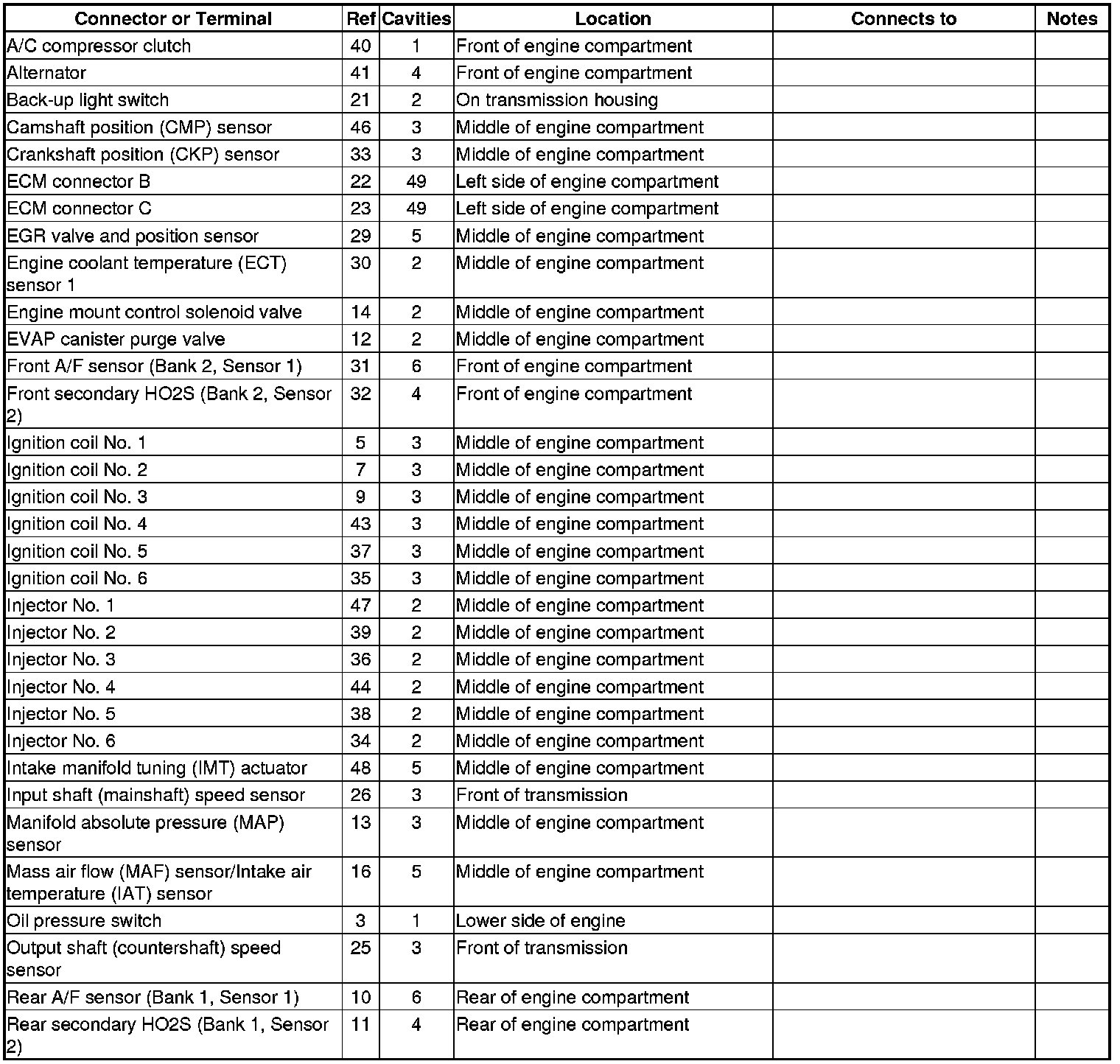

Engine Wire Harness (M/T)

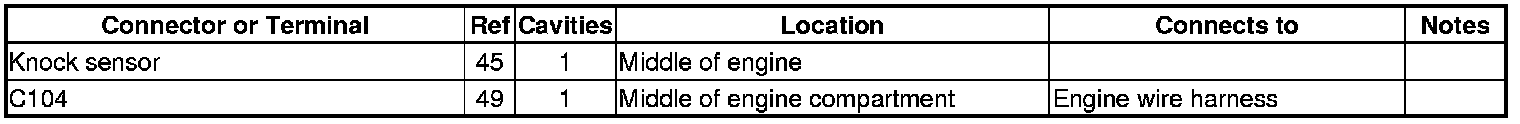

Knock Sensor Subharness

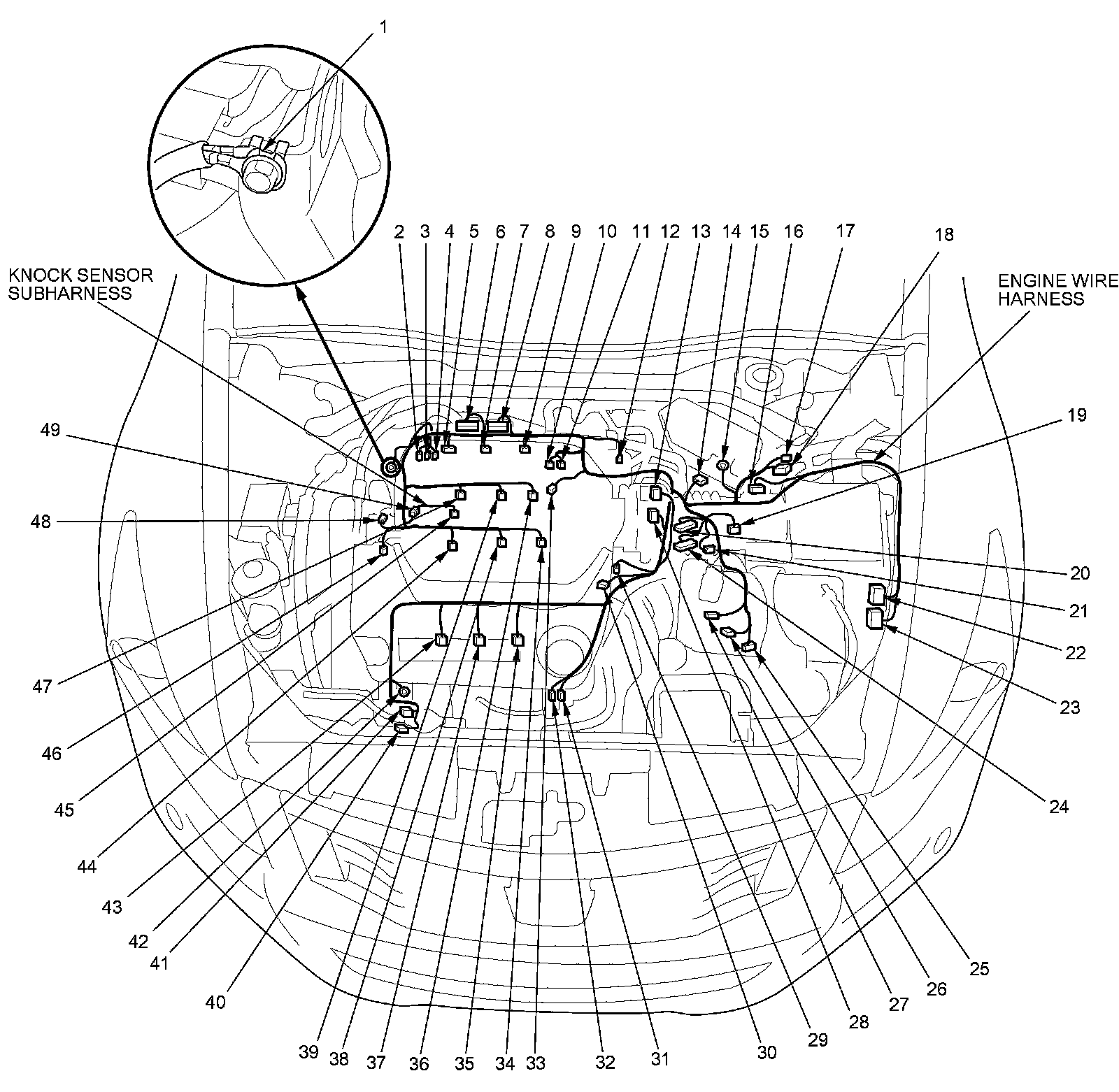

Harness View
