Home >> Honda >> 2010 >> Accord V6-3.5L >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Wire Harness (Transmission Section) And Shift Solenoid Wire Harness Connector And Harness Locations (A/T)

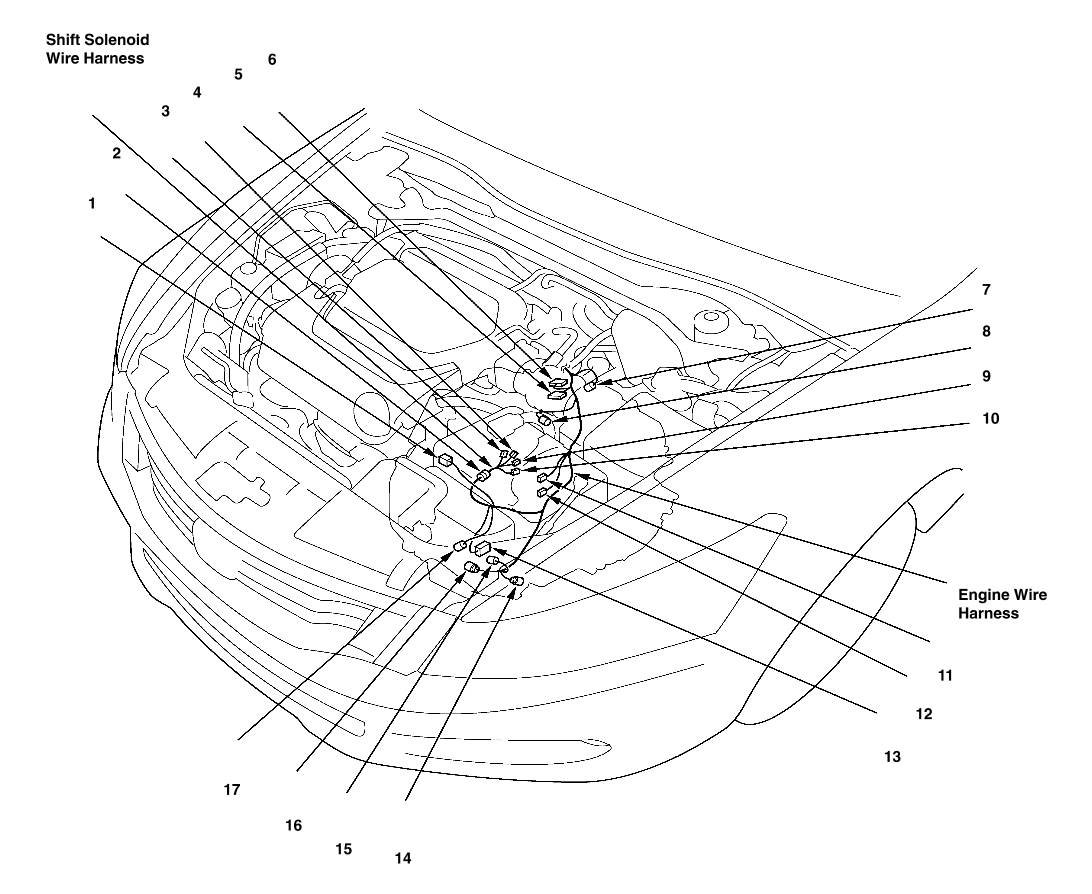

Engine Wire Harness (Transmission Section) And Shift Solenoid Wire Harness Connector And Harness Locations (A/T)
