Home >> Honda >> 2010 >> Accord V6-3.5L >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Wire Harness And Knock Sensor Subharness Connector And Harness Locations (A/T)

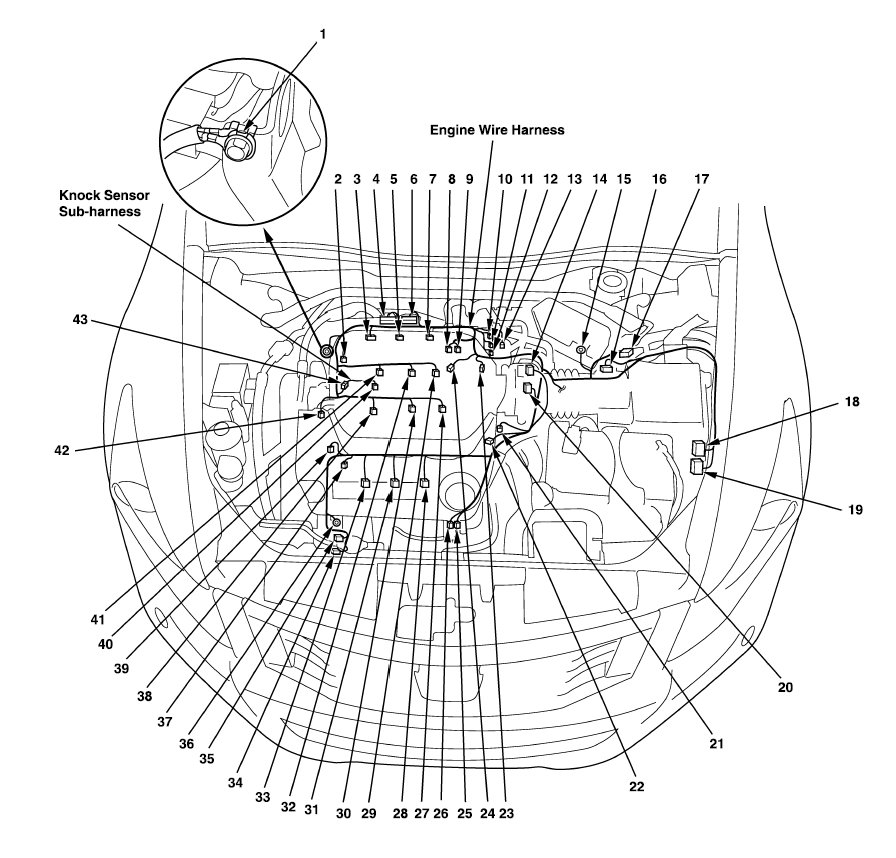

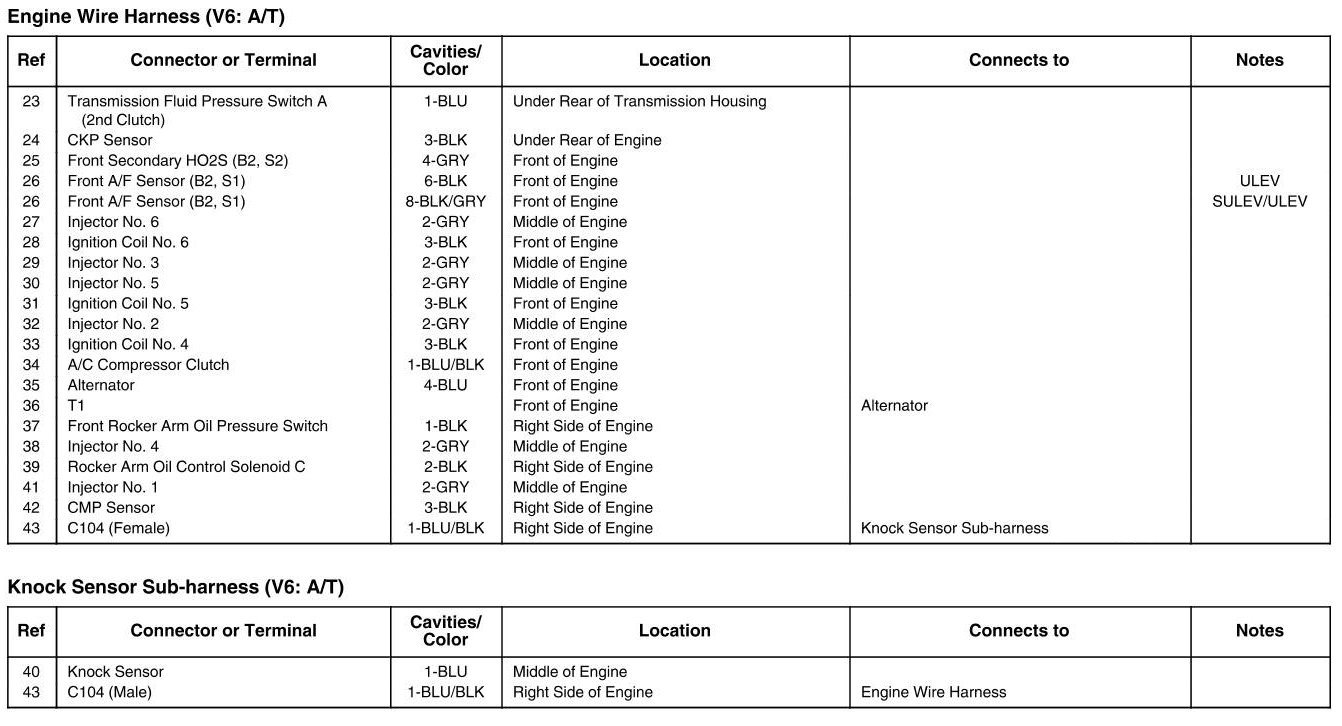

Engine Wire Harness And Knock Sensor Subharness Connector And Harness Locations (A/T)
