Front and Rear ACM (A/T), Left Fog Light (Canada) Subharness




Connector and Harness Locations

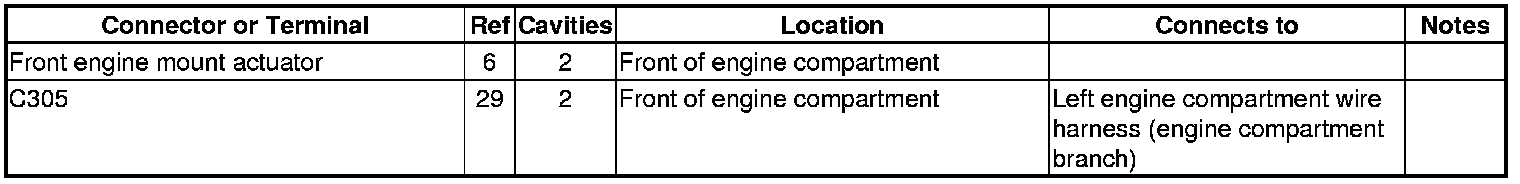

Front ACM Subharness (A/T)

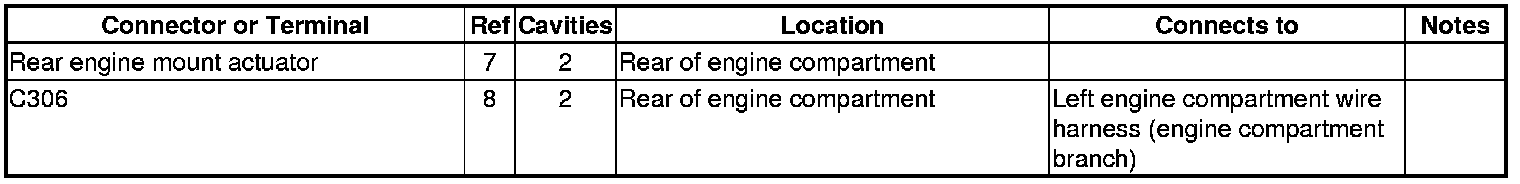

Rear ACM Subharness (A/T)

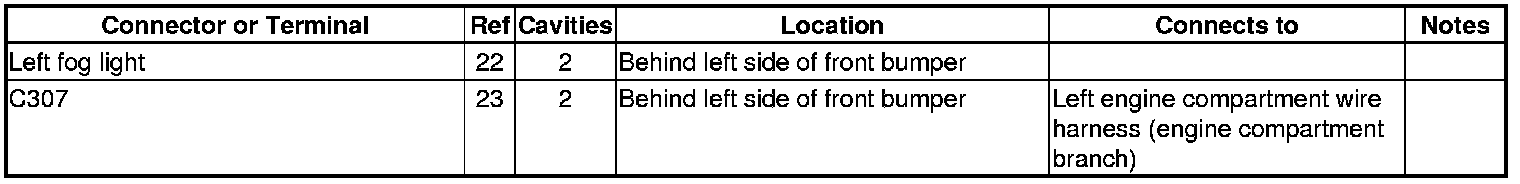

Left Fog Light Subharness (Canada models)






Harness View
