Powertrain Management




Fuel and Emissions System Description - Fuel and Emissions Systems Diagram

Fuel and Emissions Systems Diagram

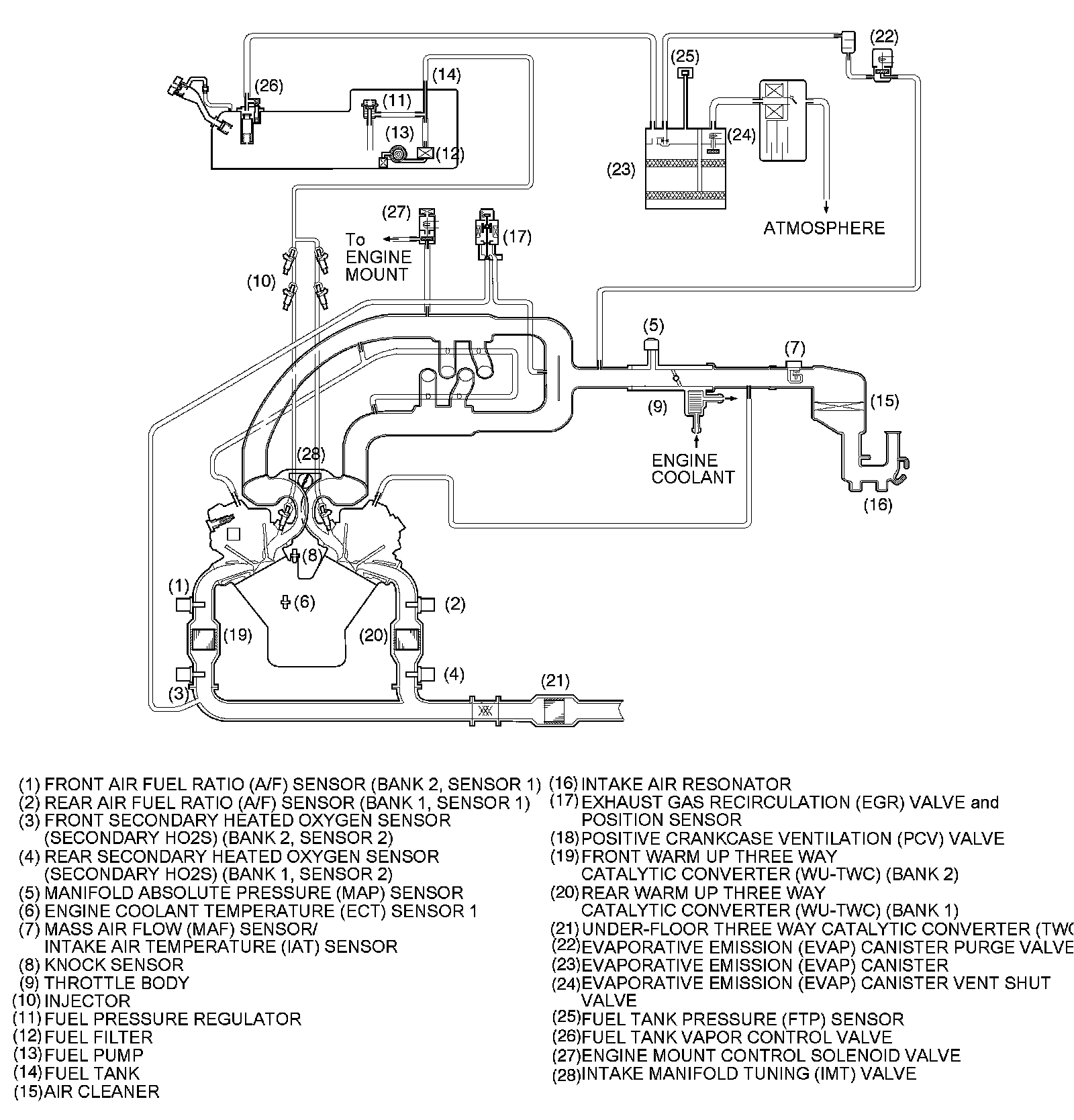

J35Z2 engine

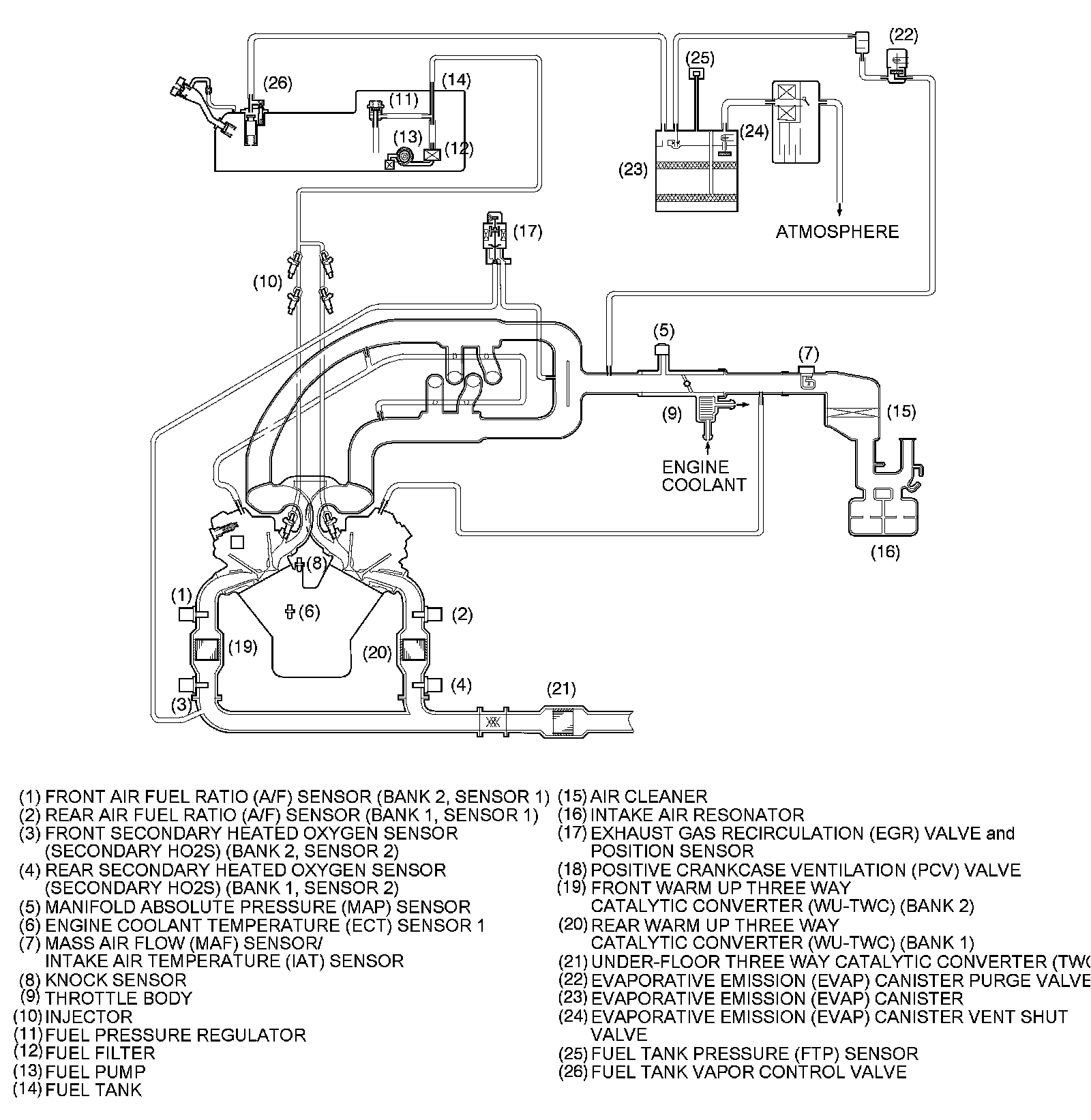

J35Z3 engine





Vacuum Hose Routing

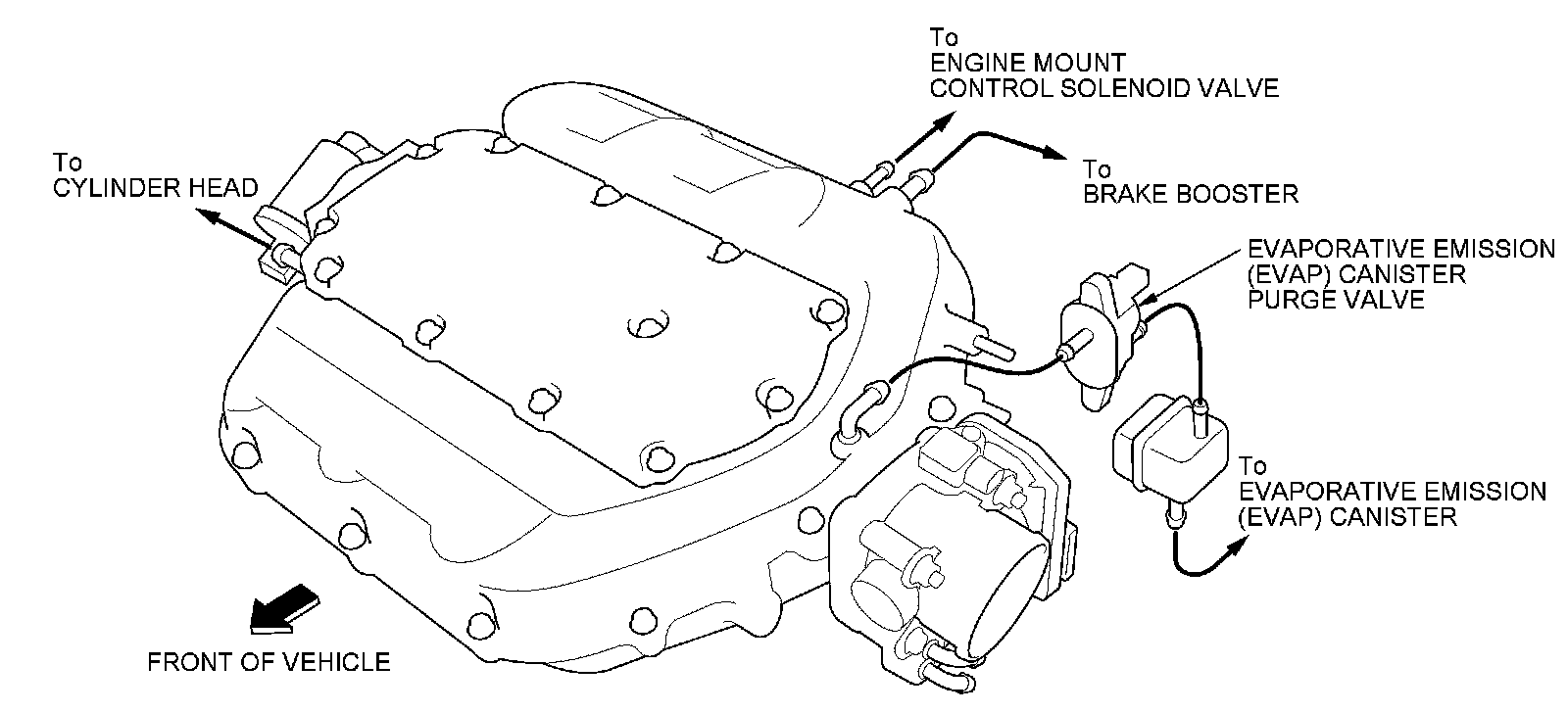

J35Z2 engine

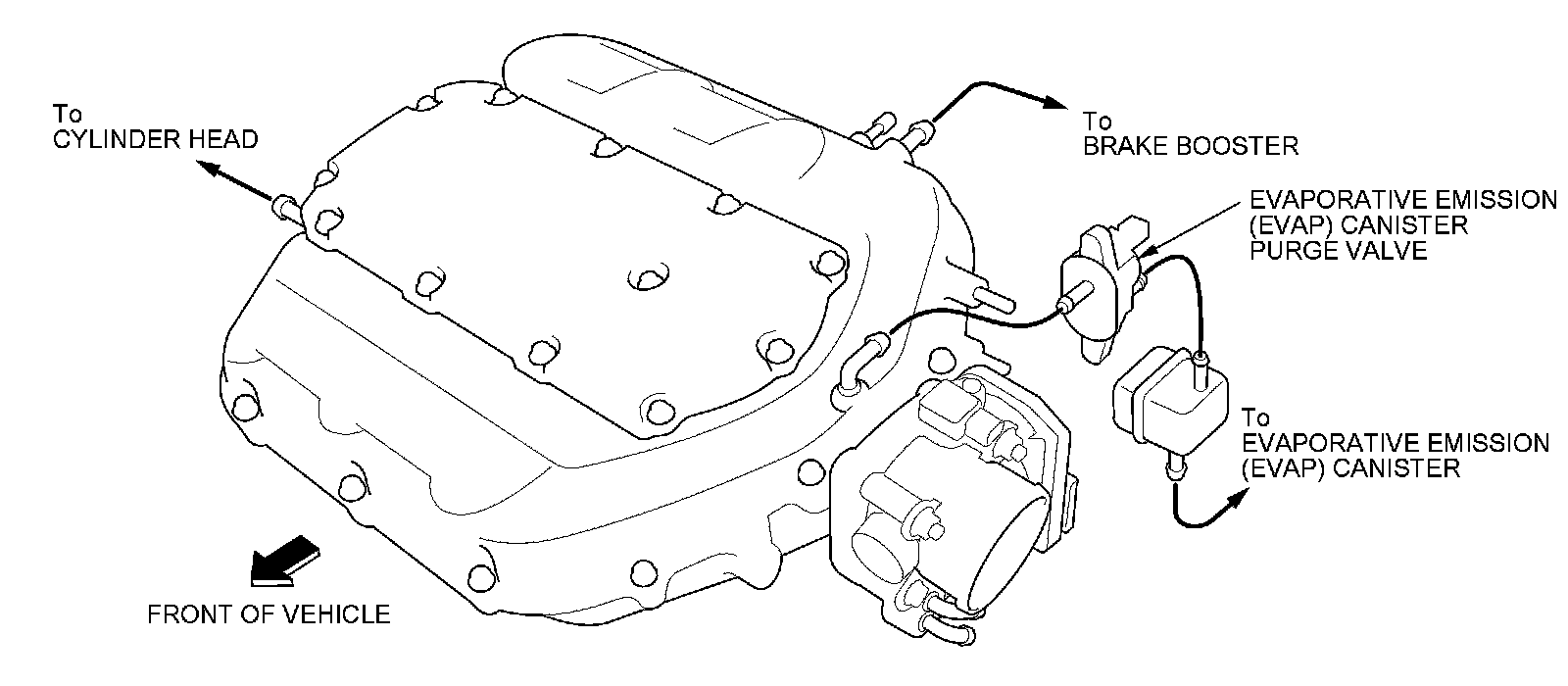

J35Z3 engine
