Valve Inspection (J35Z2 Engine)

Valve Inspection

1. Remove the valves Valve, Spring, and Valve Seal Removal (J35Z2 Engine).

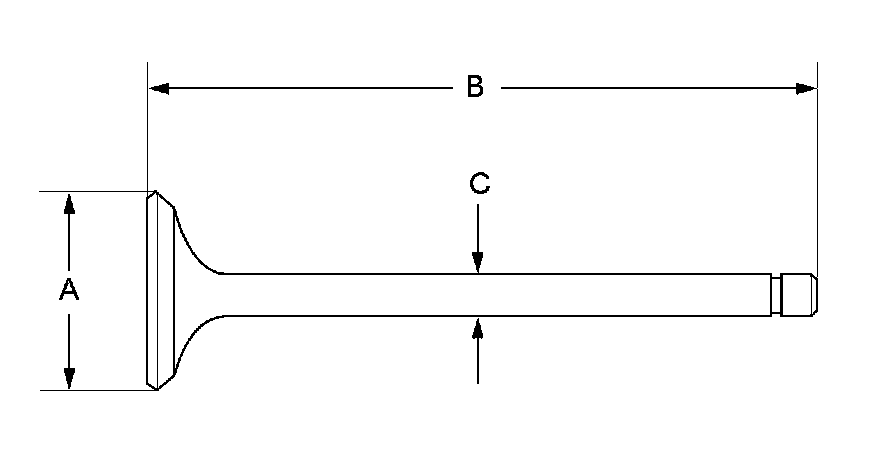

2. Measure the valve in these areas.

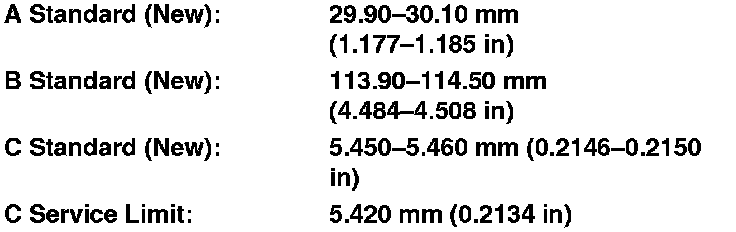

Intake Valve Dimensions





Exhaust Valve Dimensions
