Fog Light Replacement

Fog Light Replacement

1. Remove the front bumper Service and Repair, and disconnect the connectors from the fog lights.

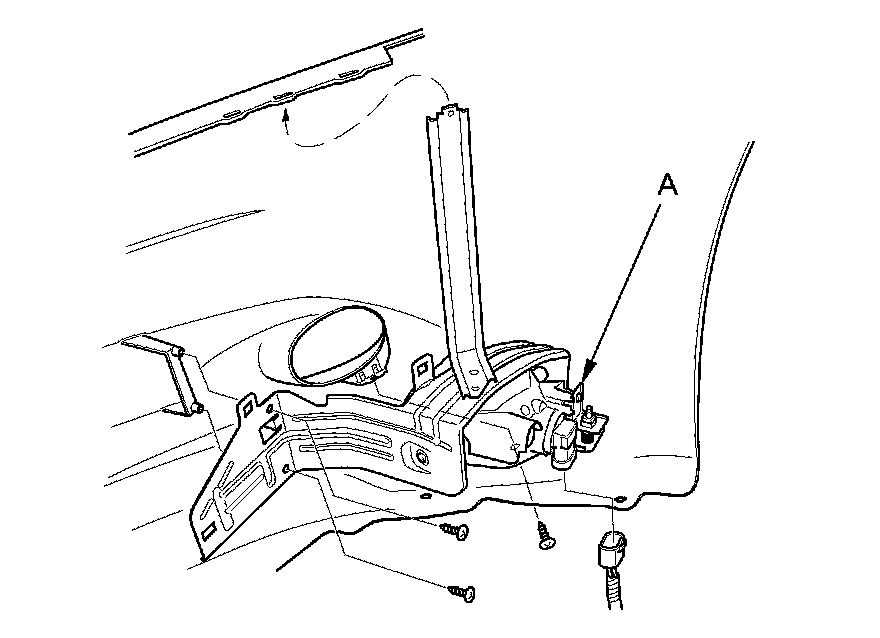

2. Remove the three screws, then remove the fog light (A) from the front bumper.

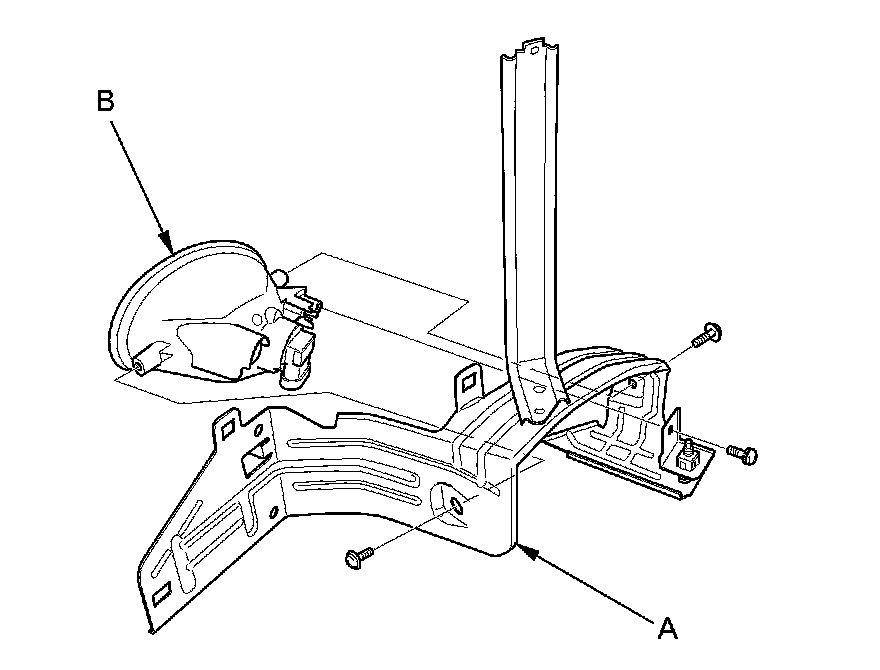

3. Remove the three screws, and separate the bracket (A) and the fog light (B).





4. Install the light in the reverse order of removal.

5. After replacement, adjust the fog lights to local requirements.
