Starter, Battery, Engine, Transmission Ground Cable

Connector and Harness Locations

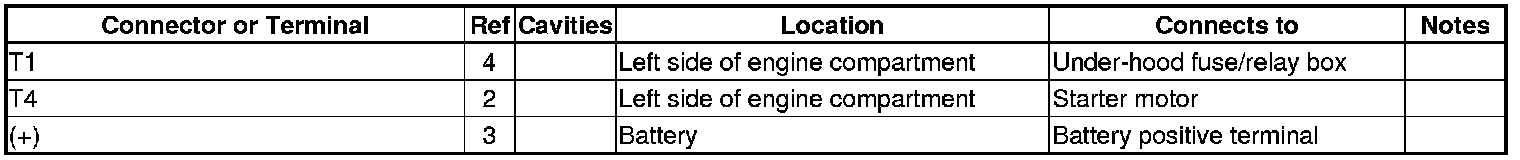

Starter Cable

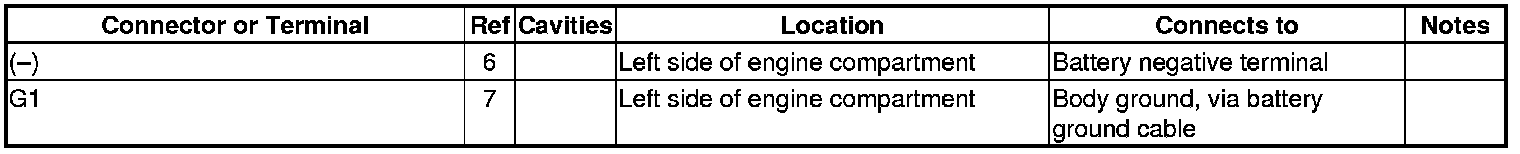

Battery Ground Cable

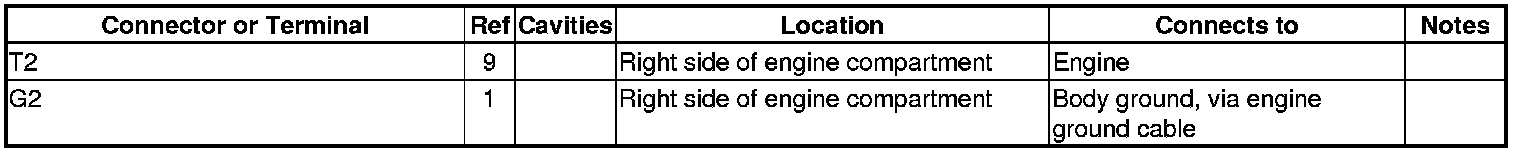

Engine Ground Cable

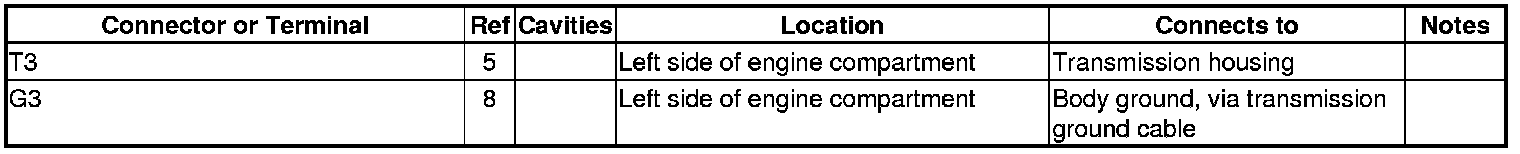

Transmission Ground Cable

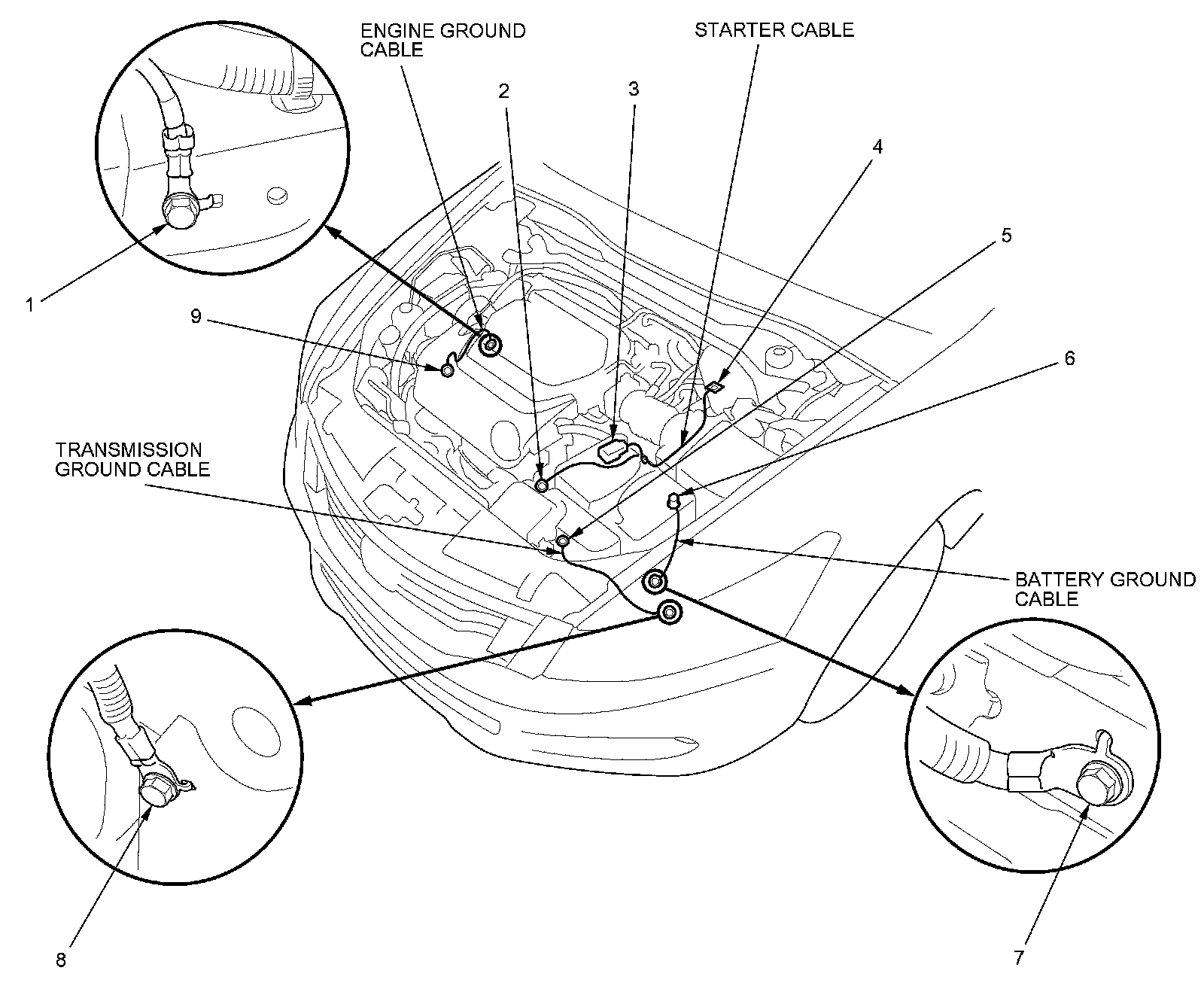

Harness View
