Relay and Control Unit Locations - Seat




Relay and Control Unit Locations - Seat

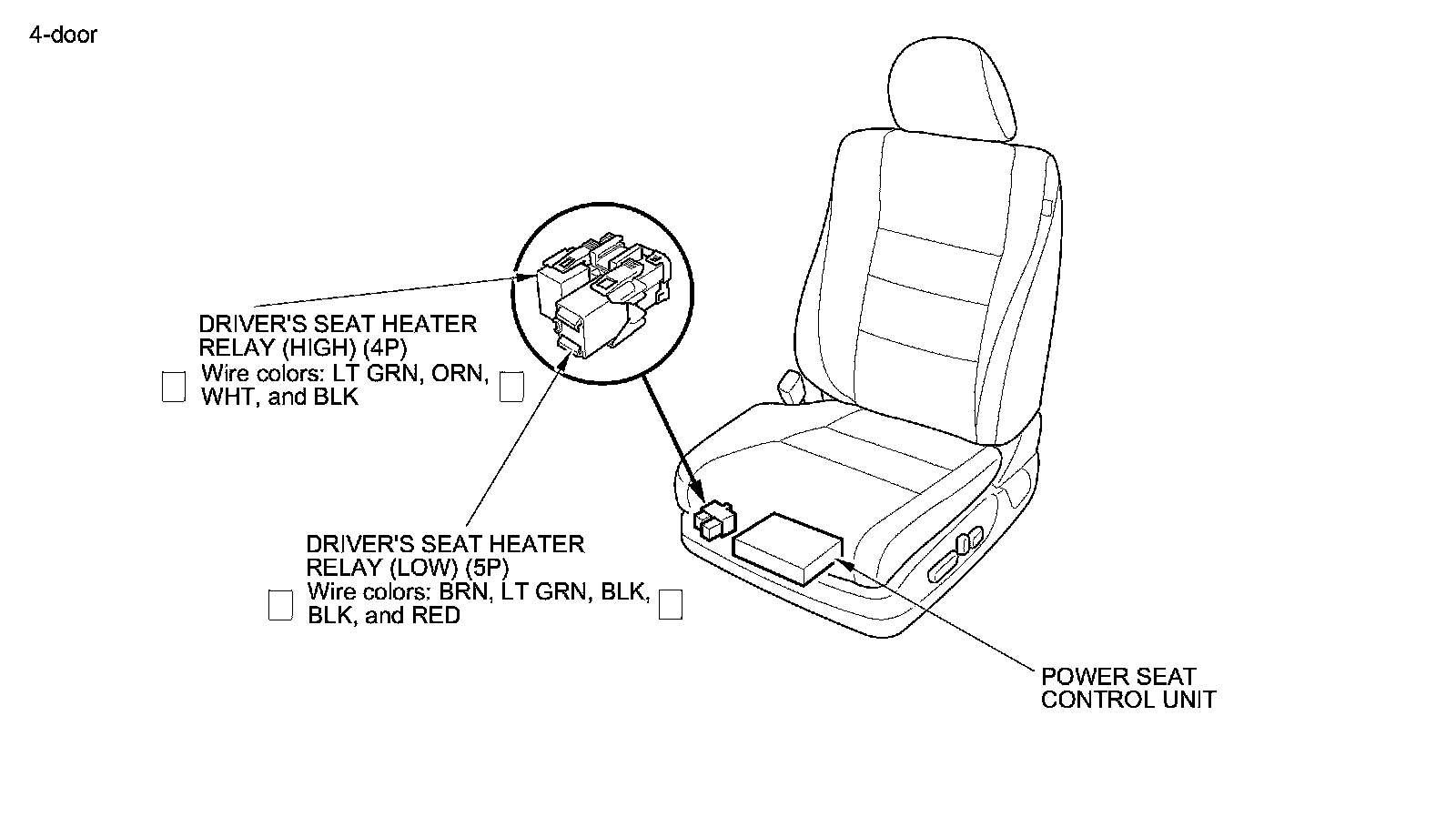

Driver's Seat (With DPMS)

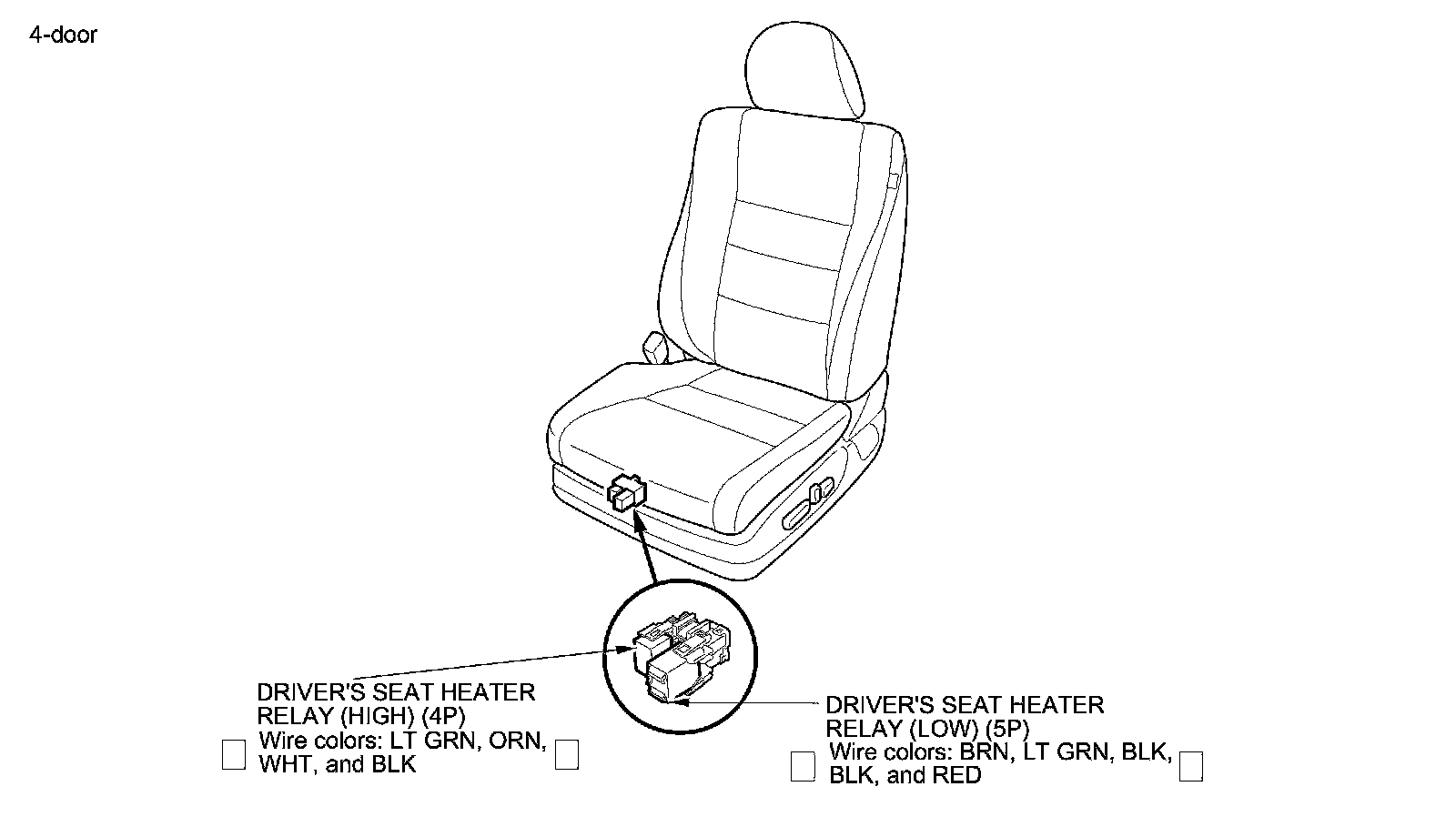

Driver's Seat (Without DPMS)

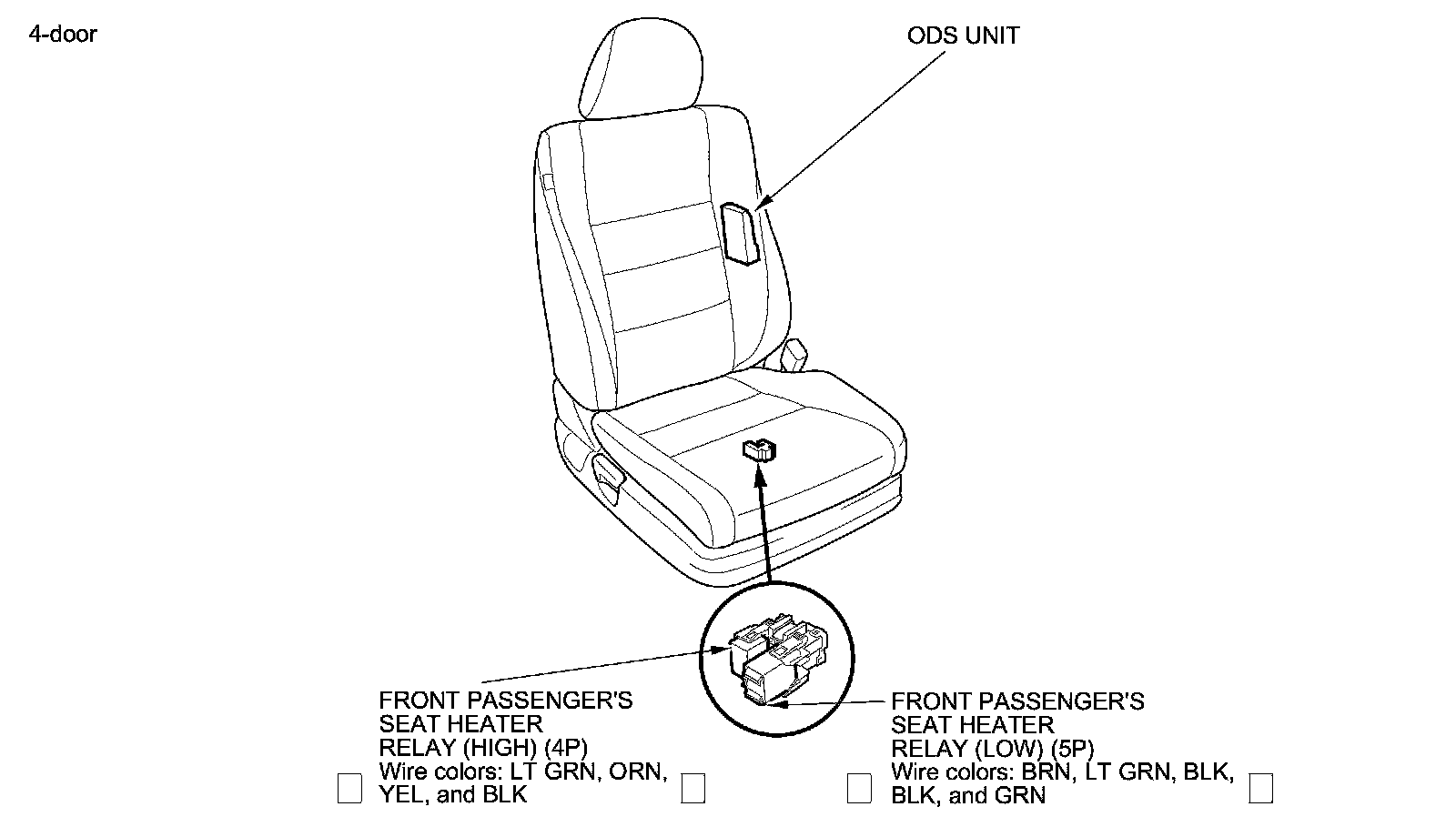

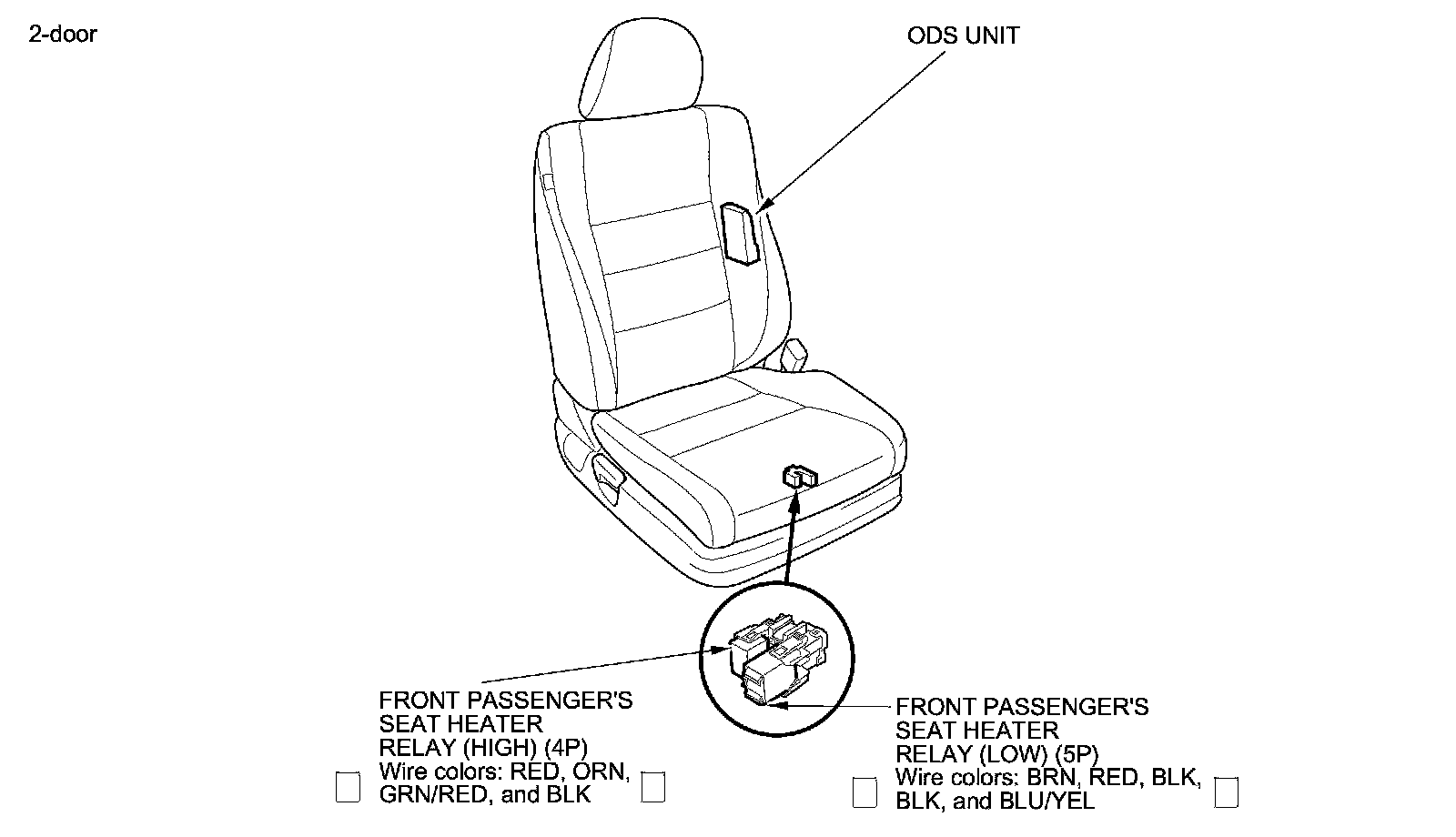

Front Passenger's Seat
