Wipers/Washers (Drivers and Passengers MICU) Input Test

Wipers/Washers (Driver's and Passenger's MICU) Input Test

NOTE: Before testing, troubleshoot the multiplex integrated control unit first, using B-CAN System Diagnosis Test Mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.

Driver's MICU

1. Turn the ignition switch to LOCK (0), and remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

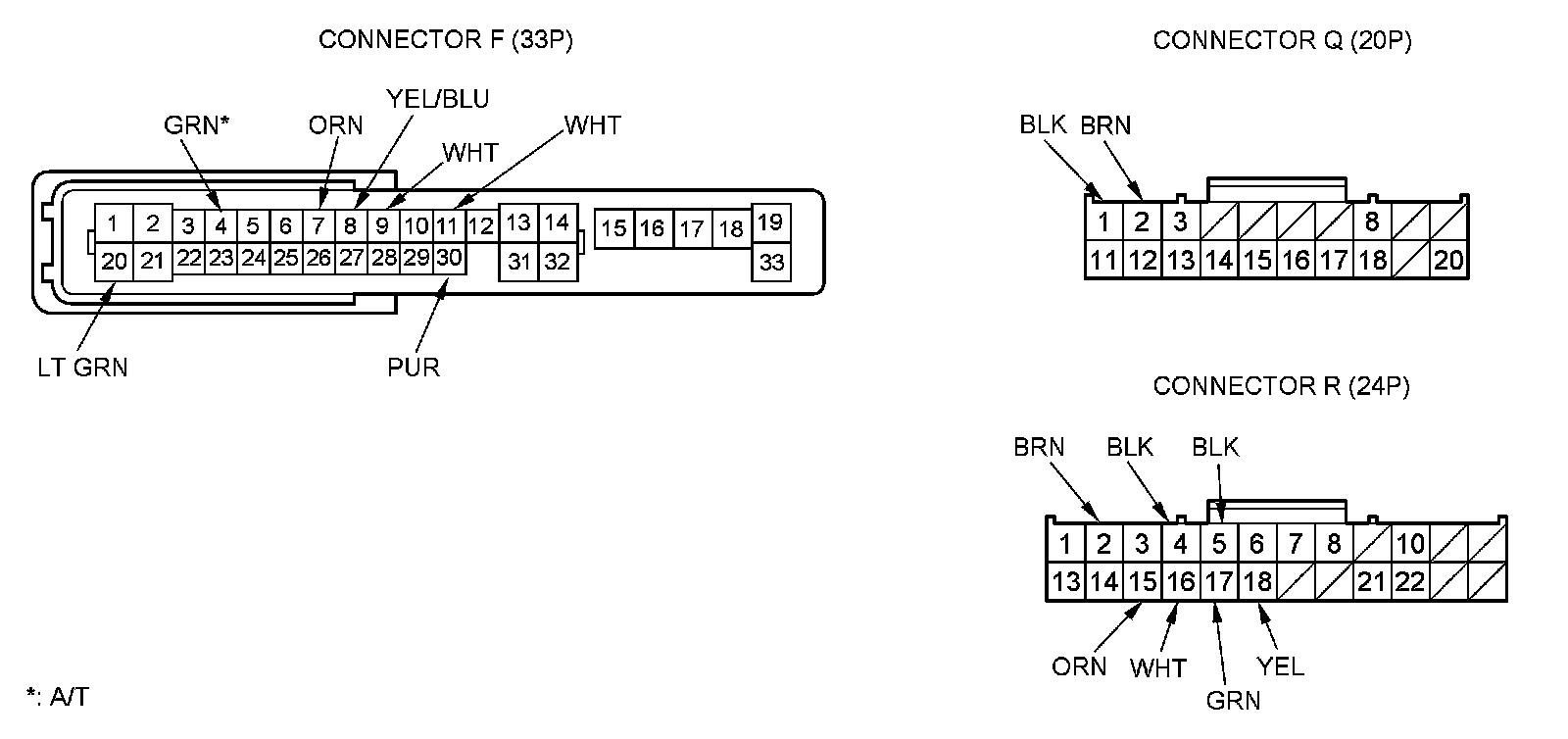

2. Disconnect driver's under-dash fuse/relay box connectors F, Q, and R.

NOTE: All connector views are wire side of female terminals.





3. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 4.

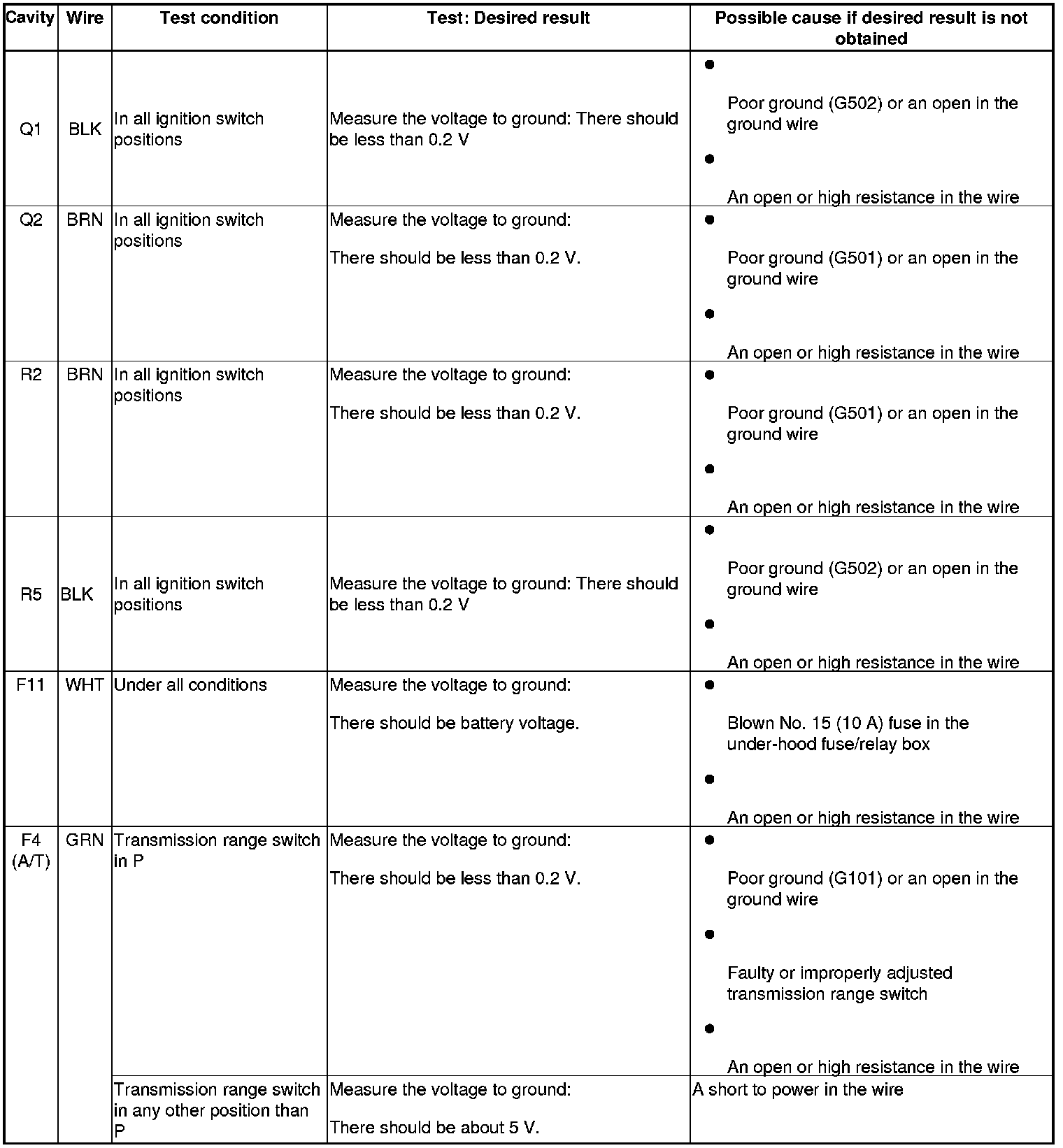

4. With the connectors still disconnected, do these input tests at the following connectors.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.





5. Reconnect the connectors to the driver's under-dash fuse/relay box, turn the ignition switch to ON (II), and do these input tests at the following connectors.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.














Passenger's MICU

6. Turn the ignition switch to LOCK (0), and remove the passenger's kick panel.

- 2-door Interior Trim Removal/Installation - Door Areas (2-Door)
- 4-door Interior Trim Removal/Installation - Door Areas (4-Door)

7. Disconnect passenger's under-dash fuse/relay box connectors A, E, and H.

NOTE: All connector views are wire side of female terminals.





8. With the connectors still disconnected, make these input tests at the connectors.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 9.





9. Reconnect the connectors to the passenger's under-dash fuse/relay box, and do these input tests at the following connectors.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, Go to step 10.









10. If multiple failures are found on more than one control unit, replace the driver's under-dash fuse/relay box (includes the driver's MICU).

- USA models Drivers Under-dash Fuse/Relay Box (Drivers MICU) Removal and Installation (USA Models)
- Canada models Drivers Under-dash Fuse/Relay Box (Drivers MICU) Removal and Installation (Canada Models)

If input failures are related to a particular control unit, replace the control unit.
