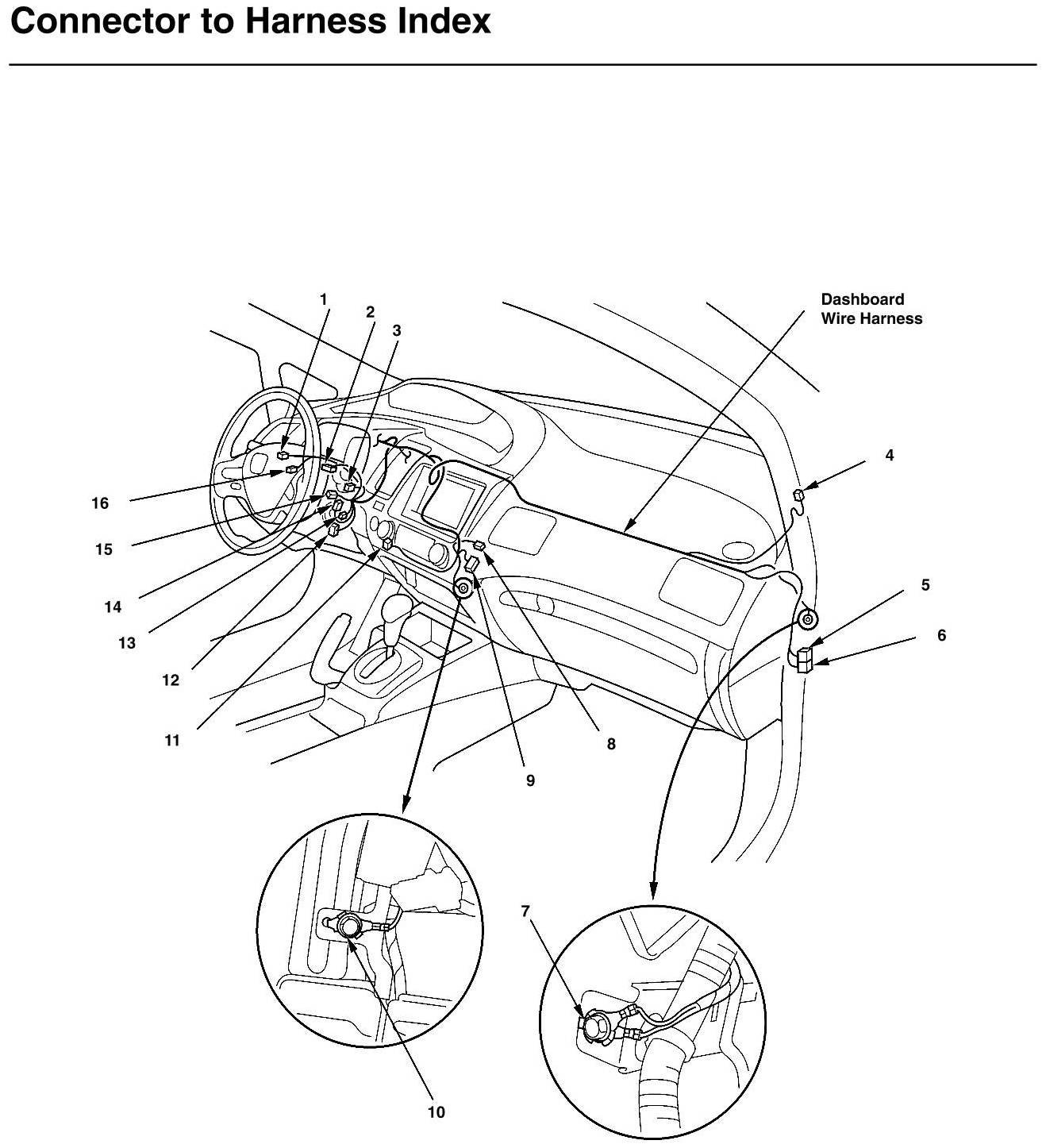

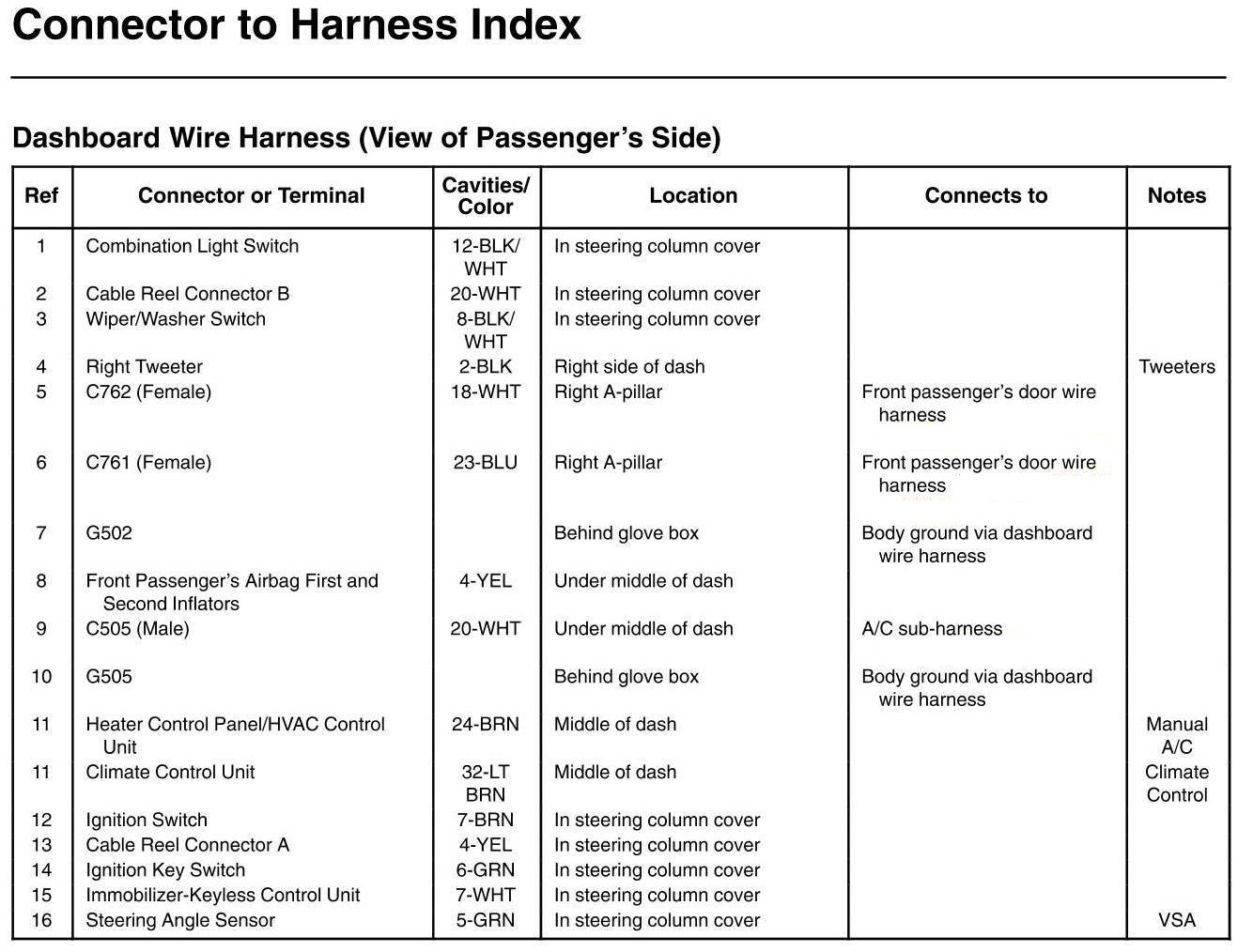

Dashboard Wire Harness (View From Passenger's Side) Connector And Harness Locations
Dashboard Wire Harness (View From Passenger's Side) Connector And Harness Locations
