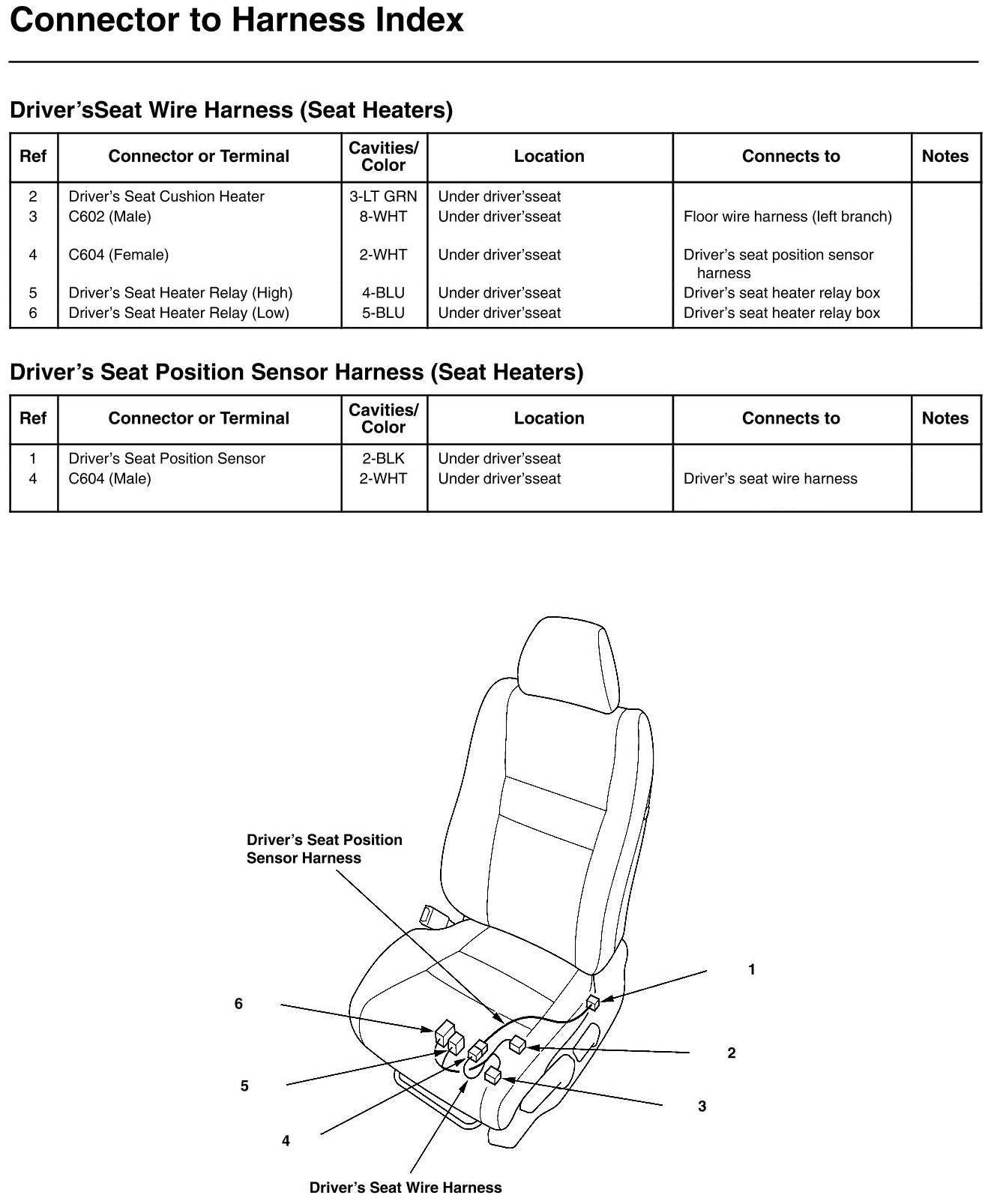

Driver's Seat Wire Harness And Driver's Seat Position Sensor Harness Connector And Harness Locations (With Seat Heaters)
Driver's Seat Wire Harness And Driver's Seat Position Sensor Harness Connector And Harness Locations (With Seat Heaters)
