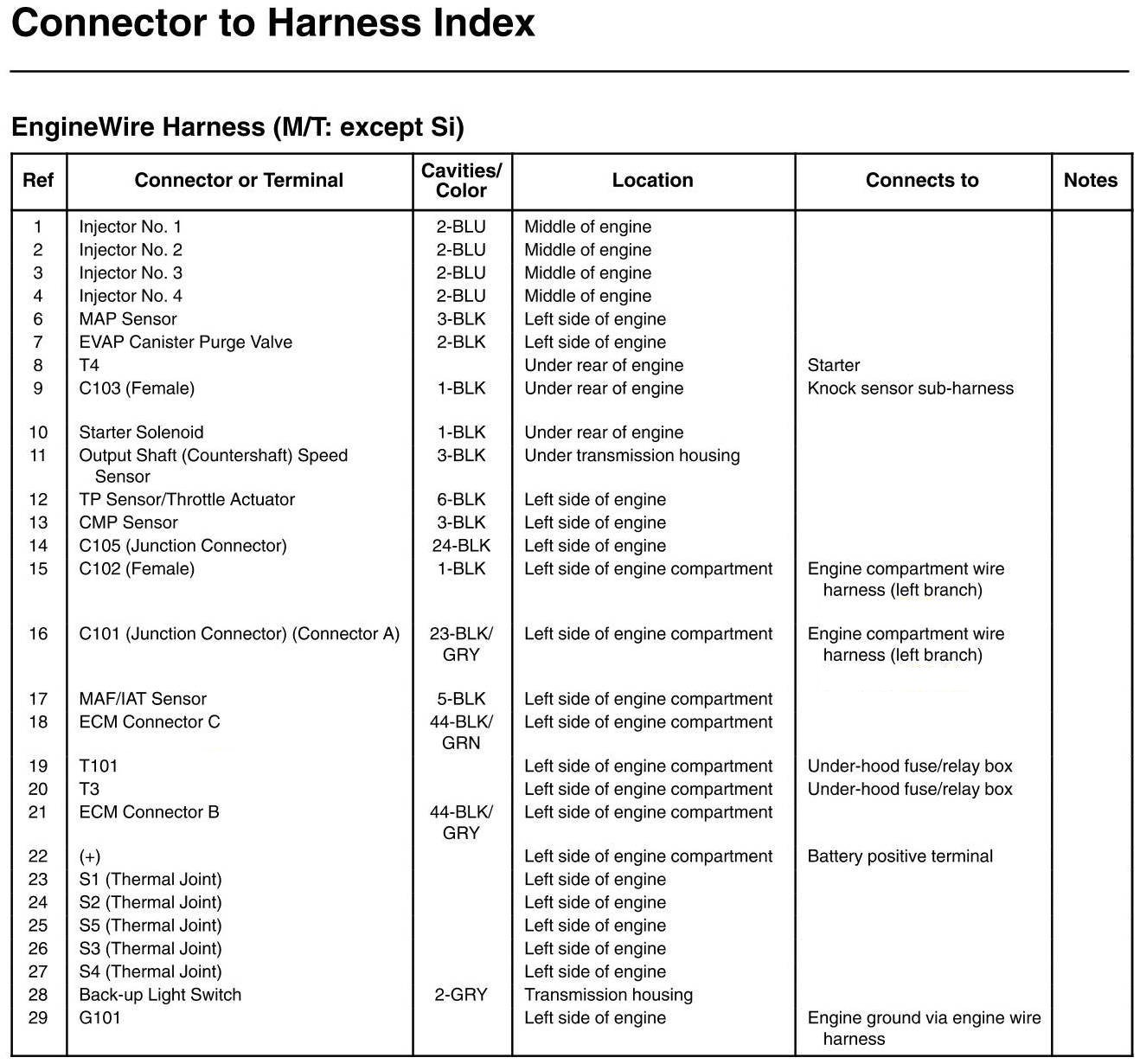

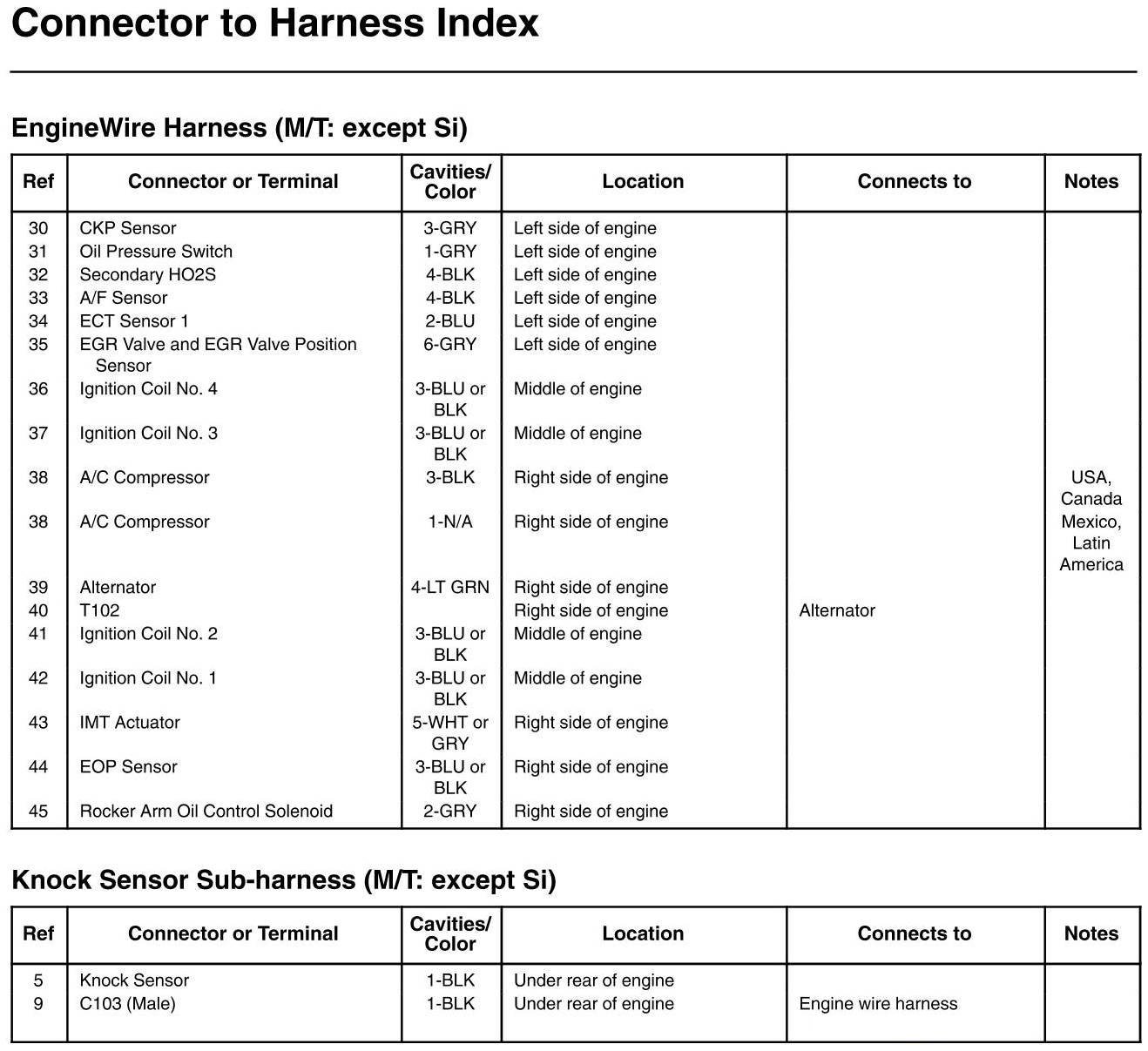

Engine Wire Harness And Knock Sensor Sub-harness Connector And Harness Locations (M/T: Except Si)
Engine Wire Harness And Knock Sensor Sub-harness Connector And Harness Locations (M/T: Except Si)
