Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2010
>>
Civic L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

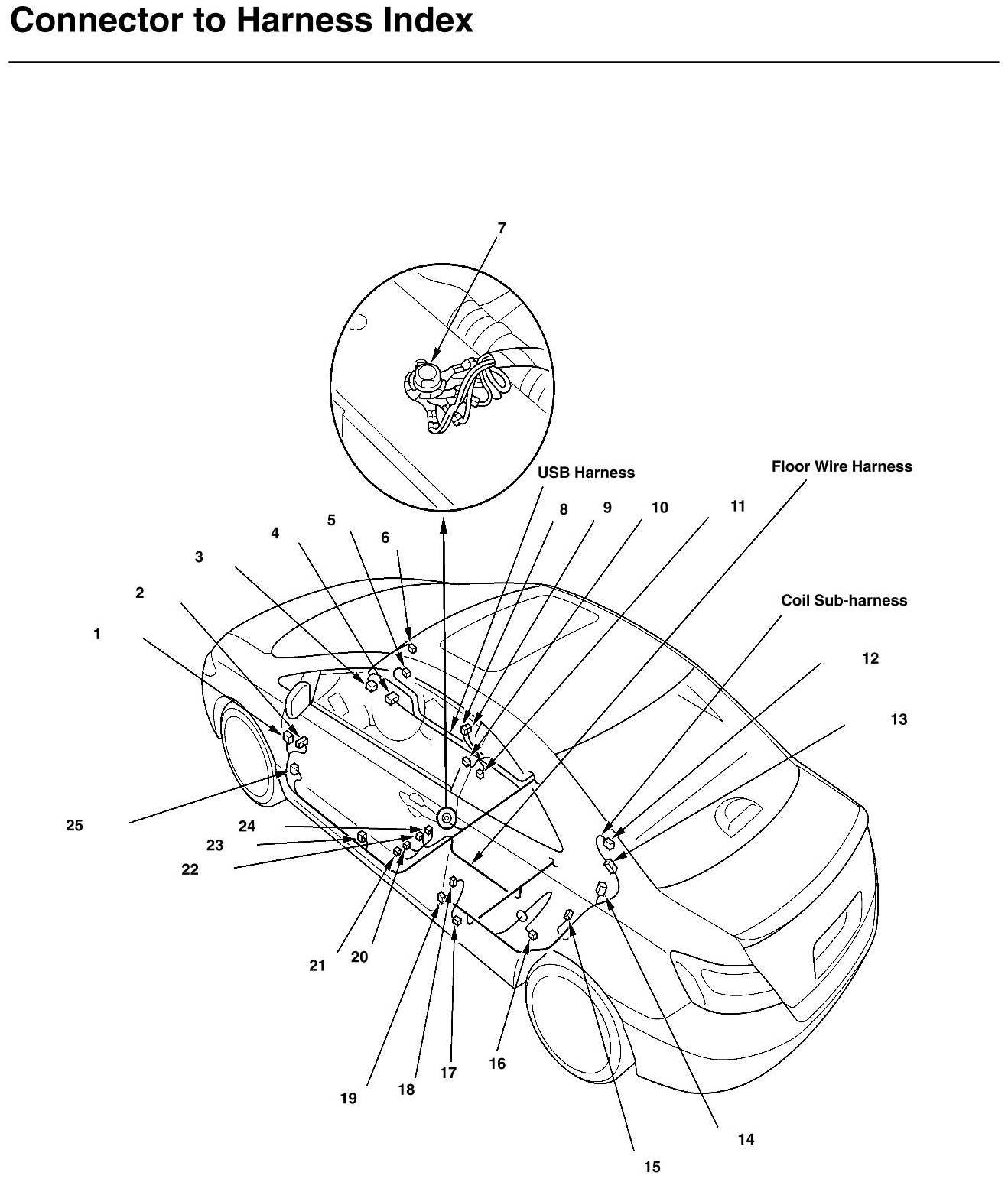

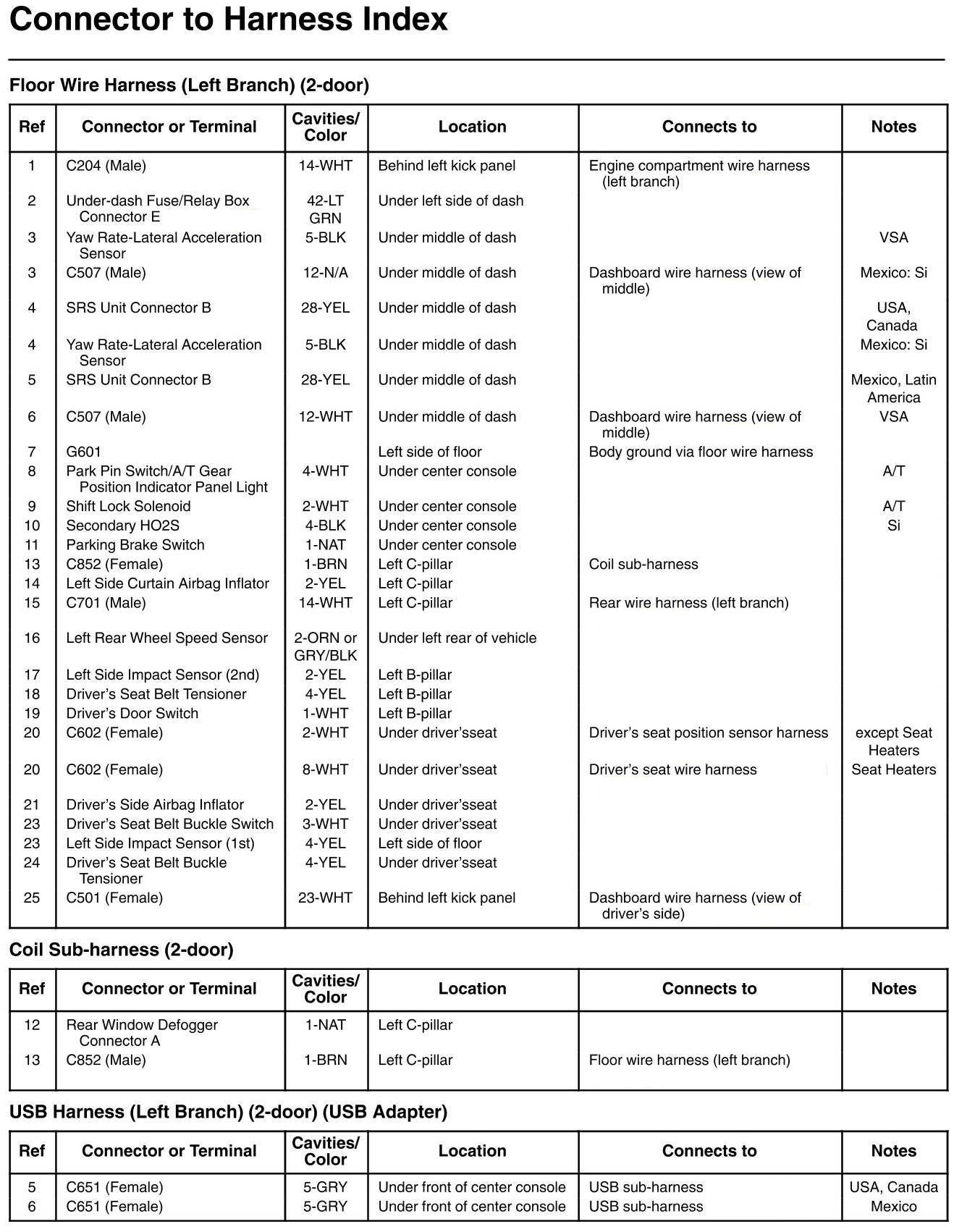

Floor Wire Harness, Coil Subharness, And USB Harness (Left Branch) Connector And Harness Locations (2-Door)
Floor Wire Harness, Coil Subharness, And USB Harness (Left Branch) Connector And Harness Locations (2-Door)
