Secondary Shaft 1st Gear Axial Clearance Inspection

Secondary Shaft 1st Gear Axial Clearance Inspection

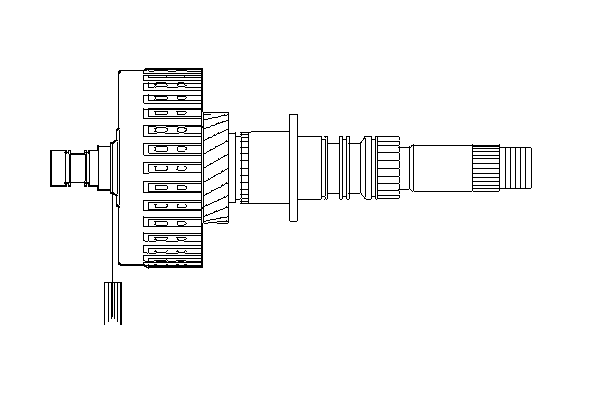

1. Install the thrust needle bearing (A), 1st gear (B), the needle bearing (C), the thrust needle bearing (D), the 31 x 50 mm thrust washer (E), and the 1st clutch (F) on the secondary shaft (G), then secure them with the snap ring (H).






2. Measure the clearance between the snap ring (A) and the 1st clutch guide (B) using a feeler gauge (C), in at least three places. Use the average as the actual clearance.

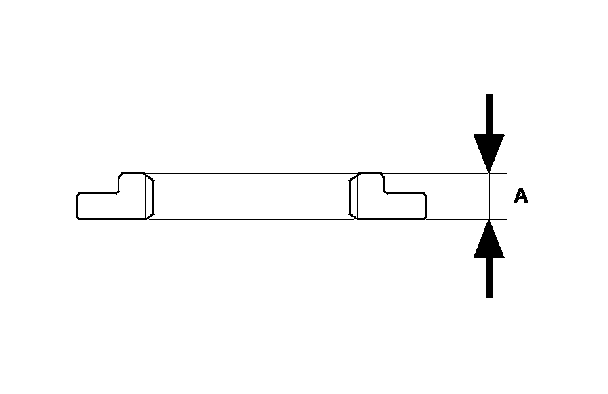

3. If the clearance is out of the standard, remove the 31 x 50 mm thrust washer, and measure its thickness (A).

4. Select and install a new thrust washer, then recheck.

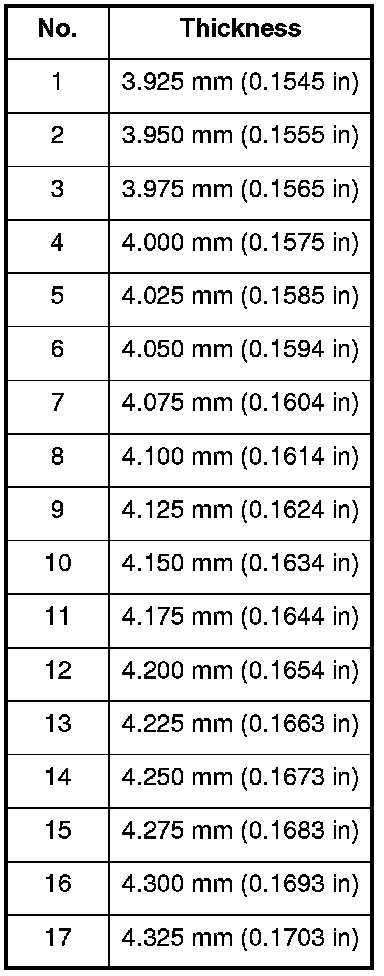

THRUST WASHER, 31 x 50 mm





5. After replacing the thrust washer, make sure the clearance is within the standard.

6. Disassemble the installed parts from the secondary shaft.
