Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 233 - C106 Connector View (Si)

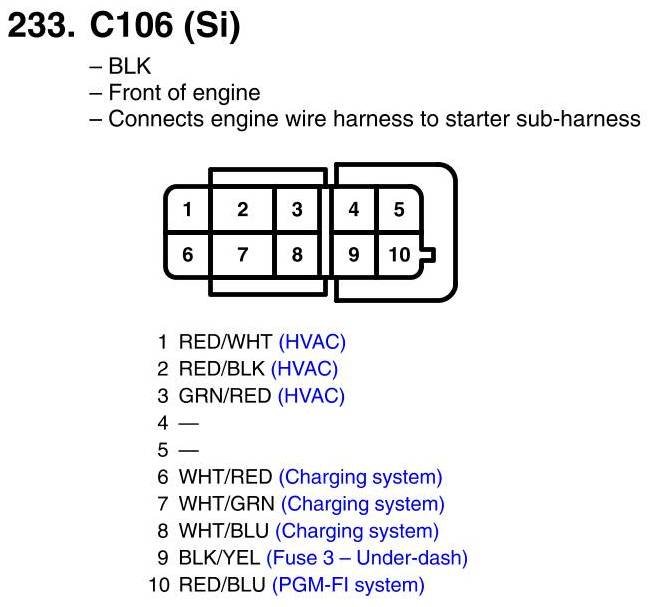

View 233 - C106 Connector View (Si)
