Part Three
Audio System Description
Auxiliary Jack Assembly Connector for Inputs and Outputs
USB Adapter Holder/Auxiliary Jack Assembly ('10-11 models with premium audio and '12 model)
Auxiliary Jack Assembly ('10-11 models without premium audio)

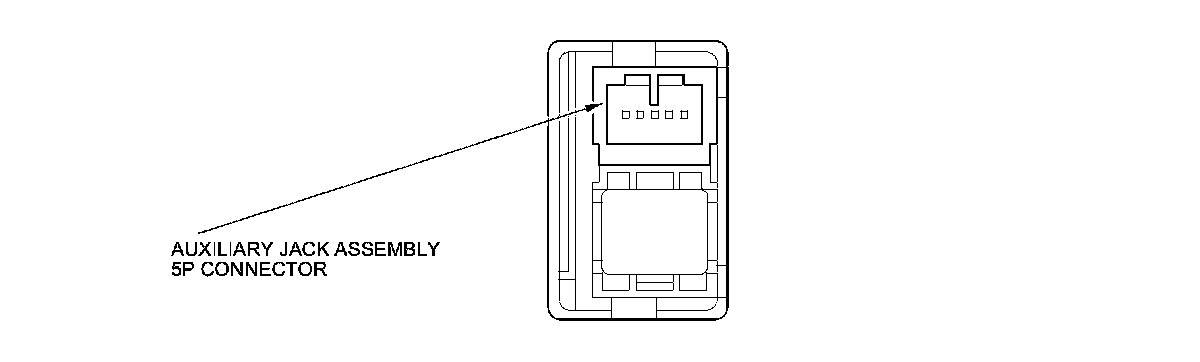

AUXILIARY JACK ASSEMBLY 5P CONNECTOR

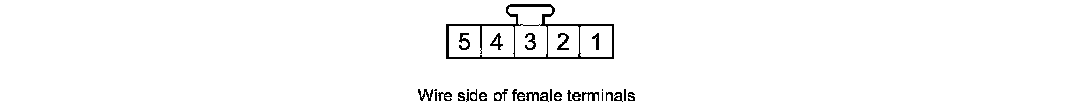

Auxiliary Jack Assembly 5P Connector
ANC/Active Sound Control Microphone Connector for Inputs and Outputs
FRONT HFL-NAVIGATION-ANC/ACTIVE SOUND CONTROL MICROPHONE 7P CONNECTOR or FRONT HFL-ANC/ACTIVE SOUND CONTROL MICROPHONE 7P CONNECTOR ('10-11 models with premium audio and '12 model)
NOTE: Refer to the navigation system section or the HandsFreeLink system section for front HFL-navigation-ANC/active sound control microphone 7P connector terminals No. 3, No. 5, and No. 6.

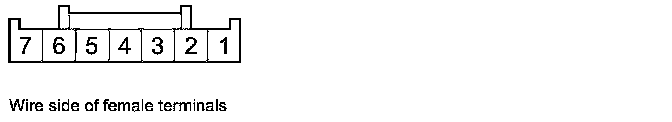

Front HFL-Navigation-ANC/Active Sound Control Microphone 7P Connector or Front HFL-ANC/Active Sound Control Microphone 7P Connector
FRONT ANC/ACTIVE SOUND CONTROL MICROPHONE 3P CONNECTOR ('10-11 models without premium audio)

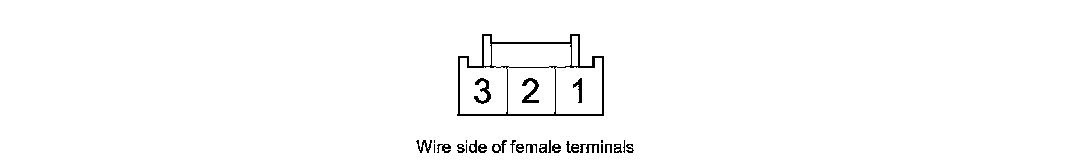

Front ANC/Active Sound Control Microphone 3P Connector
REAR ANC/ACTIVE SOUND CONTROL MICROPHONE 2P CONNECTOR

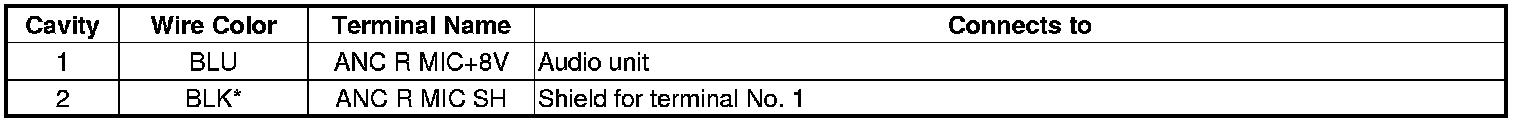

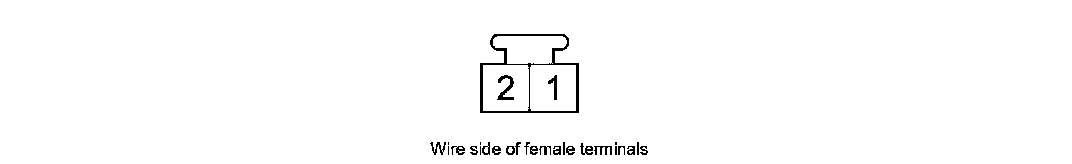

Rear ANC/Active Sound Control Microphone 2P Connector
Audio Disc Changer Connector for Inputs and Outputs (with navigation)

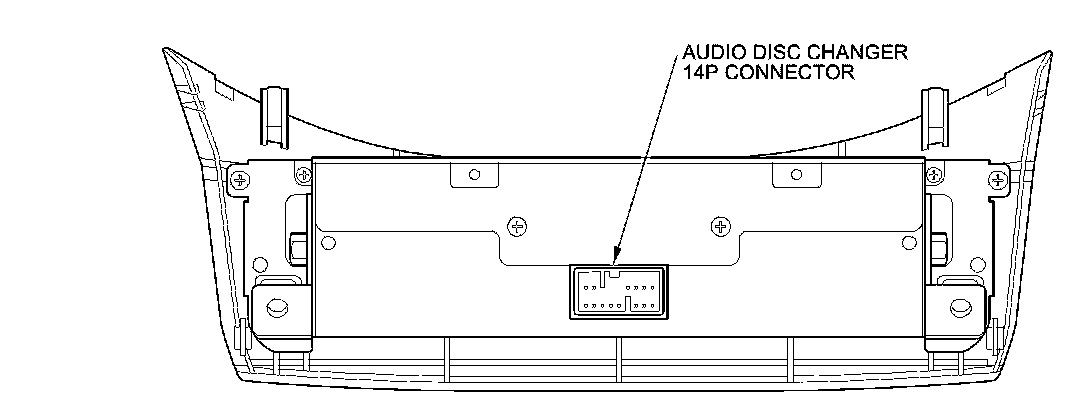

AUDIO DISC CHANGER 14P CONNECTOR

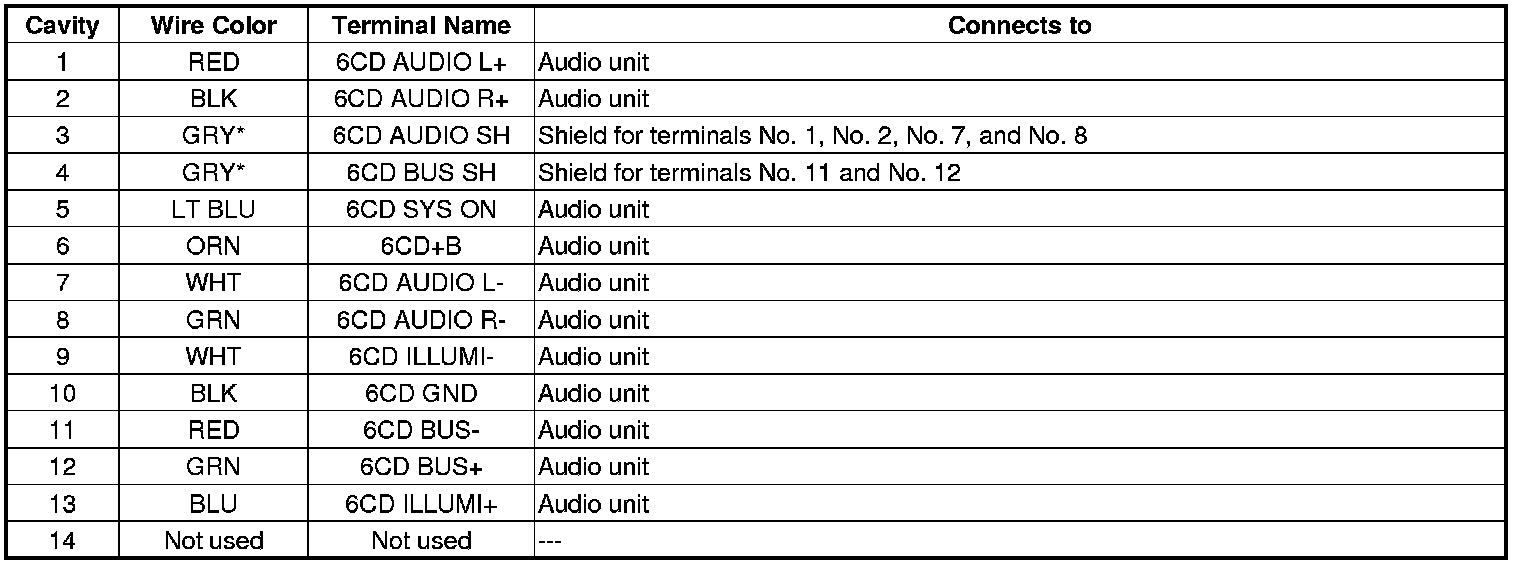

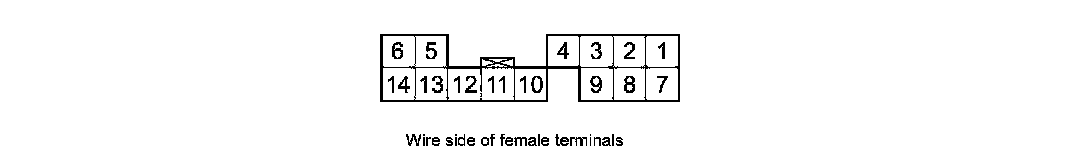

Audio Disc Changer 14P Connector
Audio-HVAC Subdisplay Unit Connector for Inputs and Outputs (with navigation)

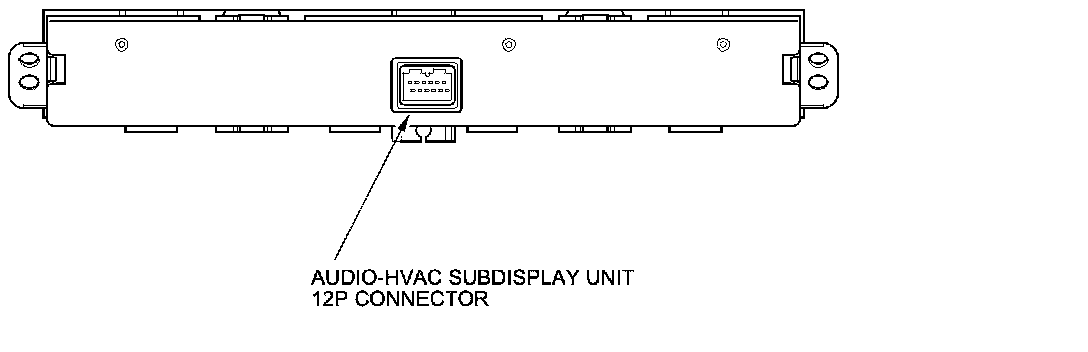

AUDIO-HVAC SUBDISPLAY UNIT 12P CONNECTOR

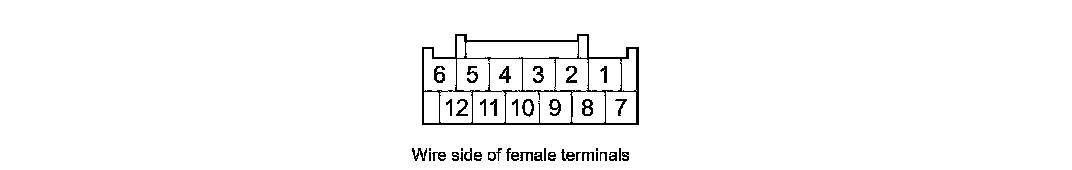

Audio-HVAC Subdisplay Unit 12P Connector
Audio-HVAC Display Unit Connector for Inputs and Outputs (without navigation)

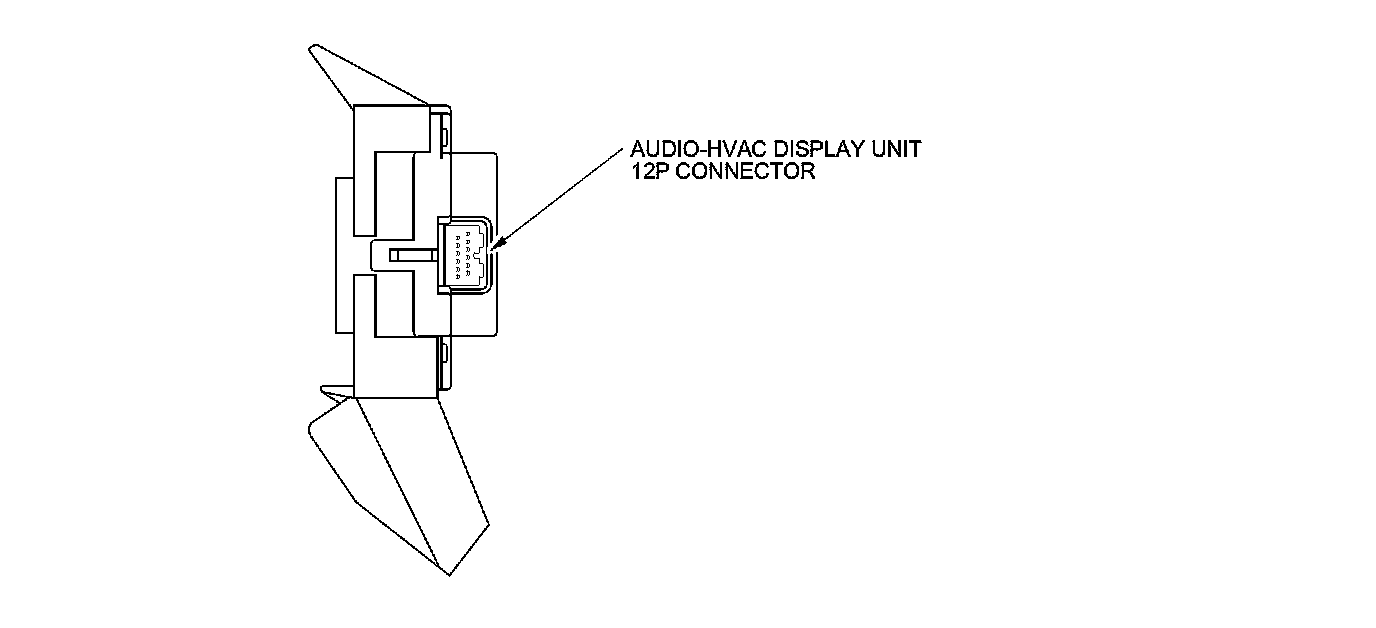

AUDIO-HVAC DISPLAY UNIT 12P CONNECTOR
Audio-HVAC Display Unit 12P Connector
