XM Receiver Removal/Installation

XM Receiver Removal/Installation

1. Remove the passenger's rear side trim panel Interior Trim Removal/Installation - Rear Side Area.

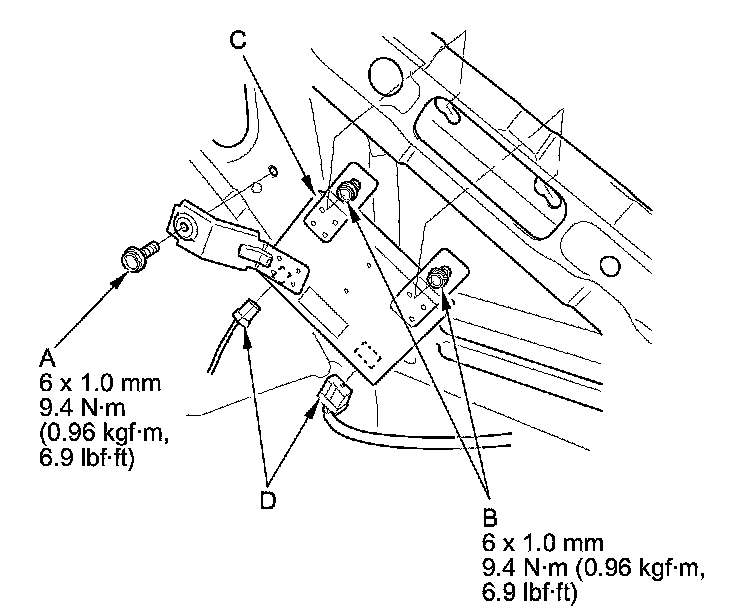

2. Remove the bolt (A) and loosen the bolts (B), then pull out the XM receiver (C).





3. Disconnect the connectors (D), and remove the XM receiver.

4. Install the XM receiver in the reverse order of removal.

5. If you are replacing the XM receiver, register the new XM receiver I.D. number with XM Radio by calling 800-852-9696.
