Sunroof / Moonroof: Service and Repair

Moonroof Glass Replacement

1. Close the moonroof glass fully.

2. Slide the sunshade all the way back.

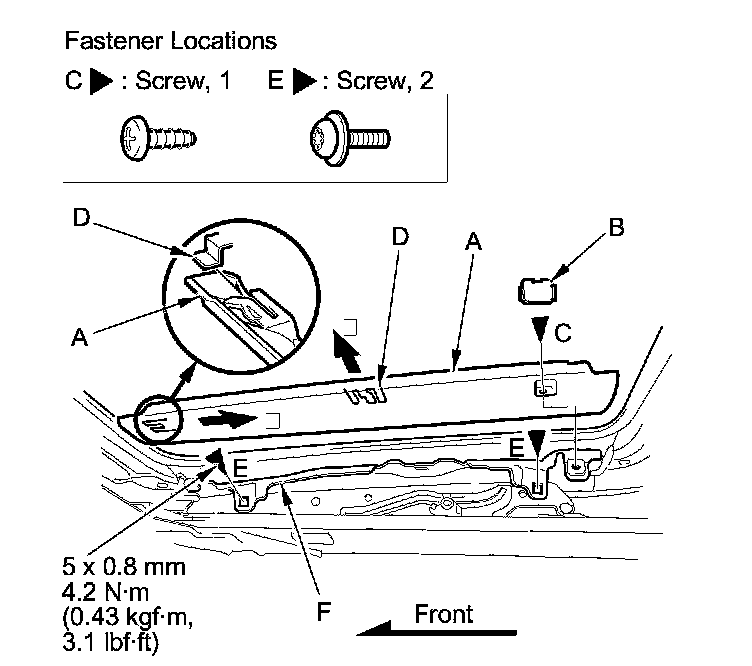

3. Remove the bracket covers (A) on both sides.

1. Pry out the lid (B), remove the screw (C).

2. Release the hooks (D) from the bracket cover.





4. Remove the screws (E) with a TORX T25 bit from the glass bracket (F) on both sides.

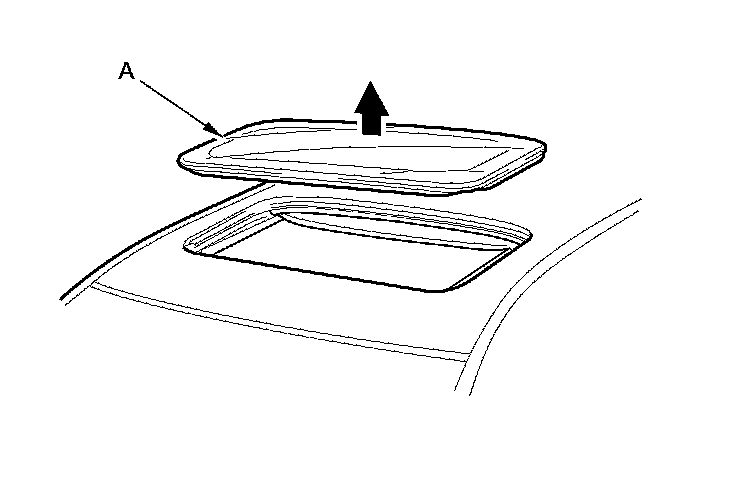

5. Remove the moonroof glass (A) by lifting it up.

NOTE: Do not damage the roof panel.





6. Install the glass in the reverse order of removal, and check the glass position adjustment Adjustments.
