Rear Seat Armrest Replacement

Rear Seat Armrest Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to tear or damage the seat covers.

1. Fold down the right rear seat-back.

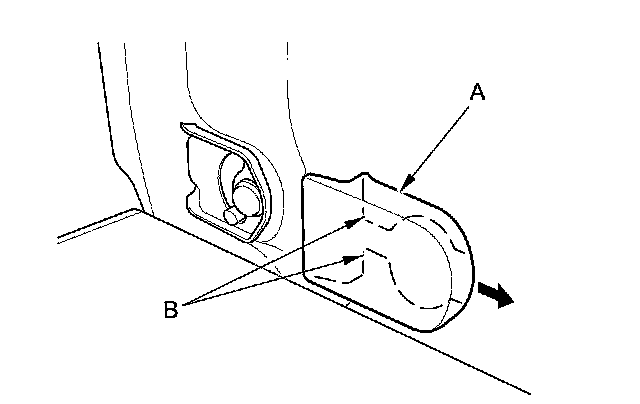

2. Slide the armrest side cover (A), and release the tabs (B), then remove the cover.






3. Remove the bolts (A, B), then remove the armrest (C).





4. If necessary, remove the collars (D).

5. Install the armrest in the reverse order of removal, and if the collars cracked excessively, replace them with new ones.
