Home >> Honda >> 2010 >> Crosstour 4WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Navigation System >> KC Canada

KC Canada

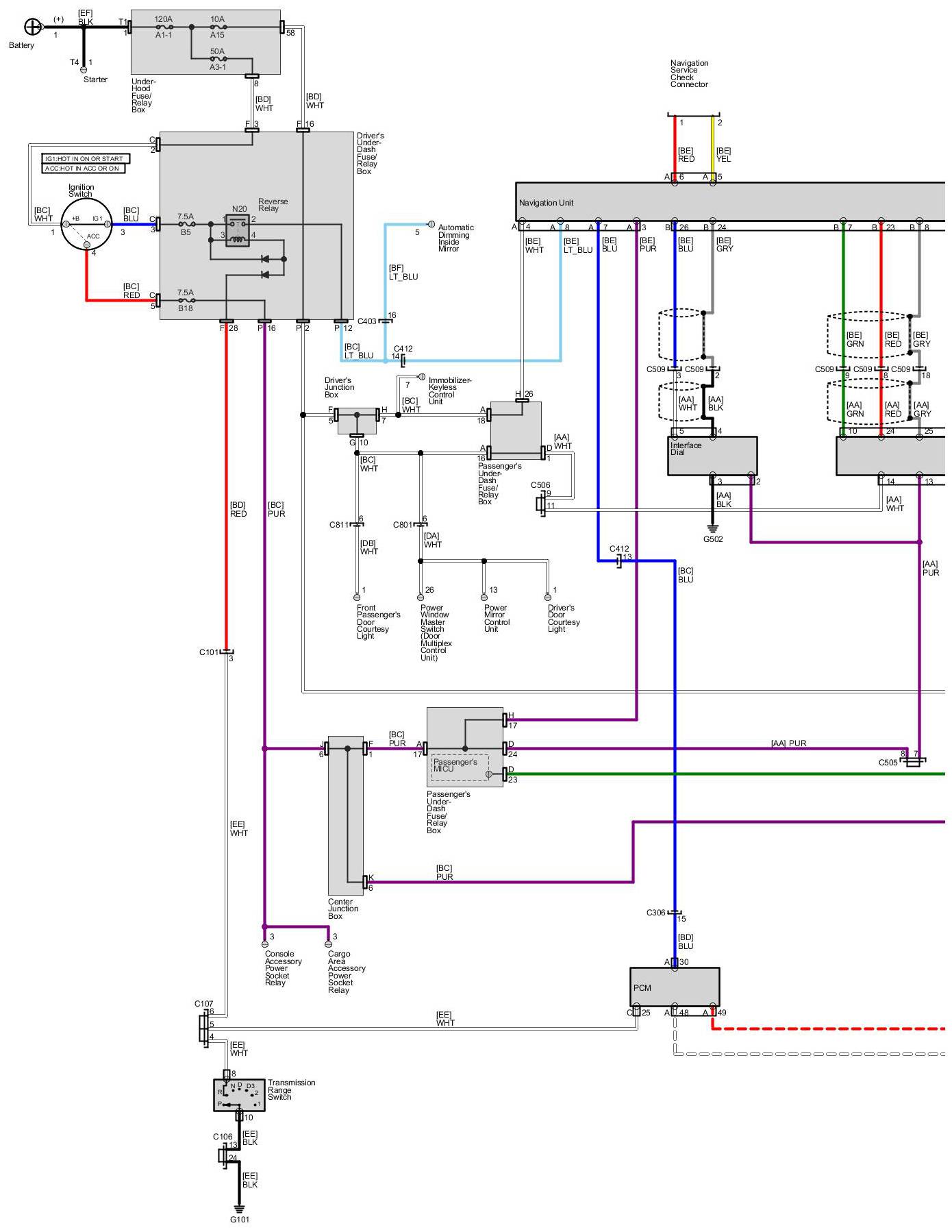

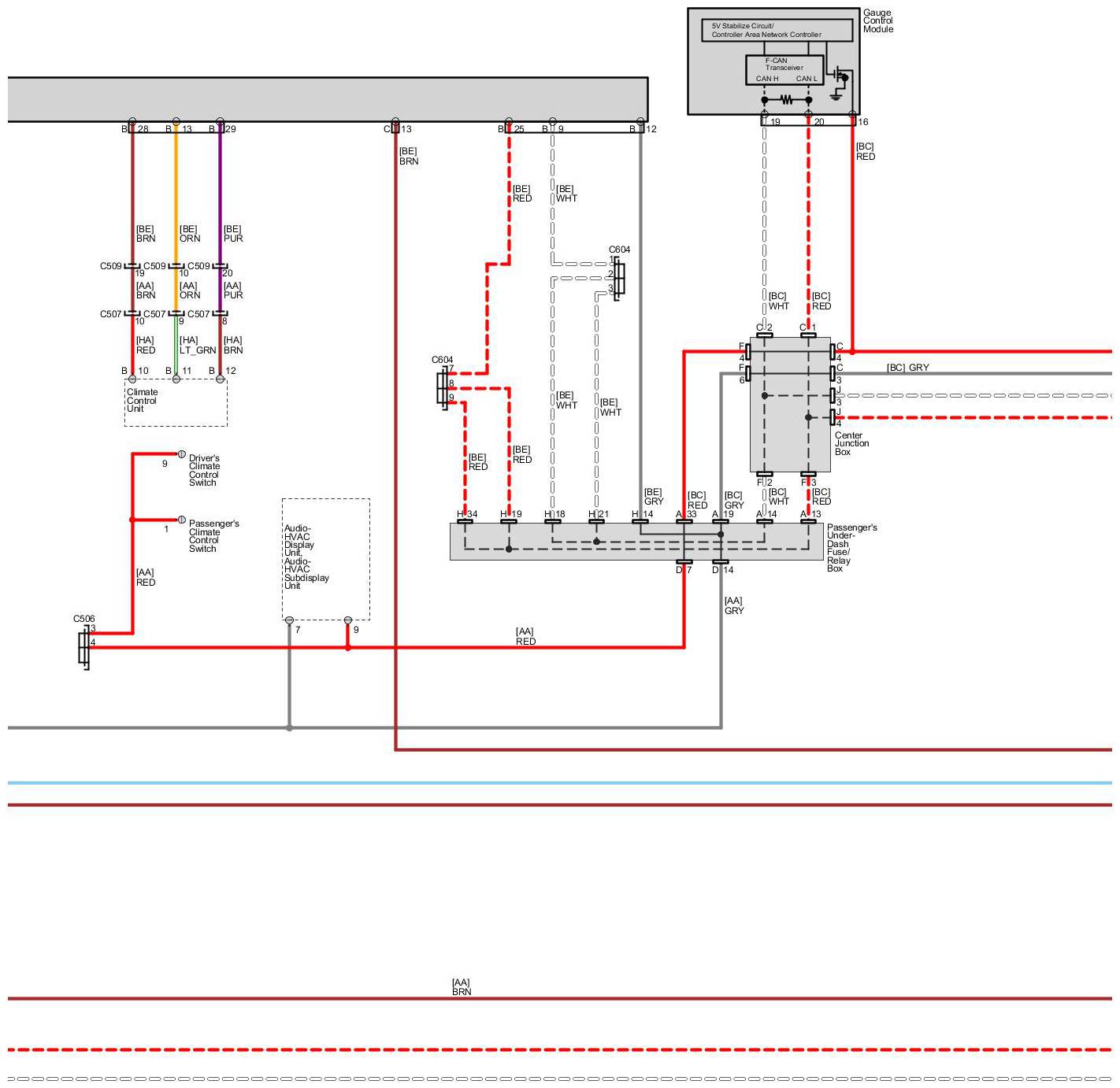

Audio and Visual System - Navigation System

KC Canada, 5-door EX-L, TF2, 4WD, J35Z2, 5AT Transmission with these options (Navigation)
