Left Engine Compartment Wire Harness




Connector and Harness Locations

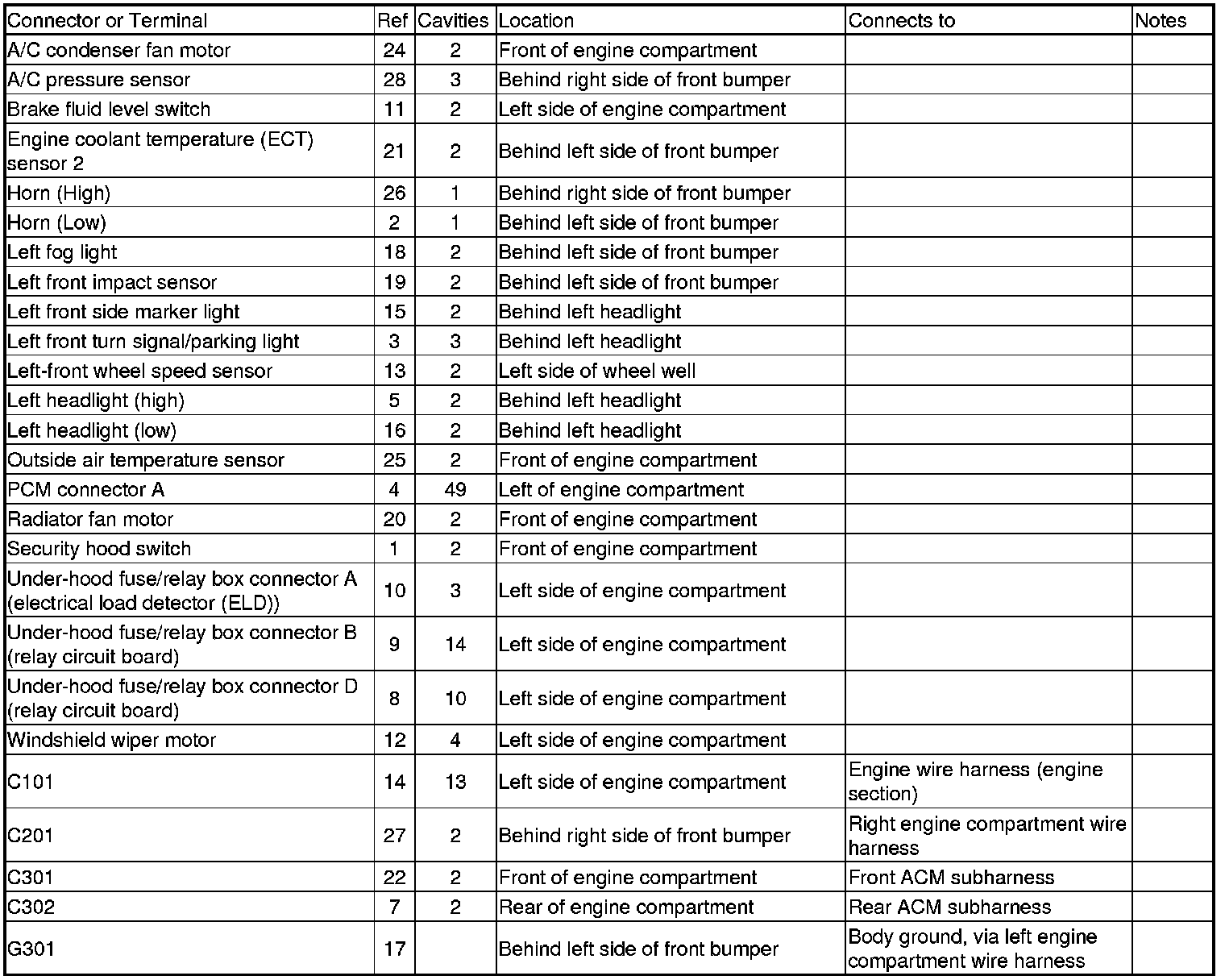

Left Engine Compartment Wire Harness (Engine Compartment Branch) (BD)

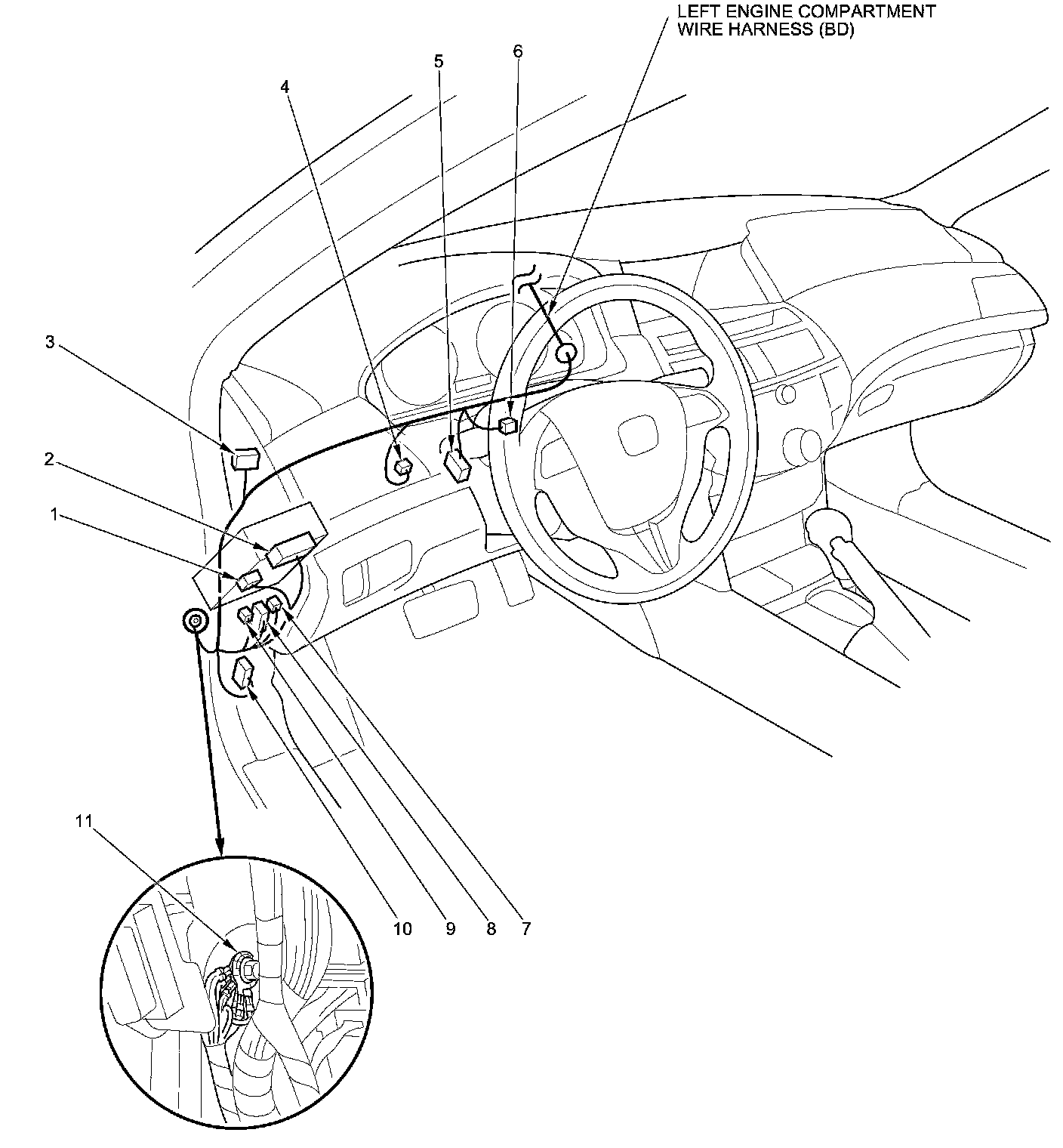

Left Engine Compartment Wire Harness (Dashboard Branch) (BD)
