Seat Position Sensor: Service and Repair

Driver's Seat Position Sensor Replacement

Removal

1. Raise the driver's seat all the way up.

2. Do the battery terminal disconnection procedure Procedures, then wait at least 3 minutes before starting work.

3. Remove the driver's seat Front Seat Removal/Installation.

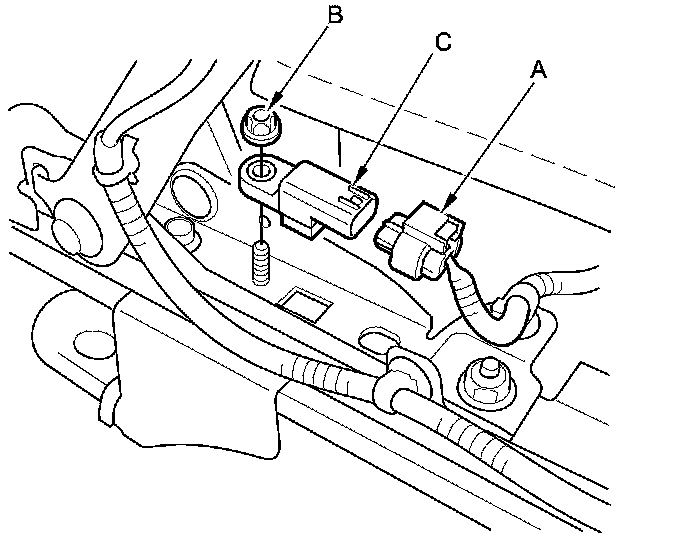

4. Disconnect the driver's seat position sensor 2P connector (A) on the driver's seat wire harness.





5. Remove the nut (B), then remove the driver's seat position sensor (C).

Installation

NOTE: Be sure to install the harness so it does not pinched or interfere with other parts.

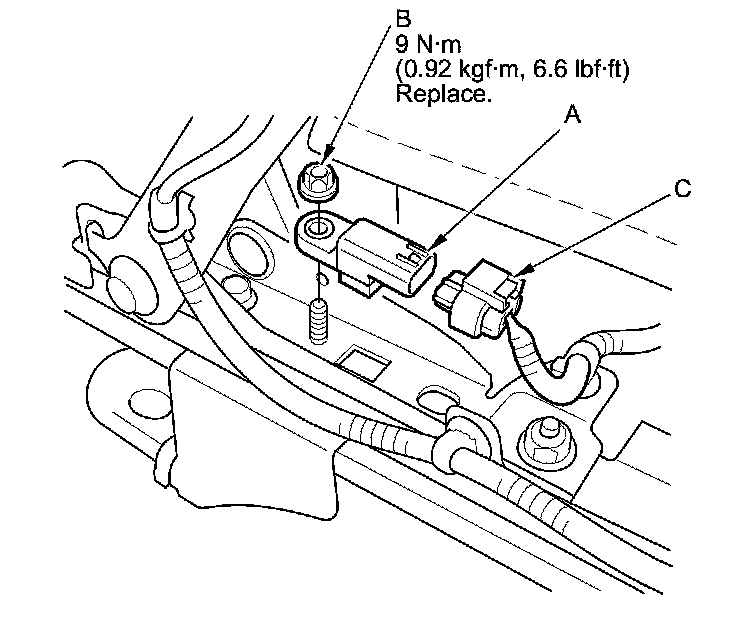

1. Install the driver's seat position sensor (A) with the new nut (B), then connect the driver's seat position sensor 2P connector (C) on the driver's seat wire harness.





2. Install the driver's seat Front Seat Removal/Installation.

3. Do the battery terminal reconnection procedure Procedures.

4. Clear any DTCs with the HDS.

5. Check the operation of the driver's seat position sensor with the HDS Driver's Seat Position Sensor Operation Check.

6. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
