Wipers/Washers (Drivers and Passengers MICU) Input Test

Wipers/Washers (Driver's and Passenger's MICU) Input Test

NOTE: Before testing, troubleshoot the multiplex integrated control unit first, using B-CAN System Diagnosis Test Mode A.

Driver's MICU

1. Turn the ignition switch to LOCK (0).

2. Remove the driver's dashboard lower cover.

3. Disconnect driver's under-dash fuse/relay box connectors F, Q, and R.

NOTE: All connector views are wire side of female terminals.





4. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 5.

5. With the connectors still disconnected, do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.





6. Reconnect the connectors to the driver's under-dash fuse/relay box, turn the ignition switch to ON (II), and do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 7.














Passenger's MICU

7. Turn the ignition switch to LOCK (0).

8. Remove the passenger's kick panel Service and Repair.

9. Disconnect passenger's under-dash fuse/relay box connectors A, E, and H.

NOTE: All connector views are wire side of female terminals.





10. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 11.

11. With the connectors still disconnected, do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 12.

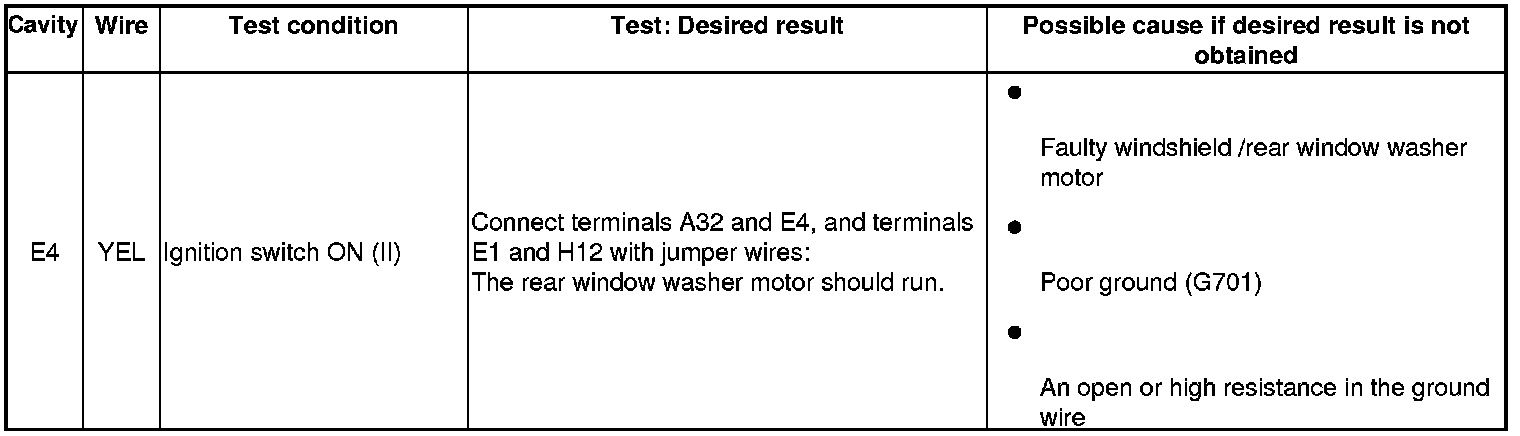

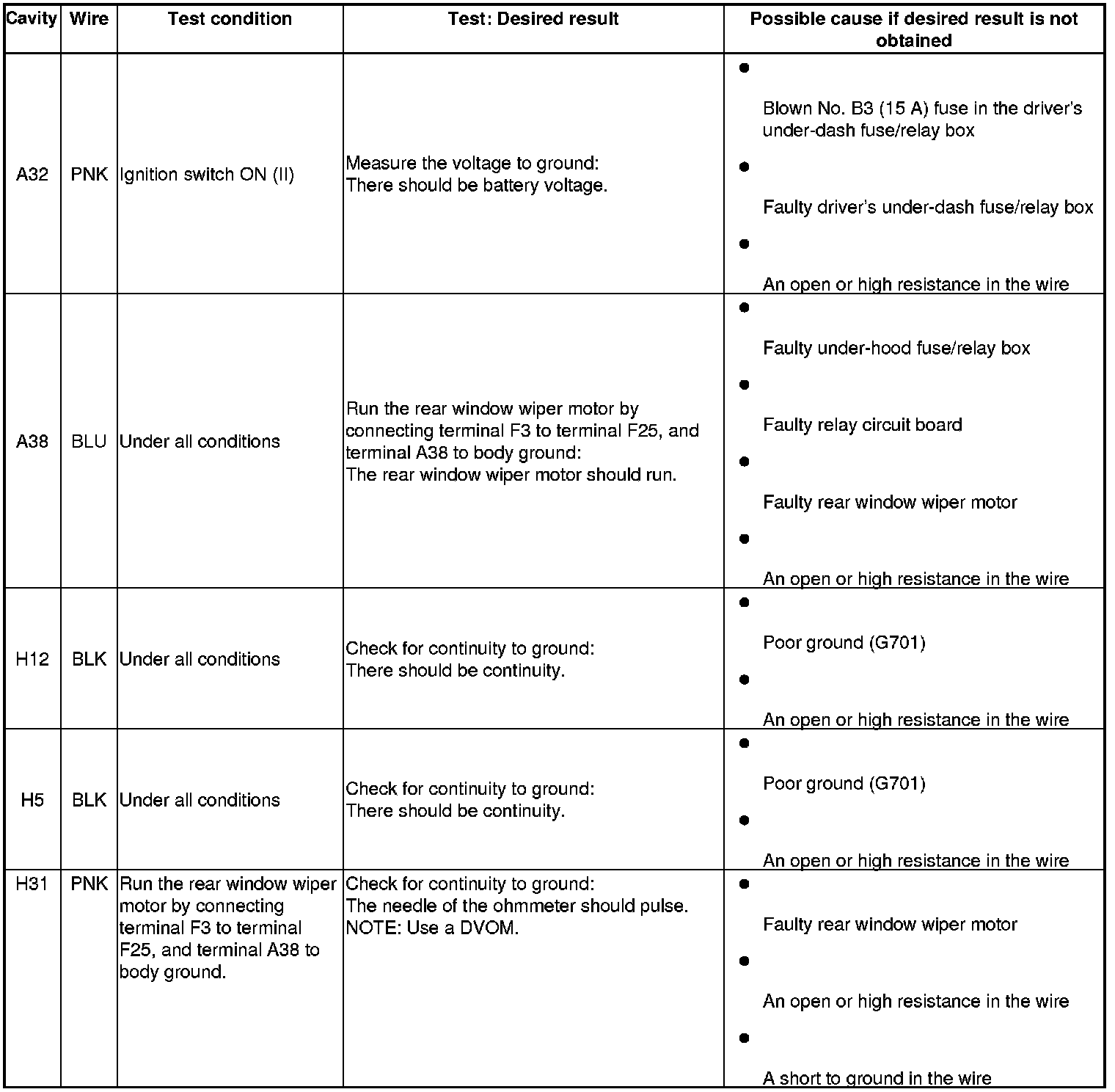

12. Reconnect the connectors to the passenger's under-dash fuse/relay box, and do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, Go to step 13.









13. If multiple failures are found on more than one control unit, replace the driver's under-dash fuse/relay box (includes the driver's MICU).

- USA models
- Canada models

If input failures are related to a particular control unit, replace the control unit.
