U1221
DTC Troubleshooting: U1221 (35)
DTC U1221 (35):
Motor Control Module (MCM) Lost Communication with DC-DC Converter
NOTE:
- Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information Initial Inspection and Diagnostic Overview.
- If the DTC cannot be cleared, do the troubleshooting for DTC U1204 (55).
1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Check for Pending or Confirmed DTCs with the HDS.
Is DTC U1221 (35) indicated?
YES -
Go to step 4.
NO -
Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the DC-DC converter and the MCM.�
4. Check the No. 12 IMA (10 A) fuse in the under-dash fuse/relay box.
Is the fuse OK?
YES -
Go to step 5.
NO -
Repair a short to ground in the wire between the DC-DC converter 4P connector and the No. 12 IMA (10 A) fuse. Also replace the No. 12 IMA (10 A) fuse, then go to step 23.
5. Turn the ignition switch to LOCK (0).
6. Turn the battery module switch OFF.
7. Remove the IPU cover IPU Cover Removal/Installation.
8. Remove the PCU lid, the PCU busplate, and the PCU cover Service and Repair.
9. Reinstall the PCU busplate Service and Repair.
10. Check for poor connection, loose bolts, and damage at the busbars (A).
Are the connections OK?
YES -
Go to step 11.
NO -
Repair the connections in the busbars, then go to step 23.
11. Disconnect MCM connector A (31P).

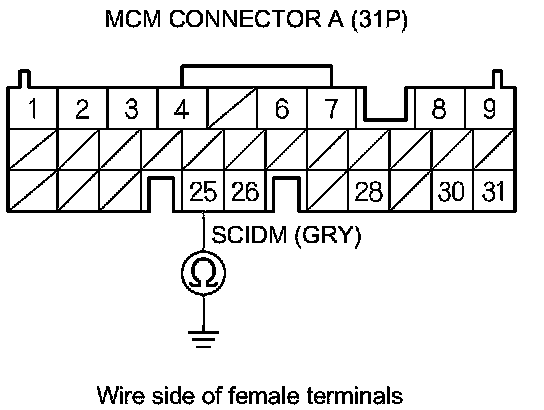

12. Measure the resistance between MCM connector terminal A25 and body ground.
Is there 1 MOhms or more?
YES -
Go to step 13.
NO -
Go to step 21.
13. Disconnect the DC-DC converter 4P connector (A).
14. Turn the ignition switch to ON (II).
15. Measure the voltage between DC-DC converter 4P connector terminal No. 4 and body ground.
Is there battery voltage?
YES -
Go to step 16.
NO -
Repair an open in the wire between the DC-DC converter 4P connector and the No. 12 IMA (10 A) fuse, then go to step 23.
16. Turn the ignition switch to LOCK (0).
17. Reconnect MCM connector A (31P).
18. Turn the ignition switch to ON (II).

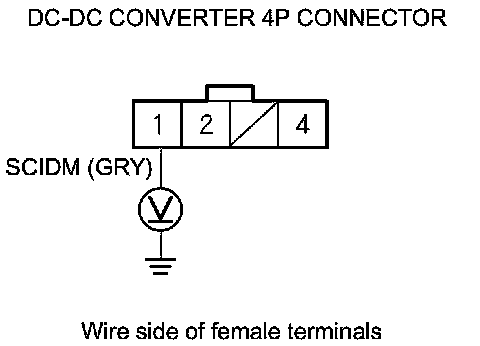

19. Measure the voltage between DC-DC converter 4P connector terminal No. 1 and body ground.
Is there about 12 V?
YES -
Replace the DC-DC converter Service and Repair, then go to step 23.
NO -
Go to step 20.
20. Measure the voltage between MCM connector terminal A25 and body ground.
Is there about 12 V?
YES -
Repair an open in the wire between the DC-DC converter 4P connector and the MCM (A25), then go to step 23.
NO -
Go to step 30.
21. Disconnect the DC-DC converter 4P connector (A).
22. Measure the resistance between MCM connector terminal A25 and body ground.
Is there 1 MOhms or more?
YES -
Replace the DC-DC converter Service and Repair, then go to step 23.
NO -
Repair a short in the wire between the DC-DC converter 4P connector and the MCM (A25), then go to step 23.
23. Reconnect all connectors.
24. If removed, reinstall the PCU cover, the PCU busplate, and the PCU lid Service and Repair.
25. If removed, reinstall the IPU cover IPU Cover Removal/Installation, then turn the battery module switch ON.
26. Turn the ignition switch to ON (II).
27. Clear the DTC with the HDS.
28. Check for Pending or Confirmed DTCs with the HDS.
Is DTC U1221 (35) indicated?
YES -
Check for poor connections or loose terminals at the MCM and the DC-DC converter, then go to step 1.
NO -
Go to step 29.
29. Monitor the OBD STATUS for DTC U1221 (35) in the DTCs MENU with the HDS.
Does the screen indicate PASSED?
YES -
Troubleshooting is complete. If any other Pending or Confirmed DTCs were indicated in step 28, go to the indicated DTC's troubleshooting.�
NO -
If the screen indicates FAILED, check for poor connections or loose terminals at the MCM and the DC-DC converter, then go to step 1. If the screen indicates NOT COMPLETED, keep the ignition switch ON (II) until a result comes on.
30. Reconnect all connectors.
31. Reinstall the PCU cover, the PCU busplate, and the PCU lid Service and Repair.
32. Reinstall the IPU cover IPU Cover Removal/Installation, then turn the battery module switch ON.
33. Update the MCM if it does not have the latest software Testing and Inspection, or substitute a known-good MCM.
34. Turn the ignition switch to ON (II).
35. Check for Pending or Confirmed DTCs with the HDS.
Is DTC U1221 (35) indicated?
YES -
Check for poor connections or loose terminals at the MCM and the DC-DC converter. If the MCM was updated, substitute a known-good MCM, and recheck. If the MCM was substituted, go to step 1.
NO -
Go to step 36.
36. Monitor the OBD STATUS for DTC U1221 (35) in the DTCs MENU with the HDS.
Does the screen indicate PASSED?
YES -
If the MCM was updated, troubleshooting is complete. If the MCM was substituted, replace the original MCM Service and Repair. If any other Pending or Confirmed DTCs were indicated in step 35, go to the indicated DTC's troubleshooting.�
NO -
If the screen indicates FAILED, check for poor connections or loose terminals at the MCM and the DC-DC converter. If the MCM was updated, substitute a known-good MCM, and recheck. If the MCM was substituted, go to step 1. If the screen indicates NOT COMPLETED, keep the ignition switch ON (II) until a result comes on.
