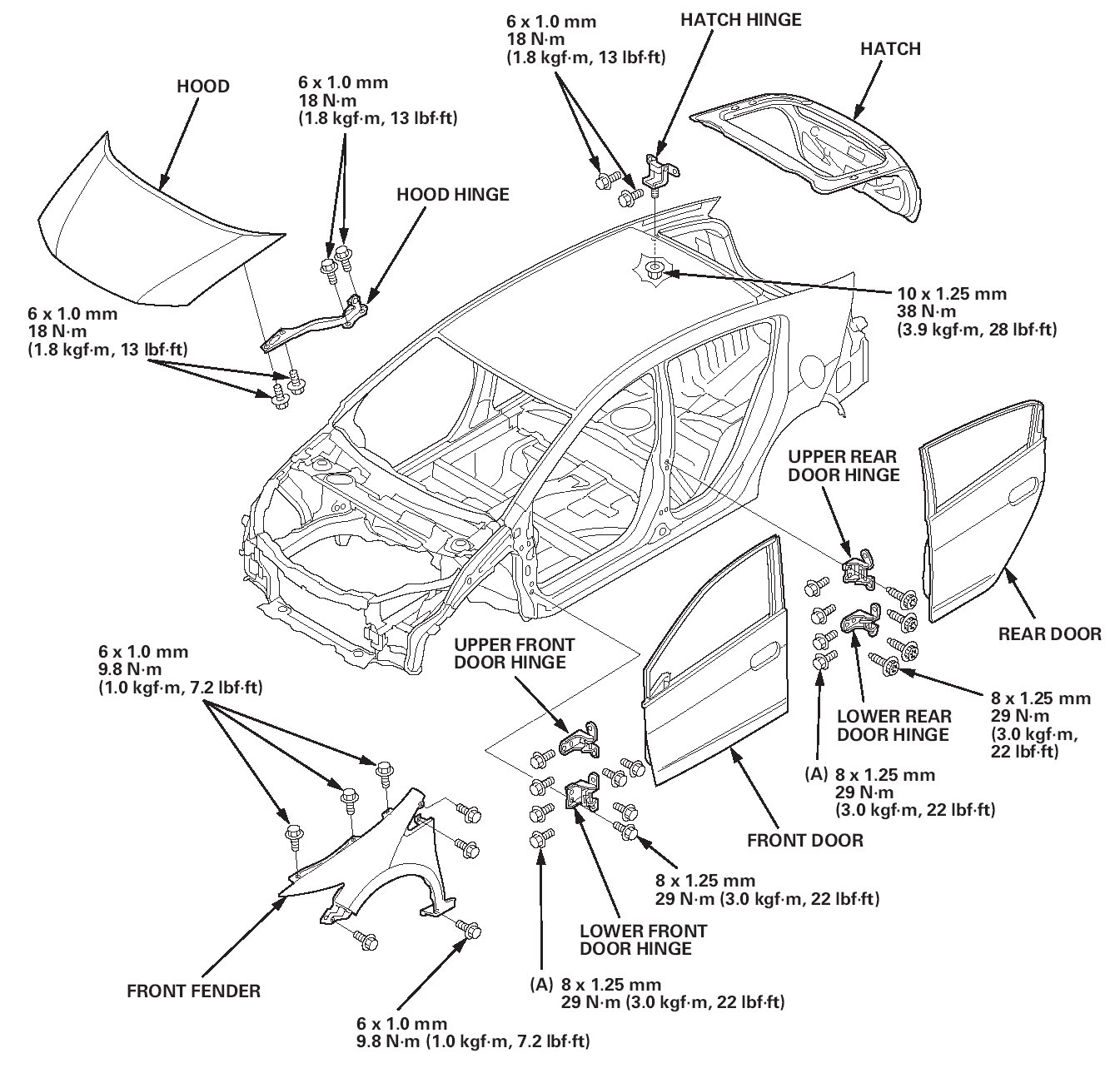

Exterior Parts Removal/Installation

Exterior Parts Removal/Installation

NOTE:
- When adjusting the door in or out, replace the mounting bolts (A), refer to the Parts Catalog if you need to use an adjusting bolt.
- Apply spot sealer to the mating surface, then install the front fender, the hood, the doors, the hatch, and the hinges.
- Check the hood, the doors, and the hatch positions, refer to the external parts fitting position.
