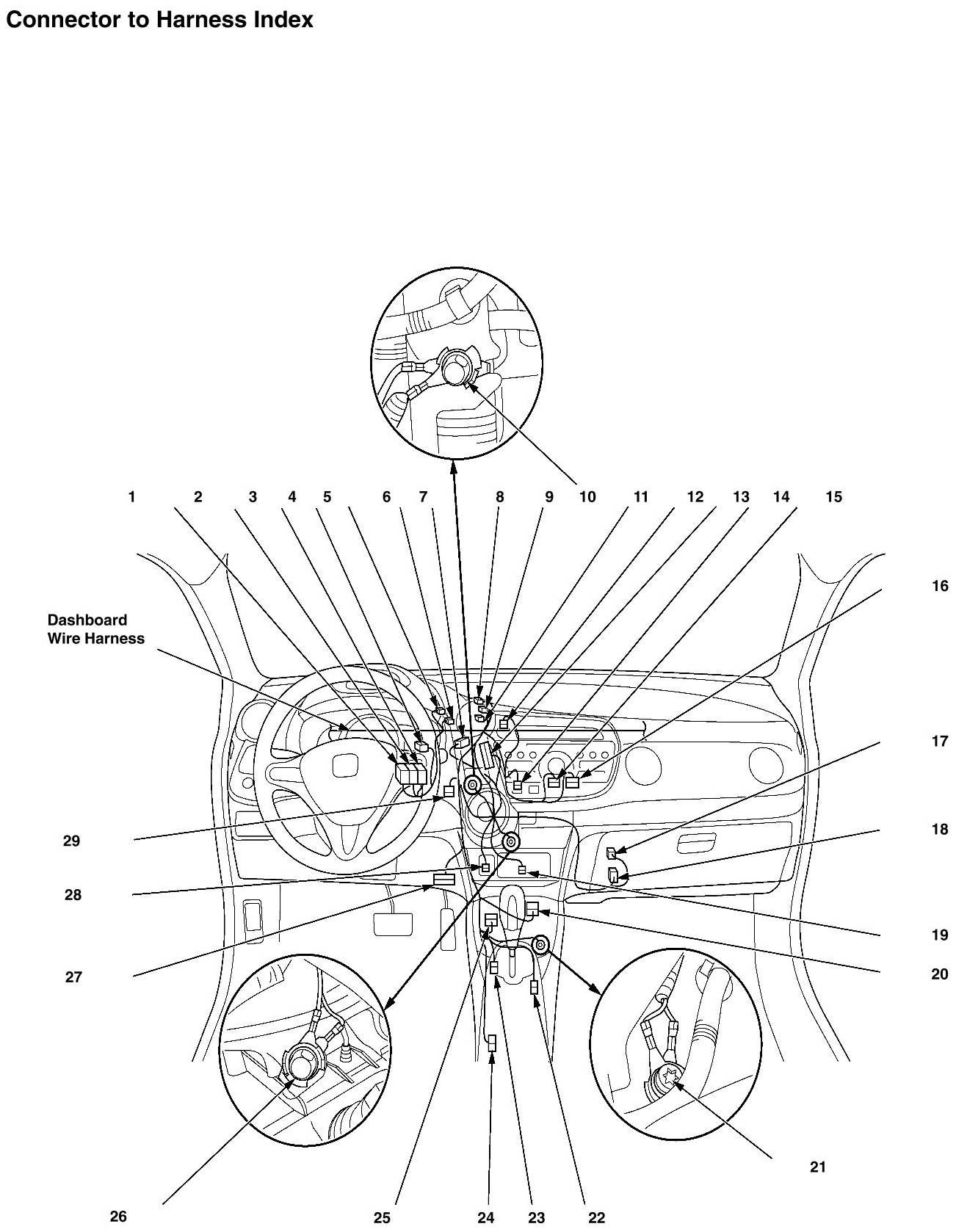

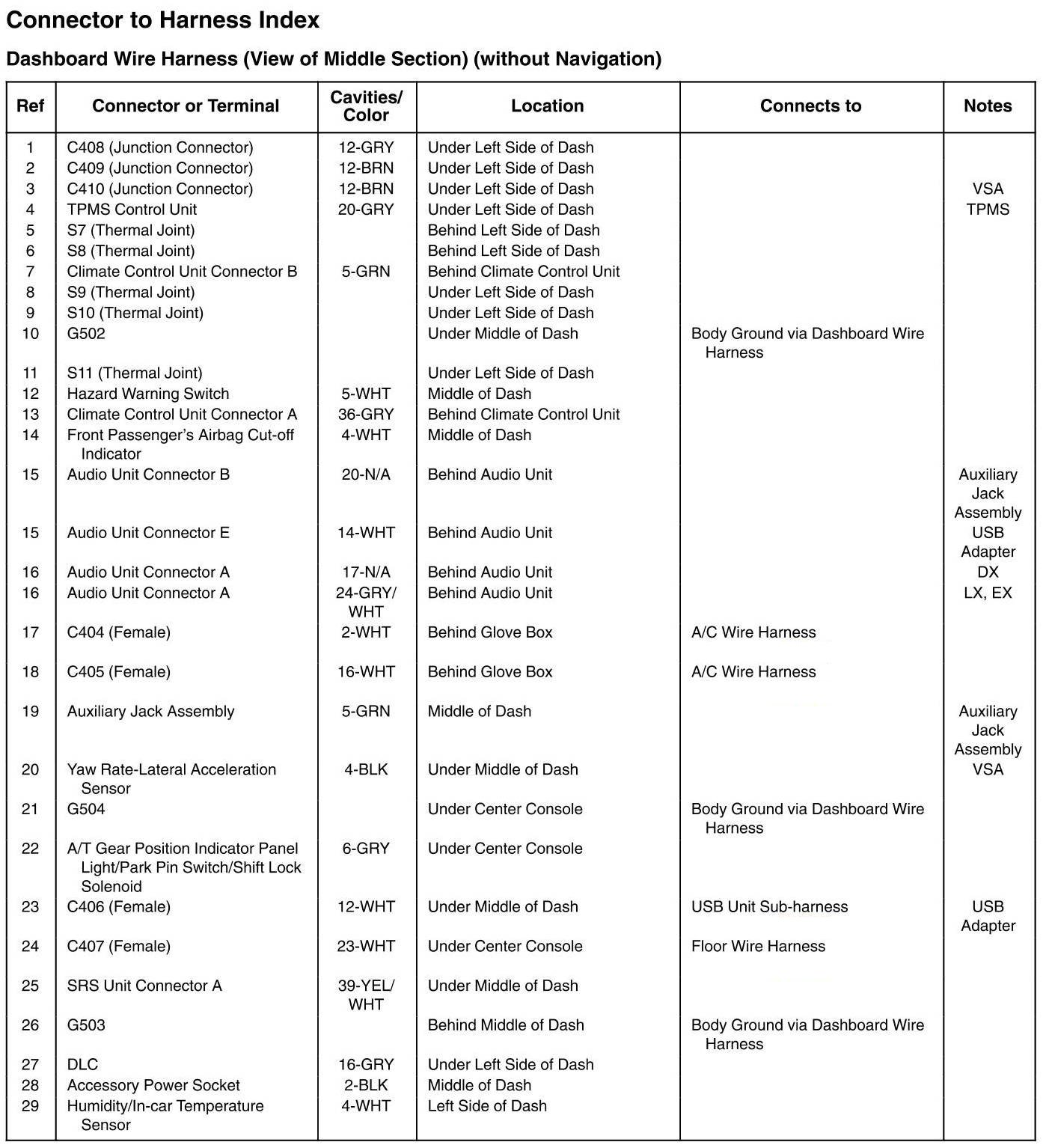

Dashboard Wire Harness (View Of Middle Section) Connector And Harness Locations (Without Navigation)
Dashboard Wire Harness (View Of Middle Section) Connector And Harness Locations (Without Navigation)
