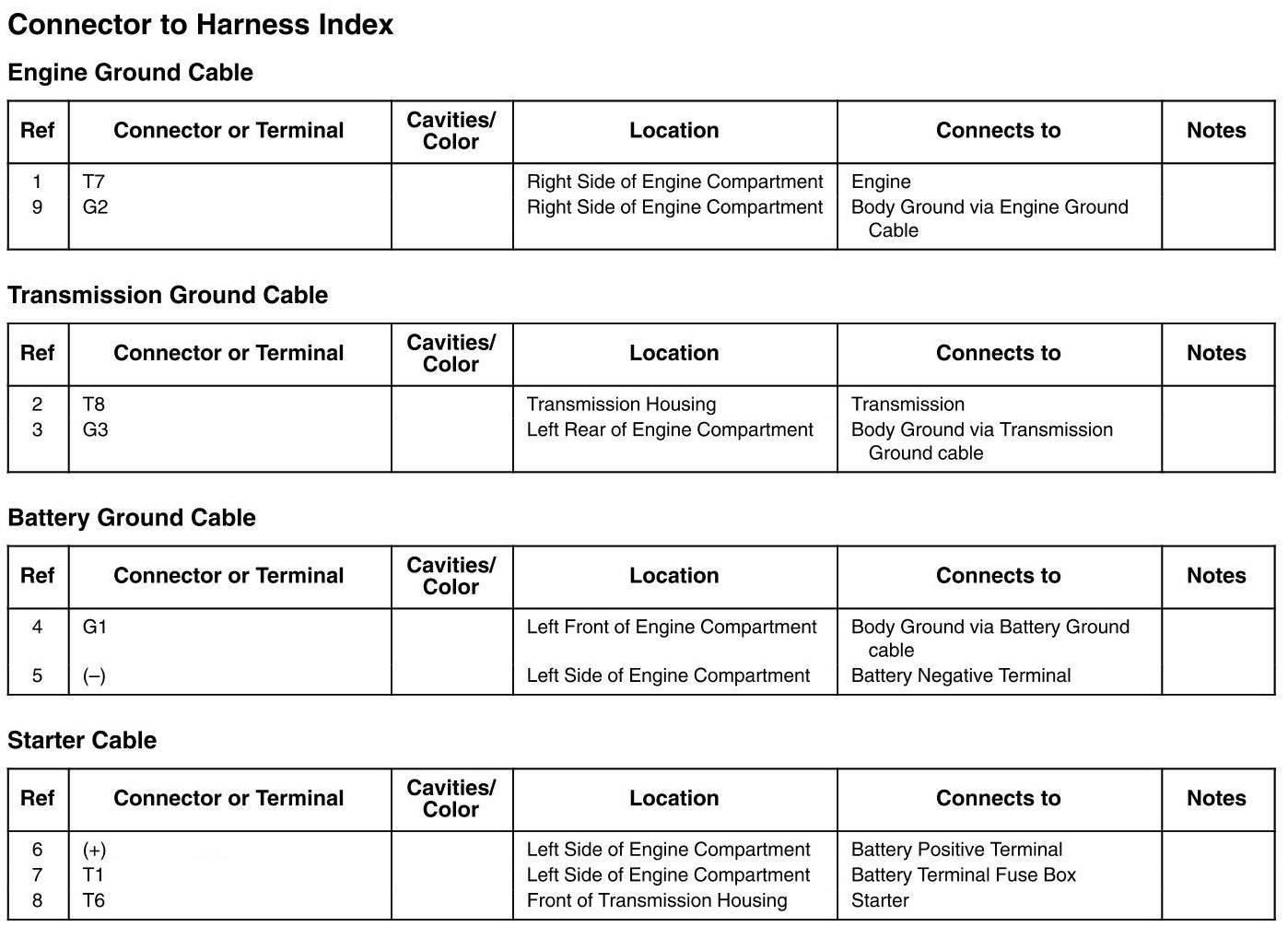

Engine Ground Cable, Transmission Ground Cable, Battery Ground Cable and Starter Cable Connector and Harness Locations
Engine Ground Cable, Transmission Ground Cable, Battery Ground Cable and Starter Cable Connector and Harness Locations
