Home >> Honda >> 2010 >> Insight L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Harness >> Floor Wire Harness (Right branch) Connector and Harness Locations

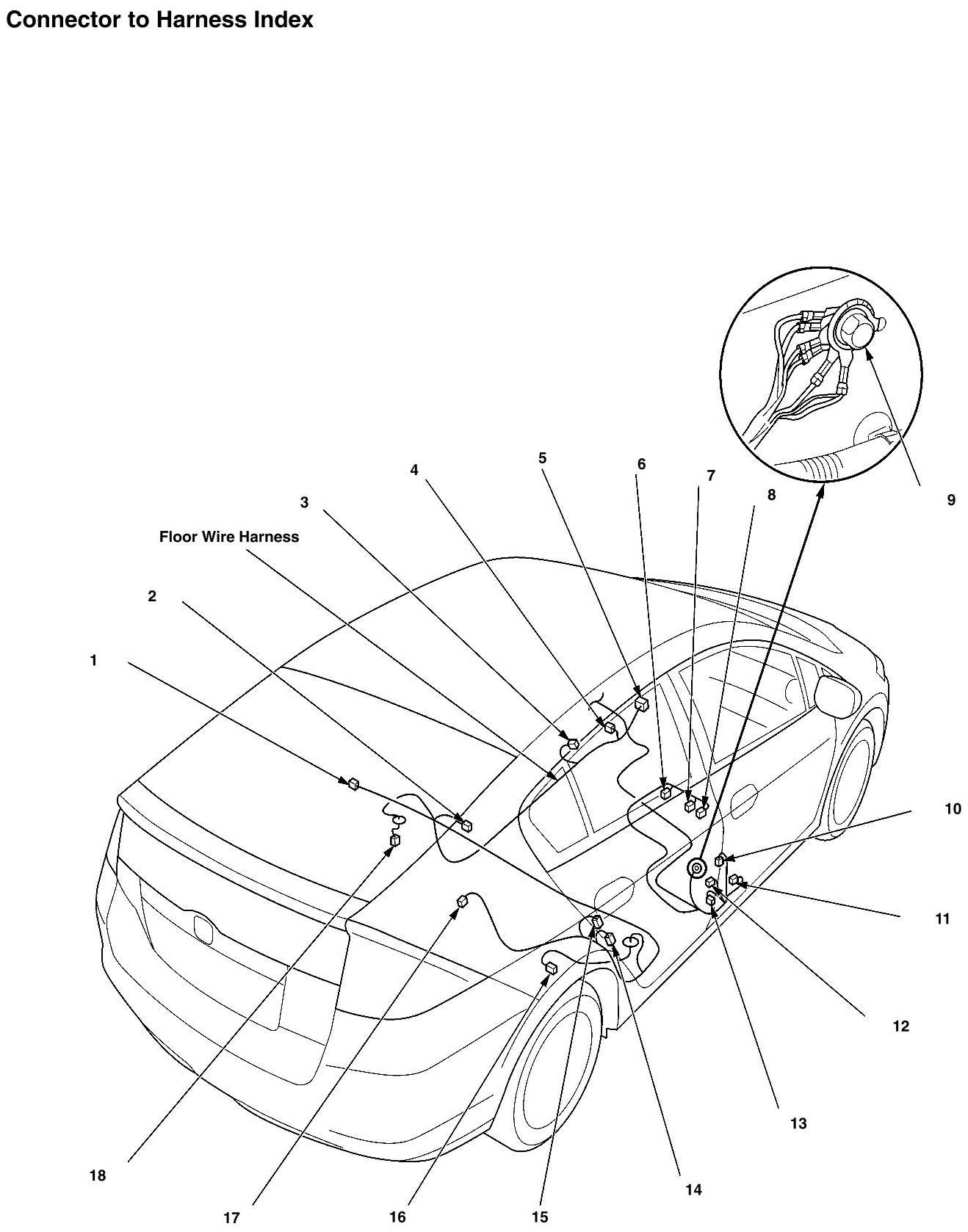

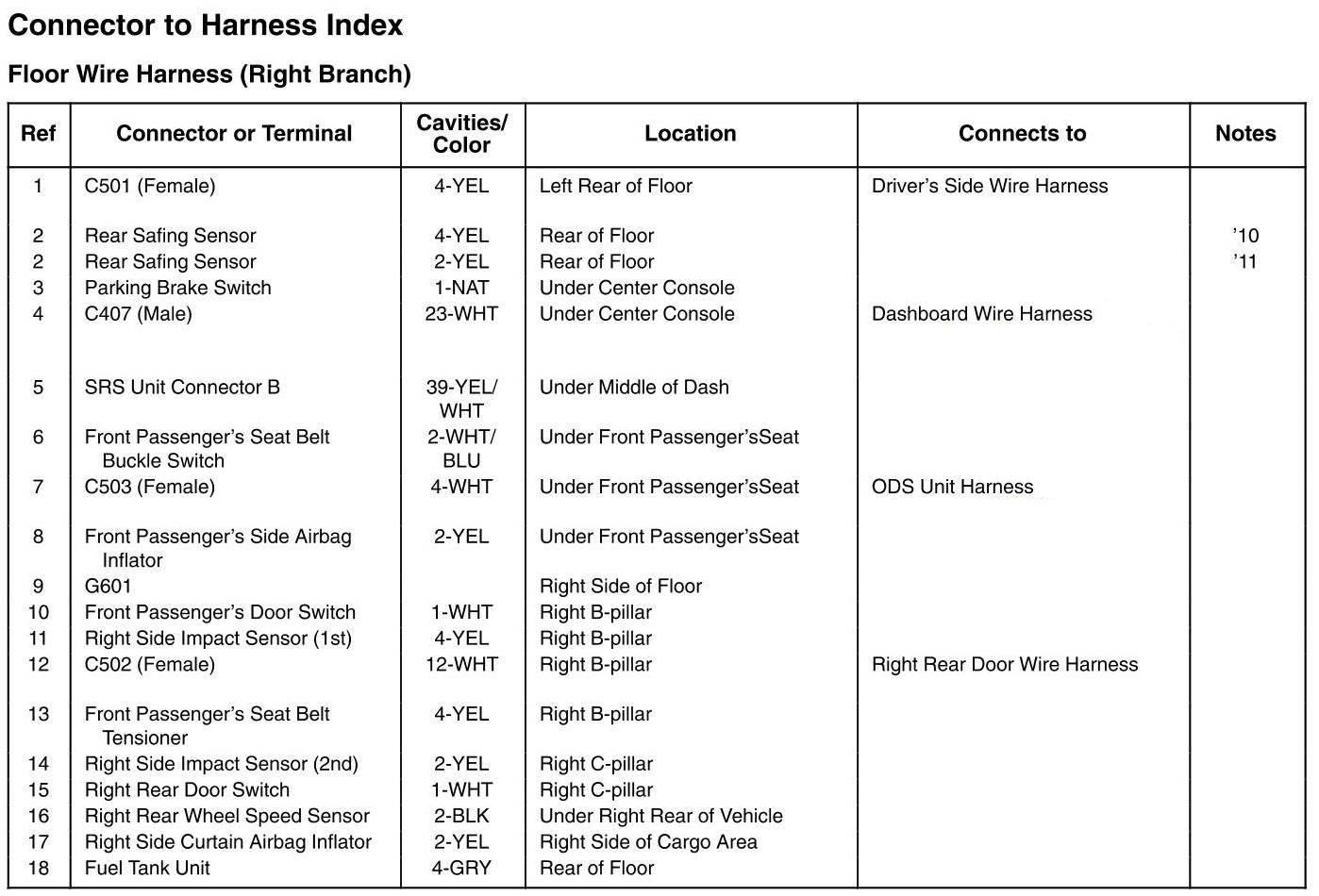

Floor Wire Harness (Right branch) Connector and Harness Locations
