Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2010
>>
Insight L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

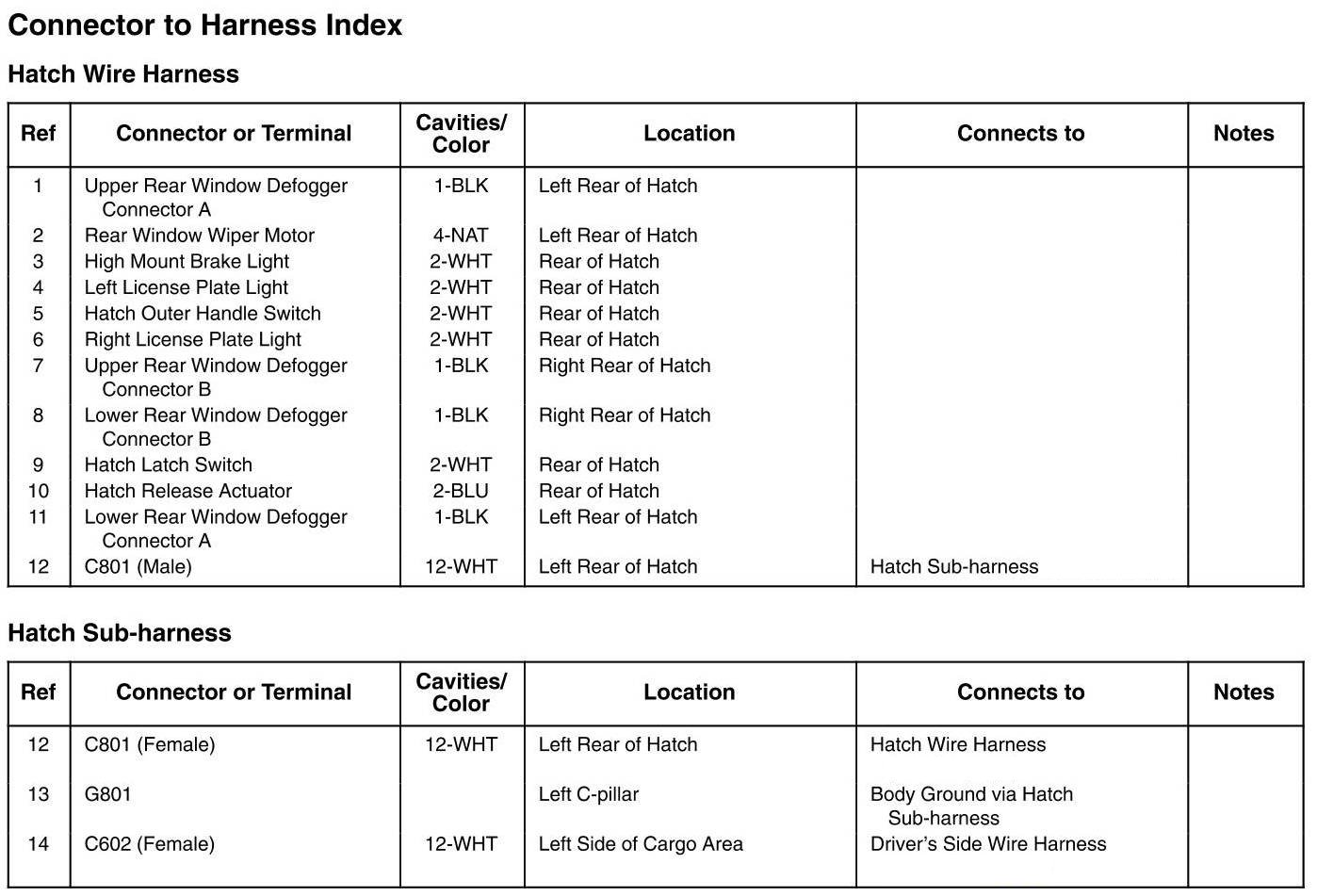

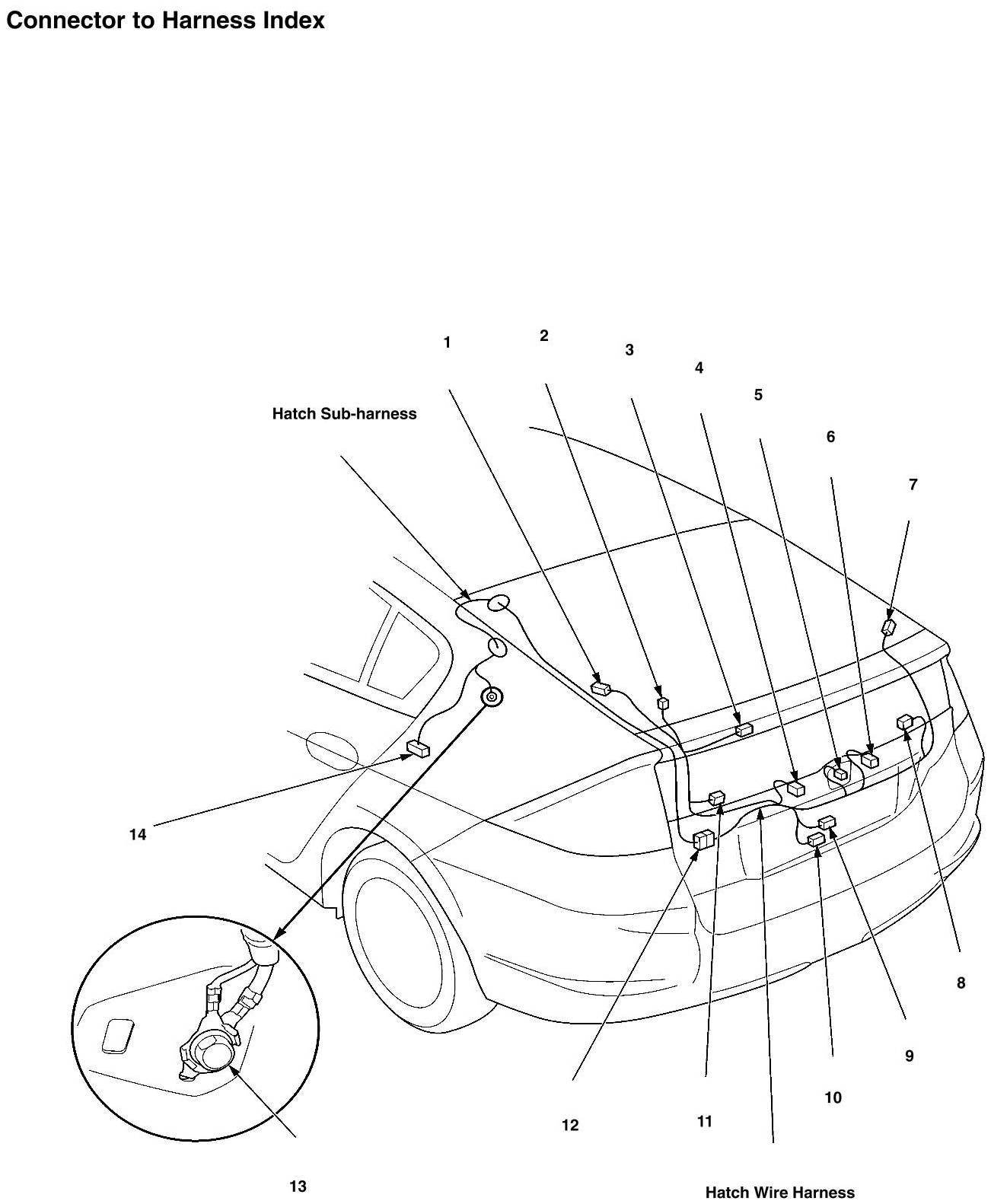

Hatch Wire Harness and Hatch Sub-Harness Connector and Harness Locations
Hatch Wire Harness and Hatch Sub-Harness Connector and Harness Locations
