PCU and IPU Wire Harnesses, DC-DC Converter Ground and IMA Motor Power Cables, Connector and Harness Locations

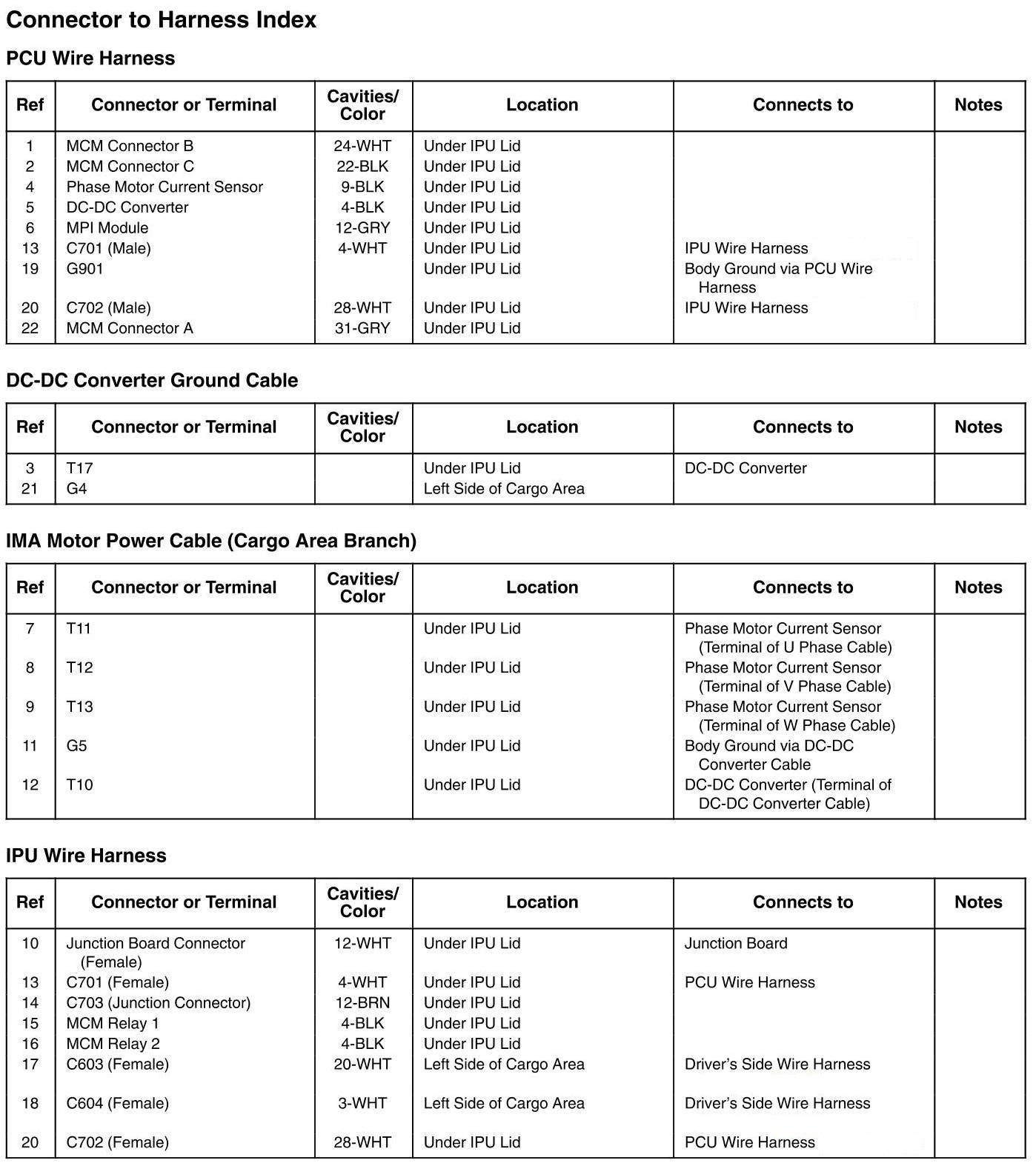

PCU Wire Harness, DC-DC Converter Ground Cable, IMA Motor Power Cable (Cargo Area branch), and IPU Wire Harness Connector and Harness Locations
