Powertrain Management

Fuel and Emissions System Description - Fuel and Emissions Systems Diagram

Fuel and Emissions Systems Diagram

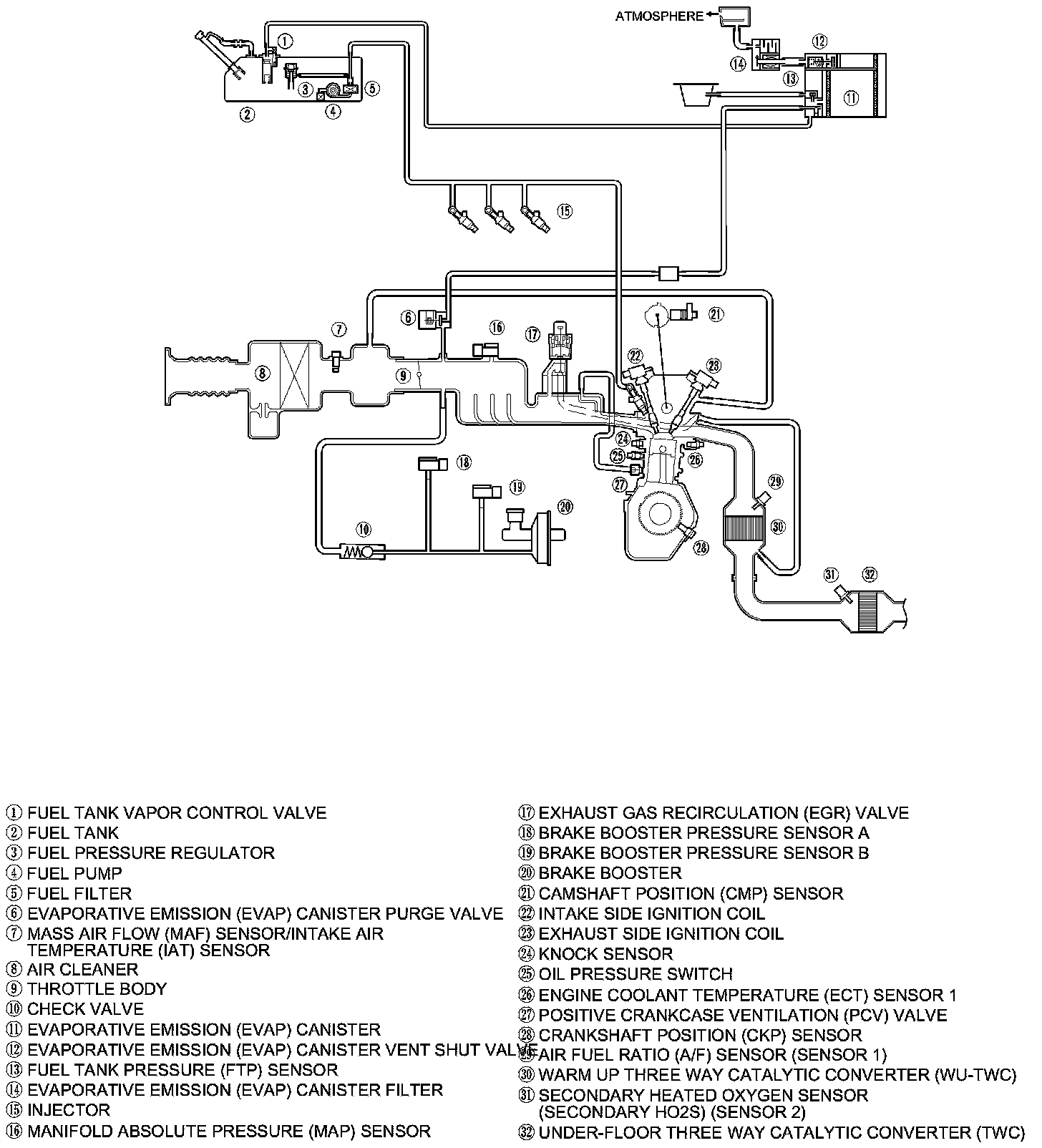

System Diagram

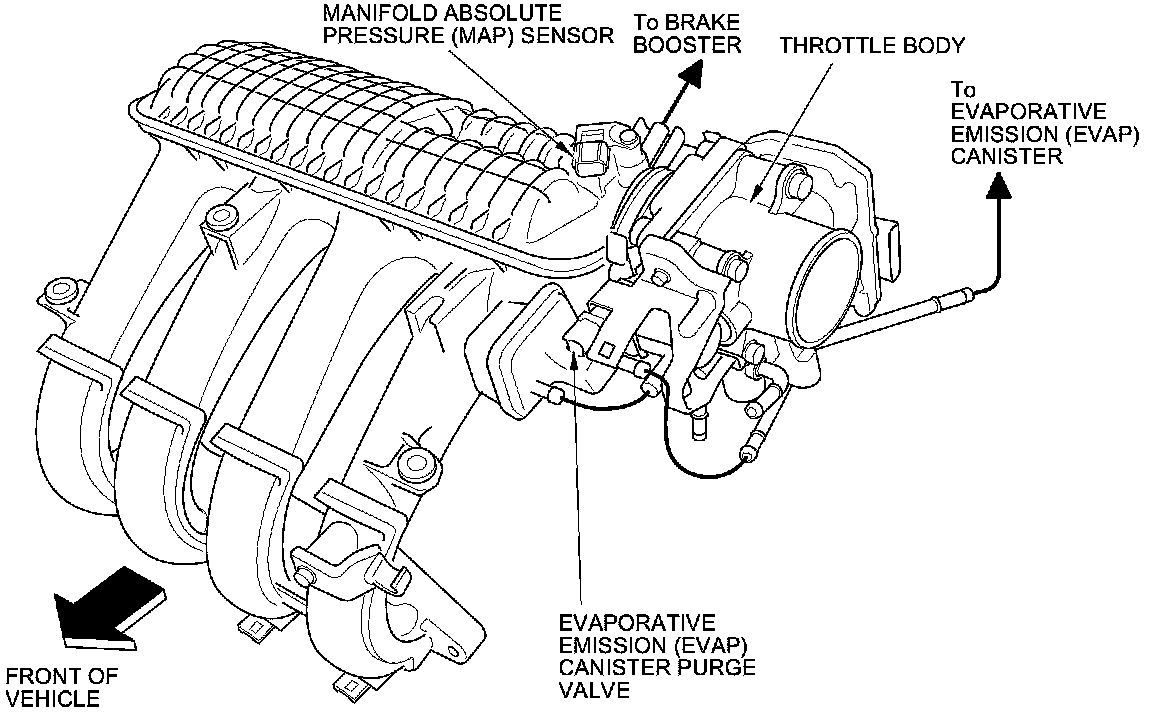

Vacuum Hose Routing
