Driver/Vehicle Information Display: Service and Repair

Multi-Information Switch Test/Replacement

NOTE: SRS components are located in this area. Review the SRS component locations Locations, precautions and procedures Service and Repair before doing repairs or servicing.

1. Remove the driver's airbag assembly Driver's Airbag Replacement.

2. Disconnect the cable reel subharness 20P connector (A) from the cable reel.






3. Measure the resistance between cable reel subharness 20P connector terminals No. 5 and No. 6 in each switch position according to the table.






4. Without cruise control: if the resistance is not as specified, replace the switch Overhaul. If the switch is OK, but the system does not operate, check for the cable reel.

With cruise control: if the resistance is not as specified, go to step 5. If the check is OK, but the system does not operate, check for the cable reel.

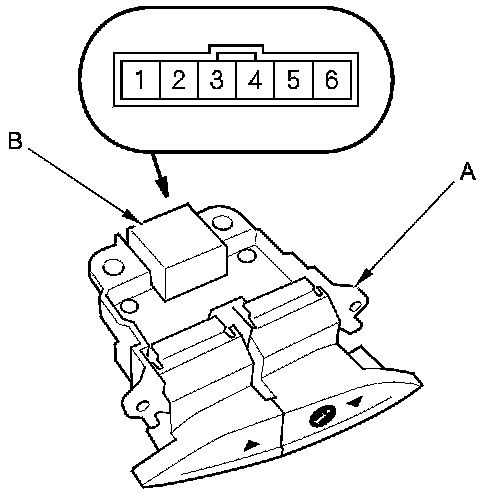

5. Remove the multi-information switch (A) Overhaul.






6. Measure the resistance between multi-information switch 6P connector (B) terminals No. 2 and No. 5 in each switch position according to the table.






7. If the resistance is not as specified, replace the switch. If the switch is OK, but the system does not operate, check for an open in the wire between the switch and the cable reel.
