Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2010
>>
Insight L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Relay And Control Unit Locations - Door And Rear
Relay And Control Unit Locations - Door And Rear
Relay and Control Unit Locations - Door and Rear

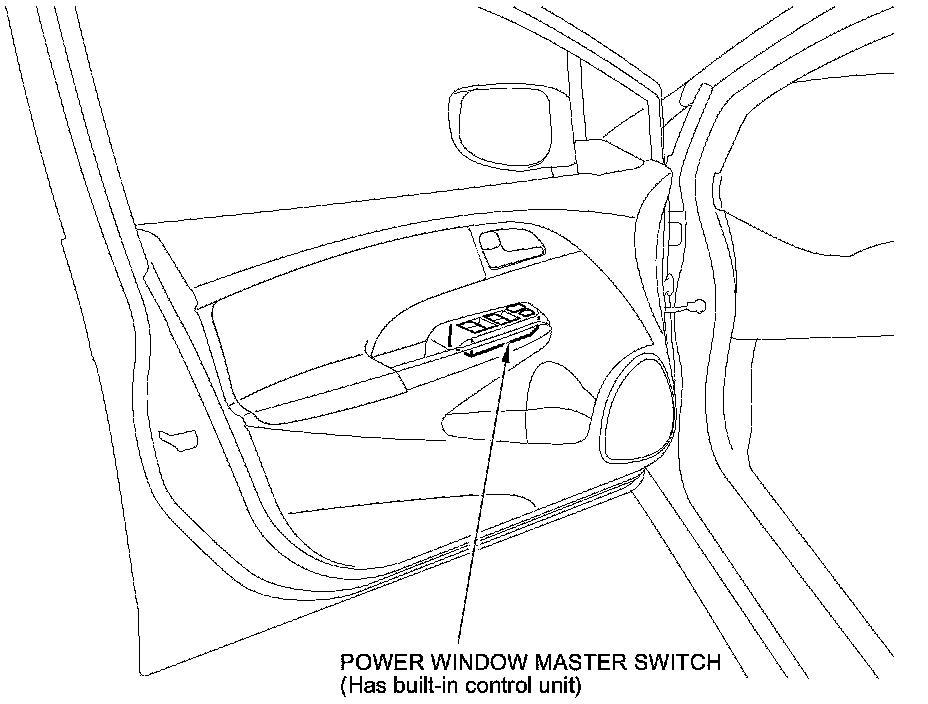

Driver's Door

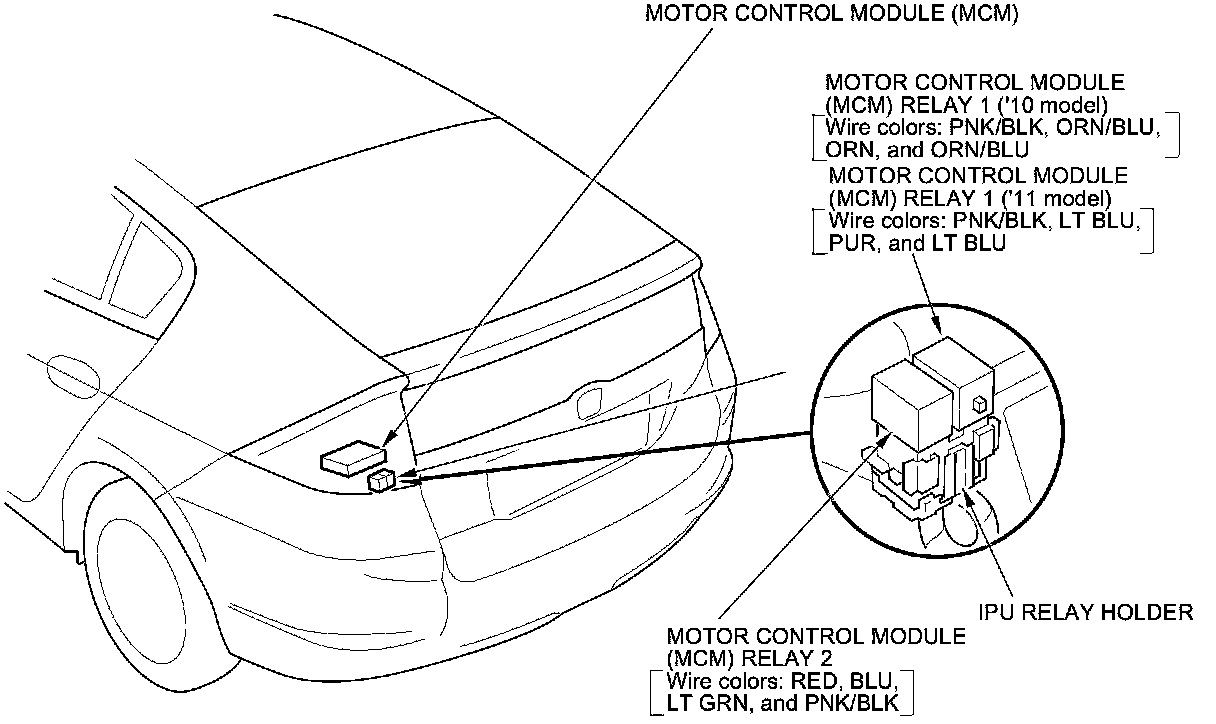

Rear
