Washer Fluid Level Switch Test (Canada)

Washer Fluid Level Switch Test

Canada models

1. Remove the front bumper Front Bumper Removal/Installation.

2. Remove the washer reservoir Service and Repair.

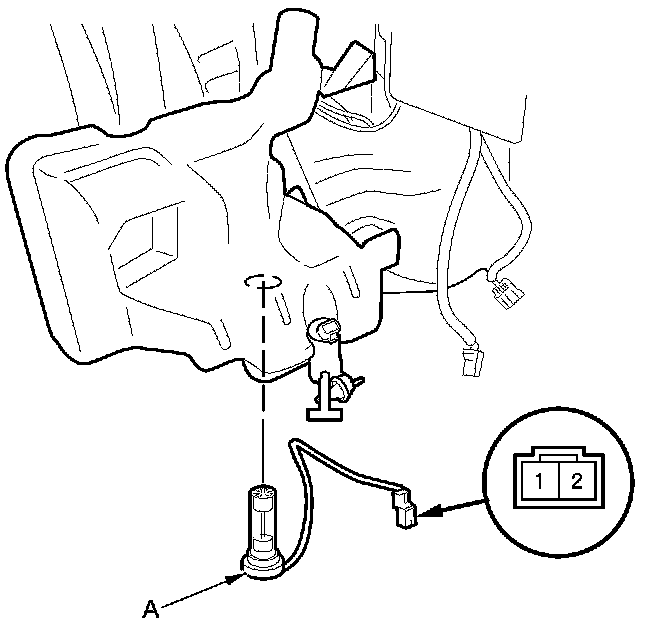

3. Remove the washer fluid level switch (A) from the washer reservoir.

NOTE: Fluid may flow out of the opening.





4. Check for continuity between terminals No. 1 and No. 2 in each float position.

- There should be continuity when the float is down.
- There should be no continuity when the float is up.

5. If the continuity is not as specified, replace the switch.
