B1779
DTC Troubleshooting: B1779
DTC B1779:
HandsFreeLink Steering Wheel Switch Failure
NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN system diagnosis test mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.
1. Connect the HDS to the DLC.
2. Clear the DTCs with the HDS.
3. Turn the ignition switch to LOCK (0), then start the vehicle, and turn the steering wheel back and forth several times.
4. Check for DTCs with the HDS.
Is DTC B1779 indicated?
YES -
Go to step 5.
NO -
Intermittent failure, the system is OK at this time.�
5. Turn the ignition switch to LOCK (0).
6. Do the HFL Switch Test HFL Switch Test.
Is the switch OK?
YES -
Go to step 7.
NO -
Replace the HFL-navigation voice control switch Voice Control Switch Replacement or HFL switch HFL Switch Removal/Installation.�
7. Disconnect the HandsFreeLink control unit 28P connector.
8. Disconnect the HFL-navigation voice control switch 5P connector or HFL switch 5P connector.
9. Turn the ignition switch to ON (II).
10. Measure the voltage between HFL-voice control switch 5P connector terminal No. 3 and body ground.
Is there voltage?
YES -
Repair a short to power in the BLU wire.�
NO -
Go to step 11.
11. Turn the ignition switch to LOCK (0).

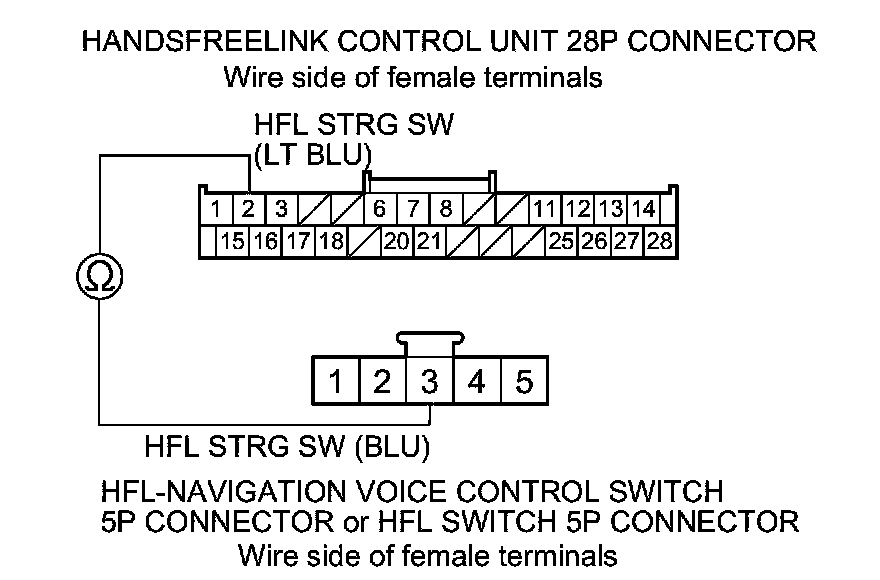

12. Check for continuity between HandsFreeLink control unit 28P connector terminal No. 2 and HFL-navigation voice control switch 5P connector or HFL switch 5P connector terminal No. 3.
Is there continuity?
YES -
Go to step 13.
NO -
Repair an open in the BLU wire between the switch, the cable reel, and the HandsFreeLink control unit.�
13. Turn the ignition switch to ON (II).
14. Measure the voltage between HandsFreeLink control unit 28P connector terminal No. 2 and body ground.
Is there voltage?
YES -
Repair a short to power in the wire between the HandsFreeLink control unit and the HFL-navigation voice control switch or HFL switch.�
NO -
Go to step 15.
15. Turn the ignition switch to LOCK (0).
16. Check for continuity between HFL-navigation voice control switch 5P connector or HFL switch 5P connector terminal No. 4 and body ground.
Is there continuity?
YES -
Replace the HandsFreeLink control unit Service and Repair.�
NO -
Repair an open in the wire between the HFL-voice control switch, the cable reel, and the audio unit.�
