Navigation System DTC Troubleshooting: 1701, 2608

DTC 1701:

R- Camera Error

DTC 2608:

R- Camera Diag

NOTE:

- Check the vehicle battery condition first Testing and Inspection.
- These navigation DTCs set when a communication error between the rearview camera and the navigation display (open or short) is detected.
- Before you troubleshoot, make sure to follow the General Troubleshooting Information Reading and Clearing Diagnostic Trouble Codes.

1. Turn the ignition switch to LOCK (0), then back to ON (II),

2. Go into the System Diagnostic Mode, and select the Self-Diagnosis Mode in the Select Diagnosis Items menu.

3. Check the System Links.

Is the R- camera icon red?

YES -

Go to step 4.

NO -

Intermittent failure, the system is OK at this time.�

4. Check for poor connection or loose terminal at the rearview camera 6P connector.

Are the connections OK?

YES -

Go to step 5.

NO -

Repair poor connection or loose terminal.�

5. Turn the ignition switch to LOCK (0).

6. Disconnect the rearview camera 6P connector.

7. Turn the ignition switch to ON (II).

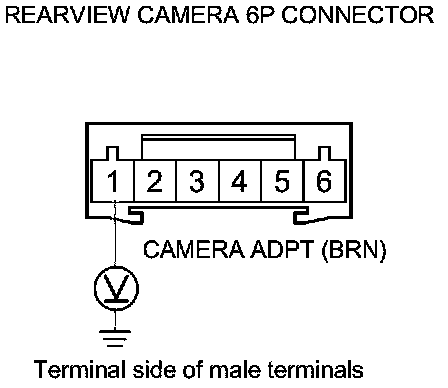

8. Measure the voltage between rearview camera 6P connector terminal No. 1 and body ground.





Is there about 3.0 V?

YES -

Replace the rearview camera Service and Repair.�

NO -

Go to step 9.

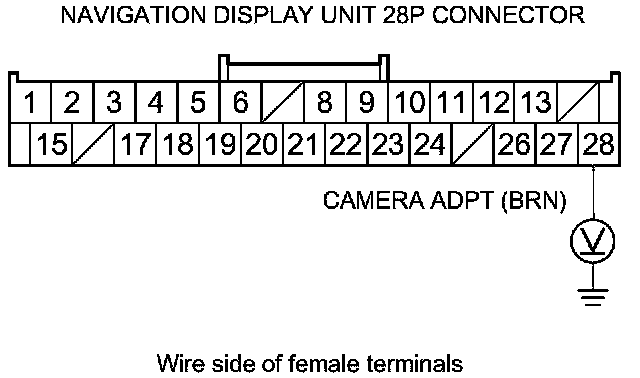

9. Measure the voltage between navigation display unit 28P connector terminal No. 28 and body ground.





Is there about 3.0 V?

YES -

Repair an open in the wire between the navigation display unit and the rearview camera.�

NO -

Replace the navigation display unit Service and Repair.�
