Audio Switch Panel Removal/Installation (With Navigation)

Audio Switch Panel Removal/Installation

With Navigation System

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the dashboard and related parts.
- Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.
- Do not work in a dusty or dirty place.
- Discharge static electricity from your body before and during the work.
- Do not touch the circuit board with your bare hands.
- Do not work with dirty hands.
- Be careful not no fold the flat plate cable.
- Do not touch the terminal connector of the flat plate cable with your bare hands. (If you have touched it, wipe it off thoroughly.)

1. Remove the audio unit Audio Unit Removal/Installation (With Navigation).

2. Remove the interface dial Service and Repair.

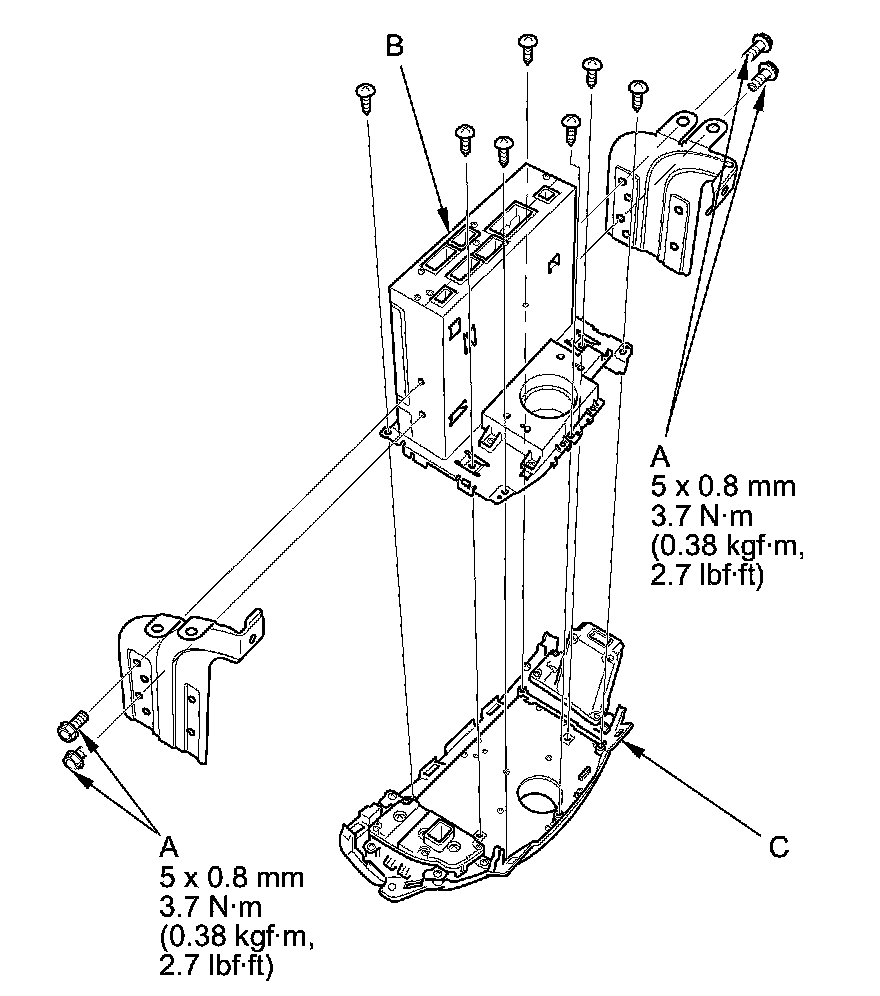

3. Remove the mounting screws and bolts (A) from the audio unit (B), then remove the audio unit from the audio switch panel (C).





4. Install the audio switch panel in the reverse order of removal.
