XM Receiver Removal/Installation

XM Receiver Removal/Installation

1. Open the trunk lid, and remove the right trunk side trim panel Interior Trim Removal/Installation - Trunk Area.

2. Disconnect the connectors (A) from the XM receiver (B).

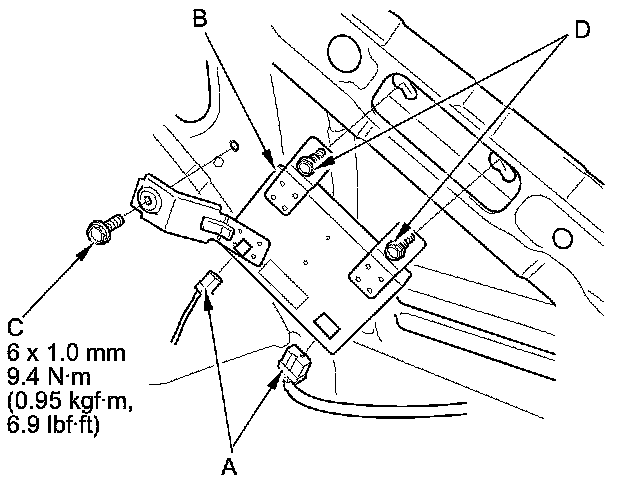

4-Door

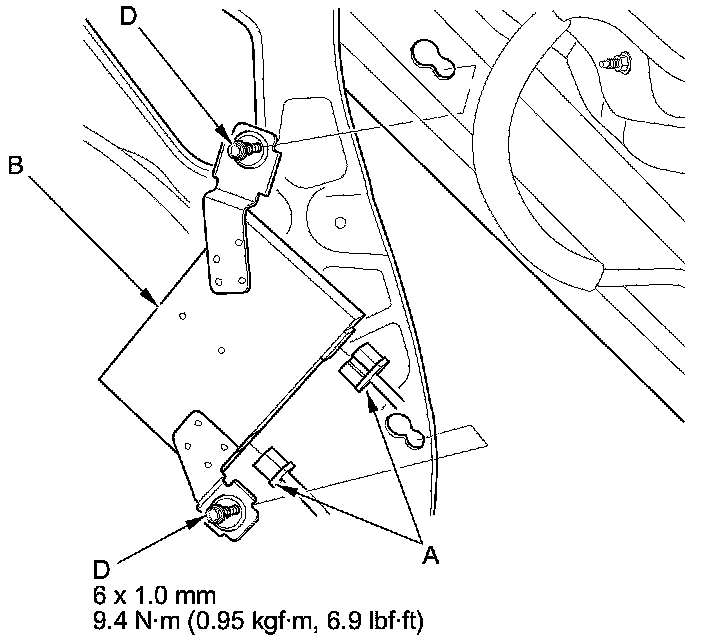

2-Door





3. Remove the mounting bolt (C) and loosen the mounting bolts (D), then remove the XM receiver.

4. Install the XM receiver in the reverse order of removal.
