Rearview Mirror Harness Cover Base Replacement (4-Door)

Rearview Mirror Harness Cover Base Replacement

4-door with Automatic Dimming Rearview Mirror

NOTE:

- Wear eye protection while cutting the glass adhesive with piano wire.
- Put on gloves to protect your hands.

1. Remove these items:

- Rearview mirror
- Headliner Service and Repair

2. Carefully cut through adhesive tape under the rearview mirror harness cover base using the piano wire, then remove the base.

3. Scrape off all of the original adhesive tape with a putty knife from the windshield. Clean the bonding surface on the inside face of the windshield with isopropyl alcohol. Make sure the bonding surface is kept free of water, oil and grease.

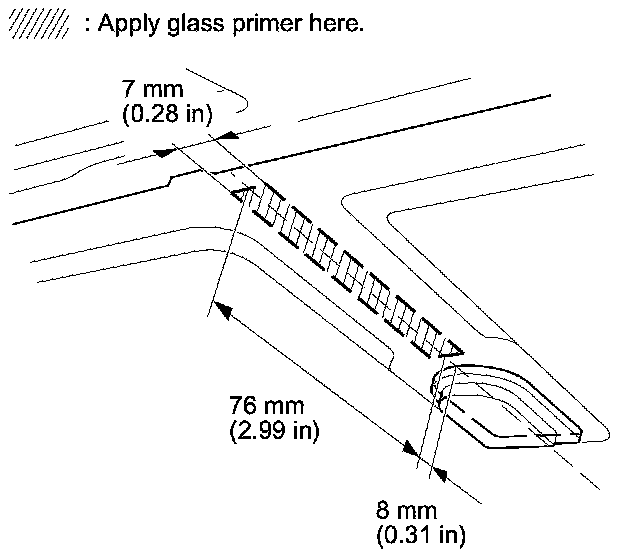

4. If you are reinstalling the original rearview mirror harness cover base (A), scrape off all of original adhesive tape from the base with a putty knife. Clean the base surface with isopropyl alcohol. Apply primer to the base as shown, and attach adhesive tape (B) to the base.










5. Before installing the rearview mirror harness cover base, apply glass primer to the area where the harness cover base will be applied to the inside face of the windshield. Let the primer dry at least 10 minutes, then attach the mirror to the windshield within 12 hours.






6. Attach the rearview mirror harness cover base (A) with adhesive tape (B) to the inside face of the windshield as shown, then press adhesive areas into place securely.





7. Reinstall all remaining removed parts.
