Rear Seat Armrest Replacement (4-Door)

Rear Seat Armrest Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

4-door

NOTE:

- Take care not to tear or damage the seat covers.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Fold down the seat-back.

2. Remove the trunk pass-through lid Trunk Pass-Through Lid Replacement (4-door).

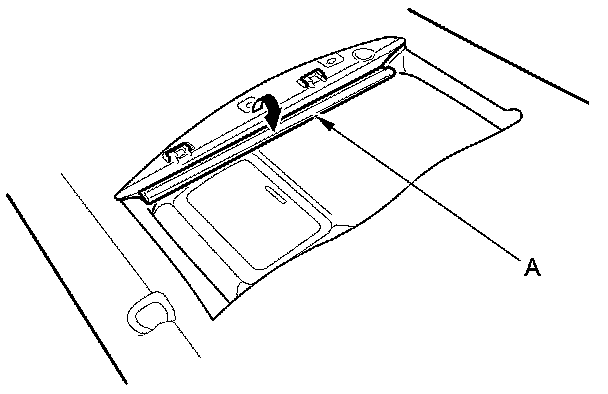

3. Release the hook strip (A), then turn over the seat-back cover as needed.






4. Remove the clip (A) from the armrest pivot shaft (B).

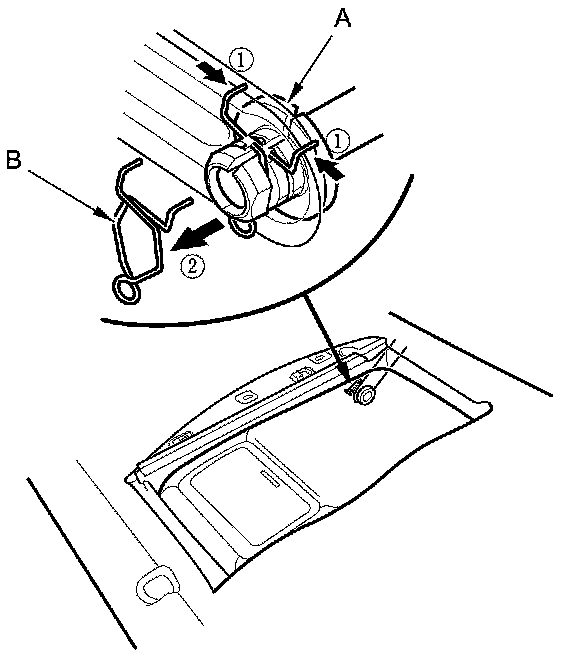

5. Remove the armrest clip (B) from the slit in the collar A by pinching the clip.






6. Slide the armrest (A) toward the driver's side, and release the pivot shaft (B) from the collar (C).






7. Release the pivot shaft (A) from the collar (B), then remove the armrest (C).

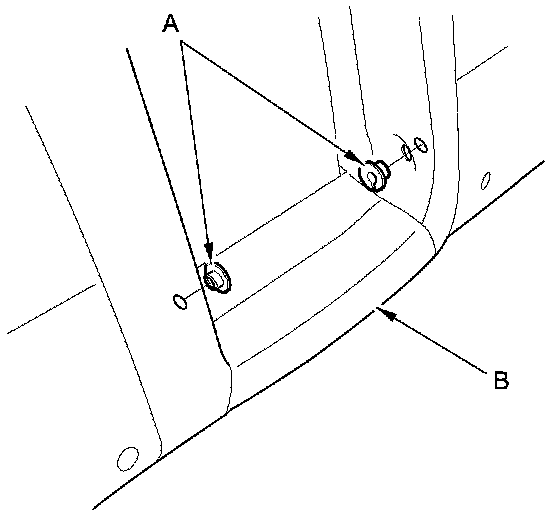

8. Remove the collars (A) from the seat-back (B).





9. Install the armrest in the reverse order of removal, and to prevent wrinkles when installing a seat-back cover, make sure the material is stretched evenly over the pad before securing the hook strips.
