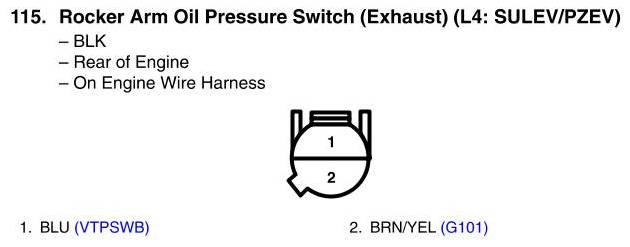

View 115 - Rocker Arm Oil Pressure Switch (Exhaust) Connector View (L4: SULEV/PZEV)
View 115 - Rocker Arm Oil Pressure Switch (Exhaust) Connector View (L4: SULEV/PZEV)
